Tri-Rated Single Core Cable – 4mm – Earth - Per Metre

Tri-Rated Single Core Cable – 4mm – Earth – Per Metre

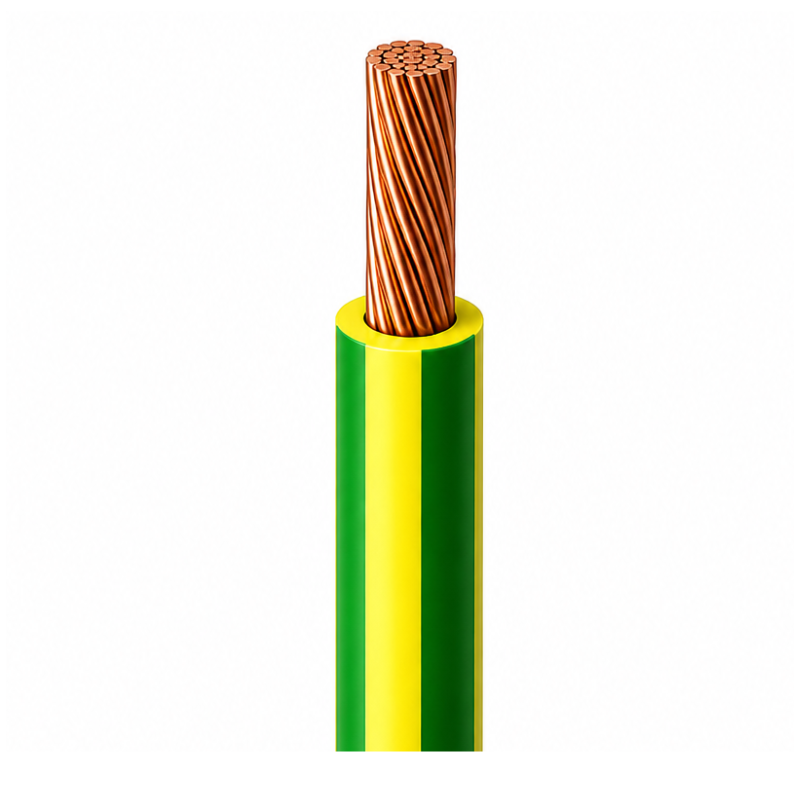

The Tri-Rated Single Core Cable – 4mm – Earth – Per Metre is a high-performance flexible panel wire designed for use in switchgear, control panels, relay systems, instrumentation equipment and electrical installations where high temperature resistance and reliable performance are essential.

Manufactured with a Class 5 flexible copper conductor and insulated with high-quality PVC, this tri-rated cable meets the requirements of BS 6231 Type CK, UL 1015 and CSA C22.2 No.210, making it suitable for both UK and international applications. The green/yellow earth insulation provides clear identification in accordance with standard wiring practices.

With a voltage rating of up to 0.6/1kV and an operating temperature of -15°C to +105°C (UL/CSA) or -15°C to +90°C (BS 6231), this cable provides dependable performance in demanding electrical environments. Sold per metre, it can be ordered in the exact quantity required for your installation.

Key Features:

• 4mm² tri-rated single core cable

• Sold per metre

• Green/Yellow earth insulation

• Class 5 flexible copper conductor

• Heat-resistant PVC insulation

• Flame-retardant construction

• BS 6231, UL 1015 and CSA approved

• Suitable for switchgear and control panels

• Excellent flexibility for panel wiring

• Manufactured to IEC/EN 60228 conductor standards

Technical Specifications:

• Product Type: Tri-Rated Single Core Cable

• Conductor Size: 4mm²

• Cable Colour: Green/Yellow (Earth)

• Supply Length: Per Metre

• Conductor: Class 5 Flexible Copper

• Insulation: PVC (Polyvinyl Chloride)

• Voltage Rating:

  • UL / CSA / BS 6231: 0.6/1kV

  • BS EN 50525-2-31 (H07V2-K): 450/750V

• Temperature Rating:

  • UL / CSA: -15°C to +105°C

  • BS 6231: -15°C to +90°C

  • Fixed Installation Minimum: -40°C

• Minimum Bending Radius: 6 × Overall Diameter

• Approximate Overall Diameter: 4.35mm

• Nominal Weight: 48kg/km

• Maximum Conductor Resistance (20°C): 4.95Ω/km

• Current Rating (Peak): 41A

• Voltage Drop: 5.7mV/A/m

Standards

• BS 6231 Type CK

• BS EN 50525-2-31 (H07V2-K)

• UL Subject 758 (UL1015)

• CSA C22.2 No.210

• IEC/EN 60228

• IEC/EN 60332-1-2 Flame Retardant

• RoHS Compliant

• REACH Compliant

• CPR Compliant

Applications:

• Electrical control panels

• Switchgear

• Relay panels

• Instrumentation systems

• Motor starters

• Control cabinets

• Panel building

• Industrial automation

• Electrical equipment wiring

• Telecommunications equipment
