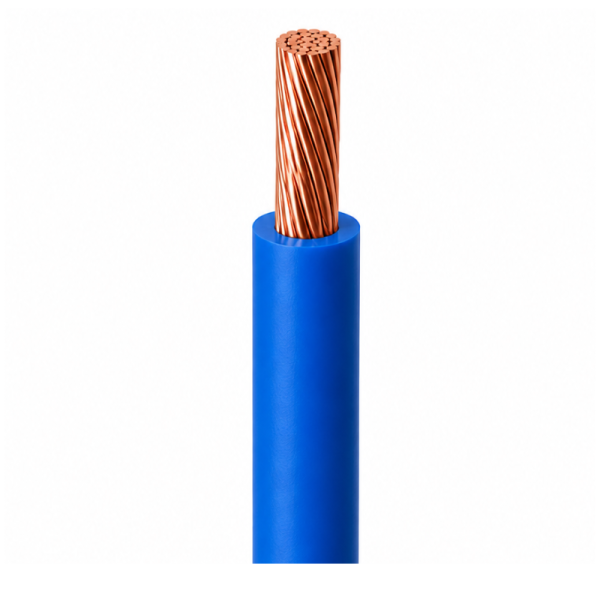

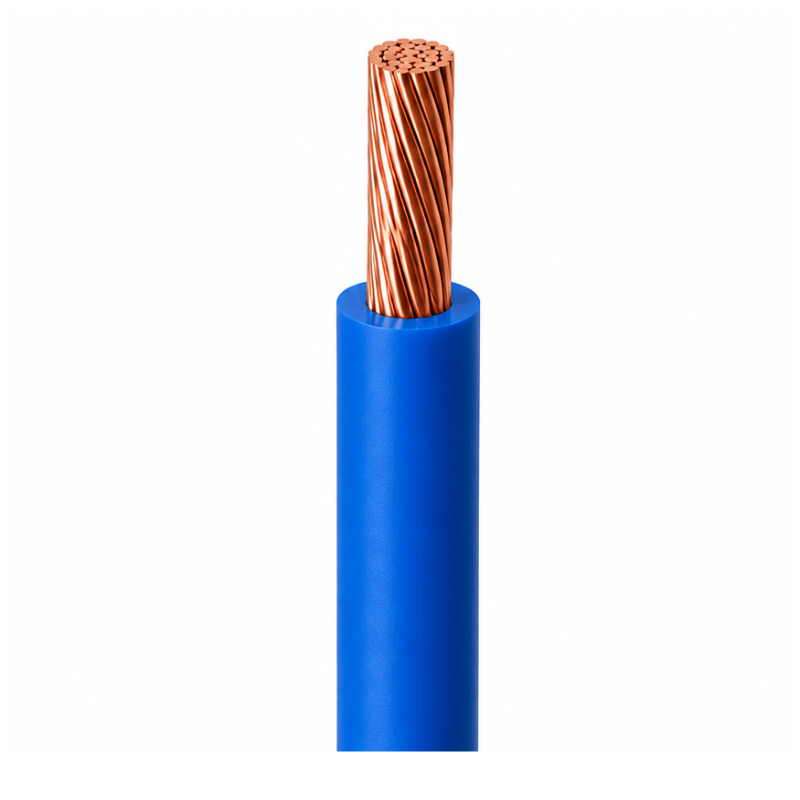

Tri-Rated Single Core Cable – 2.5mm – Blue - Per Metre

Tri-Rated Single Core Cable – 2.5mm² – Blue – Per Metre

The Tri-Rated Single Core Cable – 2.5mm² – Blue – Per Metre is a high-performance flexible panel wire designed for use in switchgear, control panels, instrumentation equipment and power distribution systems.

Manufactured with a Class 5 flexible copper conductor and insulated with heat-resistant, flame-retardant PVC, this tri-rated cable delivers excellent electrical performance while offering superior flexibility for installation within confined enclosures and electrical equipment.

Commonly referred to as BS 6231 cable, H07V2-K or panel wire, it is approved to multiple international standards, making it suitable for use in equipment manufactured for UK, European and North American markets. Rated at 450/750V under BS EN 50525-2-31 (H07V2-K) and 0.6/1kV under BS 6231, UL and CSA standards, it is ideal for demanding industrial, telecommunications and control applications.

Supplied per metre, this blue cable allows installers to order the exact quantity required, reducing waste and improving installation efficiency.

Key Features:

• 2.5mm² flexible single core cable

• Blue insulation

• Supplied per metre

• Class 5 flexible copper conductor

• Heat-resistant PVC insulation

• Flame-retardant construction

• Suitable for switchgear and control panels

• Also known as BS 6231, H07V2-K and panel wire

• Excellent flexibility for confined installations

• Manufactured to international standards

Technical Specifications:

• Product Type: Tri-Rated Single Core Cable

• Conductor Size: 2.5mm²

• Colour: Blue

• Supply Length: Per Metre

• Conductor: Class 5 Flexible Copper

• Insulation: PVC (Polyvinyl Chloride)

• UL Style: 1015

Voltage Rating

• BS 6231: 0.6/1kV

• UL / CSA: 0.6/1kV

• BS EN 50525-2-31 (H07V2-K): 450/750V

Temperature Rating

• UL / CSA: -15°C to +105°C

• BS 6231: -15°C to +90°C

• Fixed Installation: Down to -40°C

Minimum Bending Radius

• 6 x Overall Cable Diameter

Standards

• BS EN 50525-2-31 (H07V2-K)

• BS 6231 Type CK

• UL Subject 758 (Style 1015)

• CSA C22.2 No. 210

• IEC/EN 60228

• Flame Retardant to IEC/EN 60332-1-2

Applications:

• Switchgear panels

• Electrical control panels

• Instrumentation systems

• Relay panels

• Power distribution equipment

• Motor starters

• Industrial control systems

• Telecommunications equipment

• Rectifier equipment

• General panel wiring
