Telenco Air Blown Fibre Assembly (ABF) UG 1F SM Pre-Terminated (Dia) 1.2mm LC/APC – LC/APC-Ferrule – 75m

Telenco Air Blown Fibre Assembly (ABF) – UG – 1F SM – 1.2mm – LC/APC to LC/APC Ferrule – 75m

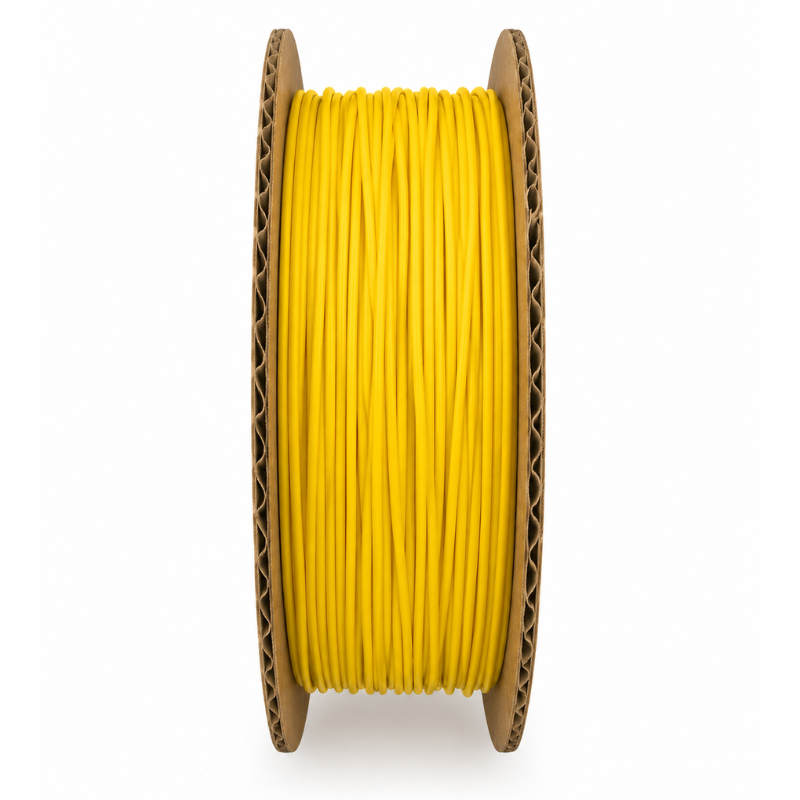

The Telenco Air Blown Fibre Assembly (ABF) is a pre-connectorised single-mode fibre solution designed for installation through compatible microduct infrastructure. This 75m underground (UG) assembly features a compact 1.2mm nominal outer diameter, making it suitable for fibre access and telecommunications network deployments where efficient installation through microduct is required.

The smooth-sheath ABF construction uses a UV-curable acrylate resin coating with an HDPE outer sheath. Its compact construction provides the flexibility and low profile required for blown fibre installation while protecting the optical fibre during deployment.

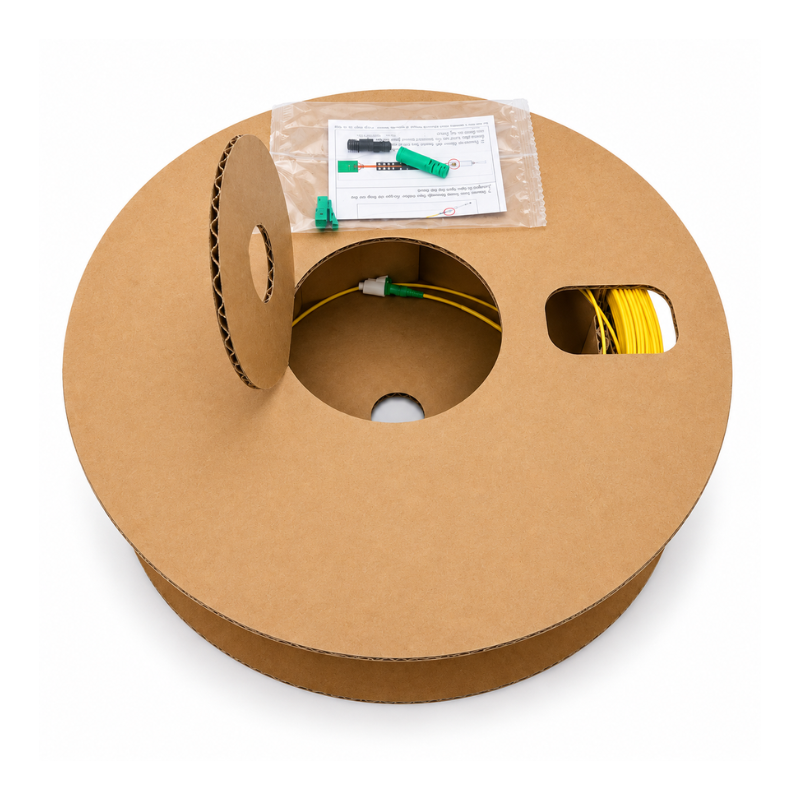

This single-fibre assembly is supplied in a pre-terminated LC/APC to LC/APC ferrule configuration. The protected ferrule arrangement at the blowing end enables the pre-terminated fibre to pass through compatible microduct, reducing the requirement for field connectorisation once the fibre has been installed.

The LC/APC connector configuration provides low insertion loss and high return loss performance, supporting dependable optical connectivity across FTTH, FTTx and other fibre access network applications.

Key Features:

• Pre-terminated Air Blown Fibre assembly

• 1-fibre single-mode configuration

• 75m assembly length

• Nominal 1.2mm outer diameter

• Smooth-sheath ABF construction

• LC/APC connector configuration

• LC/APC ferrule arrangement at blowing end

• Designed for installation through compatible microduct

• HDPE outer sheath

• UV-curable acrylate resin coating

• Pre-connectorised design reduces field connectorisation

• Grade B connector insertion loss performance

• APC return loss ≥60dB

• Compact construction for fibre access networks

Technical Specifications:

• Brand: Telenco

• Product Type: Pre-Terminated Air Blown Fibre Assembly

• Installation Type: UG

• Fibre Count: 1F

• Fibre Type: Single Mode (SM)

• Length: 75m

• Nominal Outer Diameter: 1.2 ± 0.3mm

• Outer Sheath: HDPE

• Coating Material: UV-Curable Acrylate Resin

• Connector: LC/APC

• Blowing End: LC/APC Ferrule

• Connector Insertion Loss: ≤0.12dB mean

• Maximum Connector Insertion Loss: ≤0.25dB for ≥97% of connections

• APC Return Loss: ≥60dB

• Minimum Handling Bend Radius: 40mm

• Operating Temperature: -40°C to +60°C

• Storage Temperature: -40°C to +70°C

Applications:

• Underground fibre network deployment

• Air blown fibre installations

• Microduct fibre networks

• Fibre access networks

• FTTH and FTTx infrastructure

• Telecommunications networks

• Fibre network extensions

• Pre-connectorised fibre deployments
