Telenco Air Blown Fibre Assembly (ABF) UG 1F SM Pre-Terminated (Dia) 1.2mm LC/APC – LC/APC-Ferrule – 50m

Telenco Air Blown Fibre Assembly (ABF) – UG – 1F SM – 1.2mm – LC/APC to LC/APC Ferrule – 50m

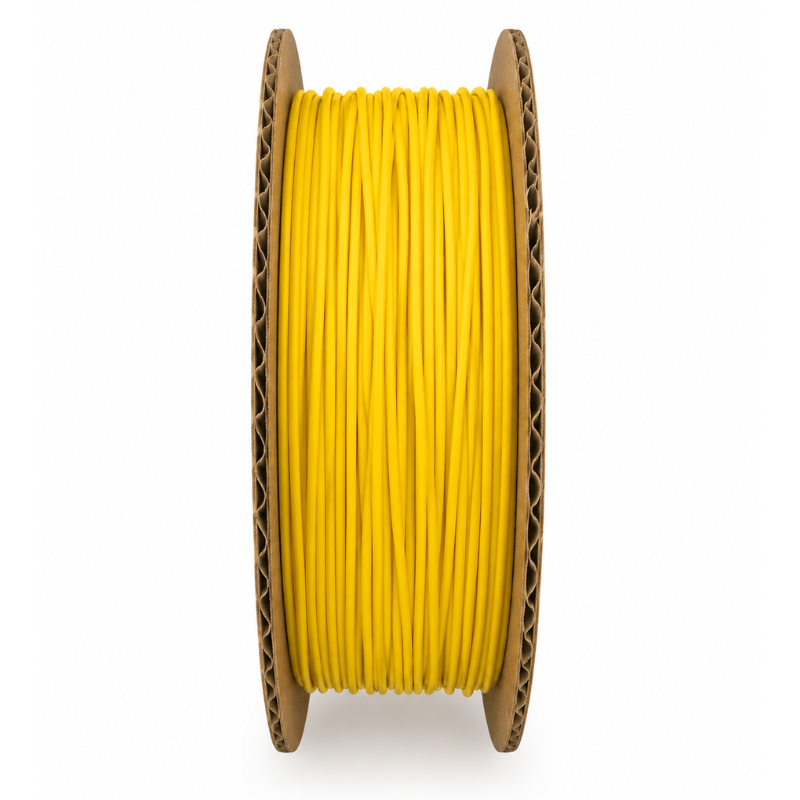

The Telenco Air Blown Fibre Assembly (ABF) is a pre-connectorised single-mode fibre solution designed for installation through compatible microduct infrastructure. This 50m underground (UG) assembly features a compact 1.2mm nominal outer diameter, providing a lightweight solution for fibre access and telecommunications network deployment.

The smooth-sheath ABF construction uses a UV-curable acrylate resin coating with an HDPE outer sheath. The supplied specification defines a nominal cable diameter of 1.2 ± 0.3mm, providing a compact profile suited to blown fibre applications.

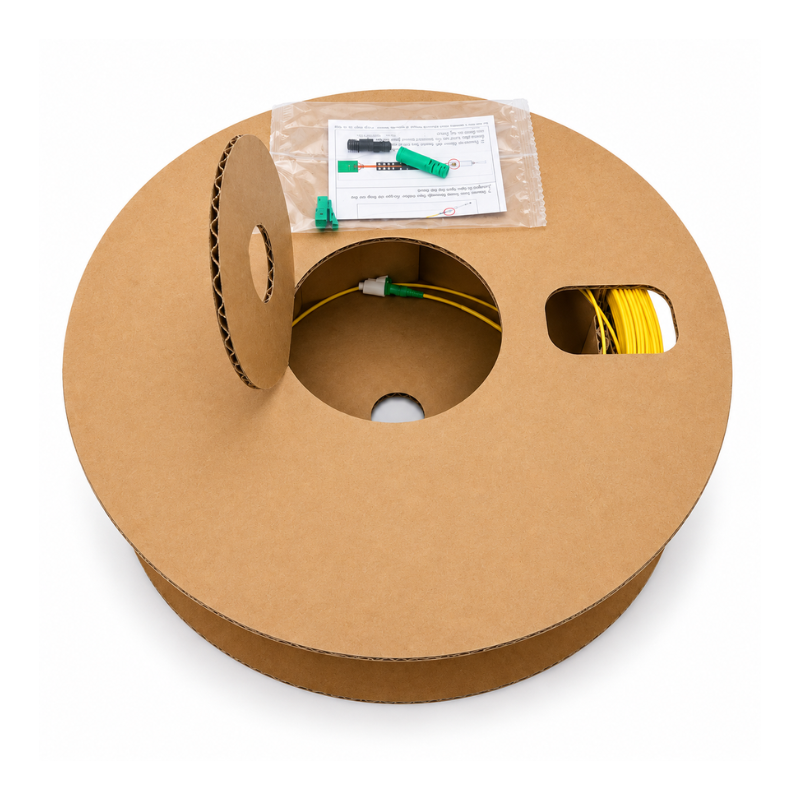

This single-fibre assembly is supplied in a pre-terminated LC/APC to LC/APC ferrule configuration. The protected ferrule arrangement at the blowing end enables the pre-terminated fibre to be installed through compatible microduct while reducing the requirement for field connectorisation after installation.

The LC/APC connector specification provides Grade B insertion loss performance, with a mean insertion loss of ≤0.12dB and ≤0.25dB maximum for at least 97% of connections. APC return loss is specified at ≥60dB, supporting dependable optical performance.

Key Features:

• Pre-terminated Air Blown Fibre assembly

• 1-fibre single-mode configuration

• 50m assembly length

• Nominal 1.2mm outer diameter

• Smooth-sheath ABF construction

• LC/APC connector configuration

• LC/APC ferrule arrangement at blowing end

• Designed for installation through compatible microduct

• HDPE outer sheath

• UV-curable acrylate resin coating

• Pre-connectorised design reduces field connectorisation

• Grade B connector insertion loss performance

• APC return loss ≥60dB

• Compact construction for fibre access networks

Technical Specifications:

• Brand: Telenco

• Product Type: Pre-Terminated Air Blown Fibre Assembly

• Installation Type: UG

• Fibre Count: 1F

• Fibre Type: Single Mode (SM)

• Length: 50m

• Nominal Outer Diameter: 1.2 ± 0.3mm

• Outer Sheath: HDPE

• Coating Material: UV-Curable Acrylate Resin

• Connector: LC/APC

• Blowing End: LC/APC Ferrule

• Connector Insertion Loss: ≤0.12dB mean

• Maximum Connector Insertion Loss: ≤0.25dB for ≥97% of connections

• APC Return Loss: ≥60dB

• Minimum Handling Bend Radius: 40mm

• Operating Temperature: -40°C to +60°C

• Storage Temperature: -40°C to +70°C

The smooth-sheath ABF construction has a specified minimum handling bend radius of 40mm. The supplied specification defines operating temperature limits of -40°C to +60°C and storage limits of -40°C to +70°C.

Applications:

• Underground fibre network deployment

• Air blown fibre installations

• Microduct fibre networks

• Fibre access networks

• FTTH and FTTx infrastructure

• Telecommunications networks

• Fibre network extensions

• Pre-connectorised fibre deployments
