Telenco Air Blown Fibre Assembly (ABF) UG 1F SM Pre-Terminated (Dia) 1.2mm LC/APC – LC/APC-Ferrule – 350m

Telenco Air Blown Fibre Assembly (ABF) – UG – 1F SM – 1.2mm – LC/APC to LC/APC Ferrule – 350m

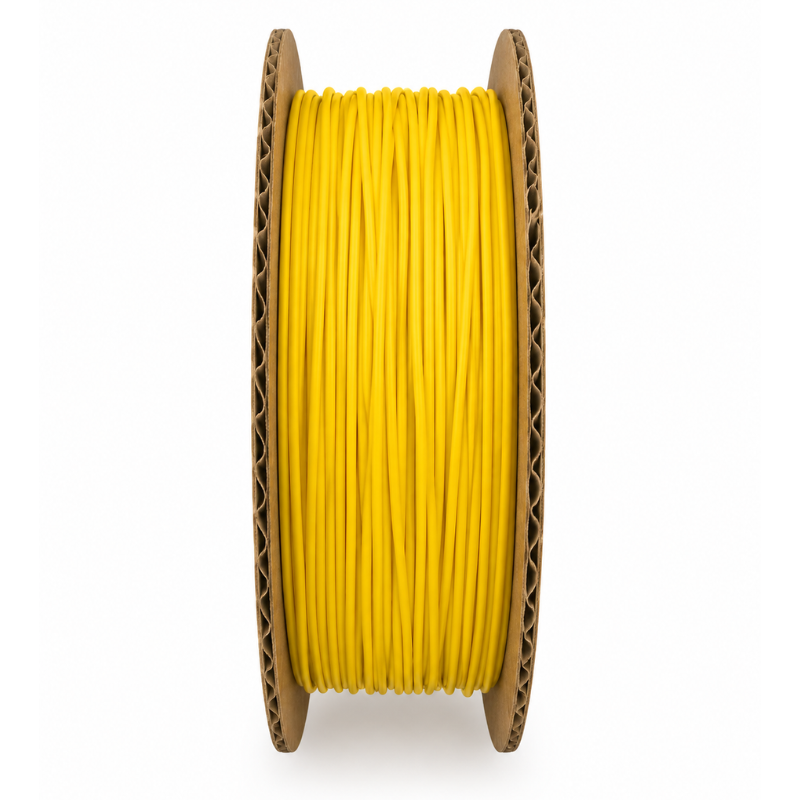

The Telenco Air Blown Fibre Assembly (ABF) is a pre-terminated single-mode fibre solution designed for installation through compatible microduct infrastructure. This 350m underground (UG) assembly combines a compact 1.2mm nominal outer diameter with a pre-terminated configuration, providing an efficient solution for longer fibre access network deployments.

The smooth-sheath ABF construction features a UV-curable acrylate resin coating with an HDPE outer sheath. Its compact profile is designed for air blown fibre installation, allowing the assembly to be deployed through compatible microduct while protecting the optical fibre during installation.

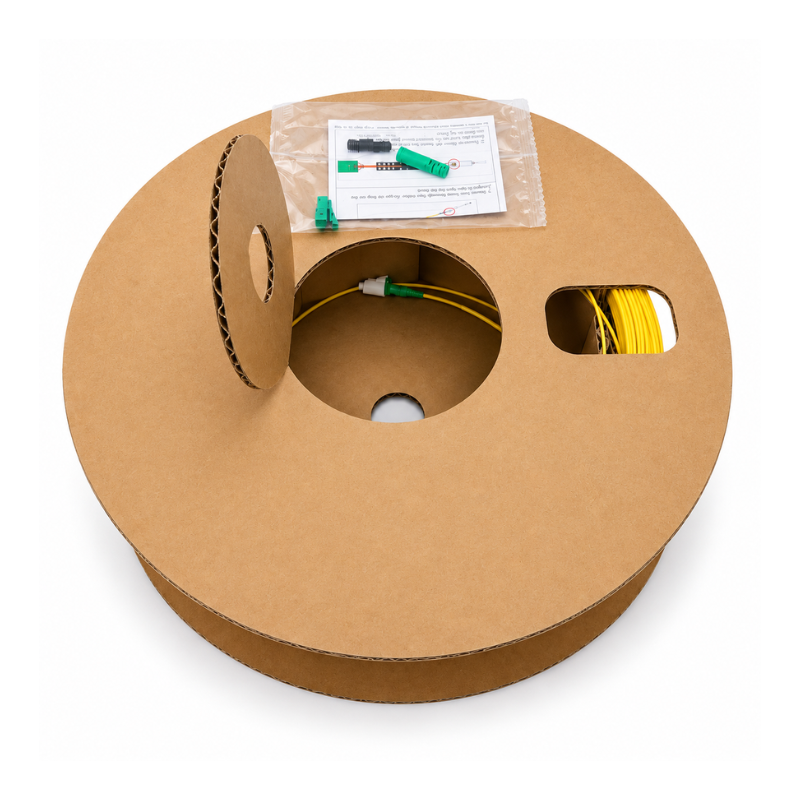

This single-fibre assembly is supplied in an LC/APC to LC/APC ferrule configuration, with the protected ferrule arrangement at the blowing end. The pre-terminated design reduces the requirement for field connectorisation following deployment, helping streamline installation and provide consistent fibre connectivity.

With a 350m assembly length, this option is particularly suited to longer underground microduct routes across FTTH, FTTx and telecommunications access networks.

Key Features:

• Pre-terminated Air Blown Fibre assembly

• 1-fibre single-mode configuration

• 350m assembly length

• Nominal 1.2mm outer diameter

• Smooth-sheath ABF construction

• LC/APC connector configuration

• LC/APC ferrule arrangement at blowing end

• Designed for installation through compatible microduct

• HDPE outer sheath

• UV-curable acrylate resin coating

• Pre-connectorised design reduces field connectorisation

• Grade B connector insertion loss performance

• APC return loss ≥60dB

• Suitable for longer underground fibre routes

Technical Specifications:

• Brand: Telenco

• Product Type: Pre-Terminated Air Blown Fibre Assembly

• Installation Type: UG

• Fibre Count: 1F

• Fibre Type: Single Mode (SM)

• Length: 350m

• Nominal Outer Diameter: 1.2 ± 0.3mm

• Outer Sheath: HDPE

• Coating Material: UV-Curable Acrylate Resin

• Connector: LC/APC

• Blowing End: LC/APC Ferrule

• Connector Insertion Loss: ≤0.12dB mean

• Maximum Connector Insertion Loss: ≤0.25dB for ≥97% of connections

• APC Return Loss: ≥60dB

• Minimum Handling Bend Radius: 40mm

• Operating Temperature: -40°C to +60°C

• Storage Temperature: -40°C to +70°C

Applications:

• Underground fibre network deployment

• Air blown fibre installations

• Microduct fibre networks

• FTTH and FTTx infrastructure

• Fibre access networks

• Telecommunications networks

• Longer fibre network routes

• Pre-connectorised fibre deployments
