Telenco Air Blown Fibre Assembly (ABF) – UG – 1F SM – 1.2mm – LC/APC to LC/APC Ferrule – 25m

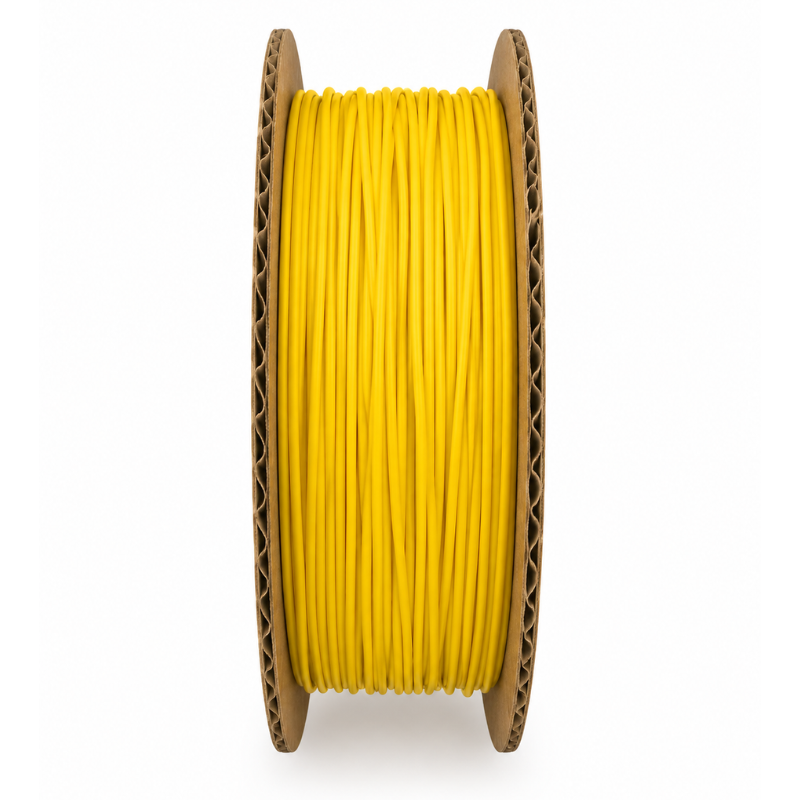

The Telenco Air Blown Fibre Assembly (ABF) is a pre-connectorised single-mode fibre solution designed for installation by blowing through compatible microduct infrastructure. This 25m underground (UG) assembly features a compact 1.2mm nominal outer diameter, providing a lightweight fibre unit for efficient fibre network deployment.
The smooth-sheath ABF construction uses a UV-curable acrylate resin coating and HDPE outer sheath. The supplied datasheet specifies a nominal outer diameter of 1.2 ± 0.3mm and supports one or two fibres within the smooth-sheath construction.

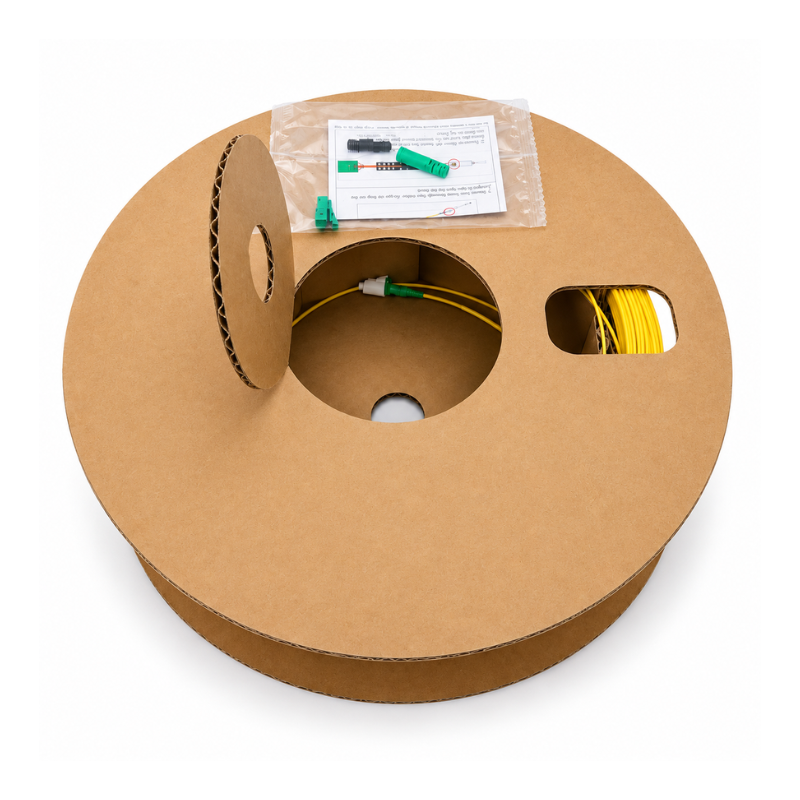

This 1-fibre assembly is configured with an LC/APC connector and LC/APC ferrule arrangement at the blowing end, enabling the fibre to be supplied pre-terminated while remaining suitable for blown fibre installation. The datasheet details a pre-connectorised configuration with LC/APC connectivity and illustrates the protected ferrule, dust cap, spring, stopper and housing arrangement used for the air-blowing end.
The connector specification provides Grade B insertion loss performance, with a mean insertion loss of ≤0.12dB and ≤0.25dB maximum for at least 97% of connections. APC return loss is specified at ≥60dB.
Key Features:
-
Pre-terminated Air Blown Fibre assembly
-
1-fibre single-mode configuration
-
25m assembly length
-
Nominal 1.2mm outer diameter
-
Smooth-sheath ABF construction
-
LC/APC connector configuration
-
LC/APC ferrule arrangement for blowing
-
Designed for installation through compatible microduct
-
HDPE outer sheath
-
UV-curable acrylate resin coating
-
Pre-connectorised design reduces field connectorisation
-
Grade B connector insertion loss performance
-
APC return loss ≥60dB
-
Compact construction for fibre access networks
Technical Specifications:
-
Brand: Telenco
-
Product Type: Pre-Terminated Air Blown Fibre Assembly
-
Installation Type: UG
-
Fibre Count: 1F
-
Fibre Type: Single Mode (SM)
-
Length: 25m
-
Nominal Outer Diameter: 1.2 ± 0.3mm
-
Outer Sheath: HDPE
-
Coating Material: UV-Curable Acrylate Resin
-
Connector: LC/APC
-
Blowing End: LC/APC Ferrule
-
Connector Insertion Loss: ≤0.12dB mean
-
Maximum Connector Insertion Loss: ≤0.25dB for ≥97% of connections
-
APC Return Loss: ≥60dB
-
Minimum Handling Bend Radius: 40mm
-
Operating Temperature: -40°C to +60°C
-
Storage Temperature: -40°C to +70°C
The EPSU smooth-sheath ABF construction has a specified 40mm minimum handling bend radius. The datasheet's temperature cycling test specifies operating limits of -40°C to +60°C and storage limits of -40°C to +70°C.
Applications:
-
Underground fibre network deployment
-
Air blown fibre installations
-
Microduct fibre networks
-
Fibre access networks
-
FTTH and FTTx infrastructure
-
Telecommunications networks
-
Fibre network extensions
-
Pre-connectorised fibre deployments
