Telenco Air Blown Fibre Assembly (ABF) UG 1F SM Pre-Terminated (Dia) 1.2mm LC/APC – LC/APC-Ferrule – 175m

Telenco Air Blown Fibre Assembly (ABF) – UG – 1F SM – 1.2mm – LC/APC to LC/APC Ferrule – 175m

The Telenco Air Blown Fibre Assembly (ABF) is a pre-connectorised single-mode fibre solution designed for installation through compatible microduct infrastructure. This 175m underground (UG) assembly combines a compact 1.2mm nominal outer diameter with a pre-terminated configuration, providing an efficient solution for longer fibre access network deployments.

The smooth-sheath ABF construction features a UV-curable acrylate resin coating and HDPE outer sheath. The supplied specification gives a nominal outer diameter of 1.2 ± 0.3mm, providing a compact profile suited to air blown fibre installations.

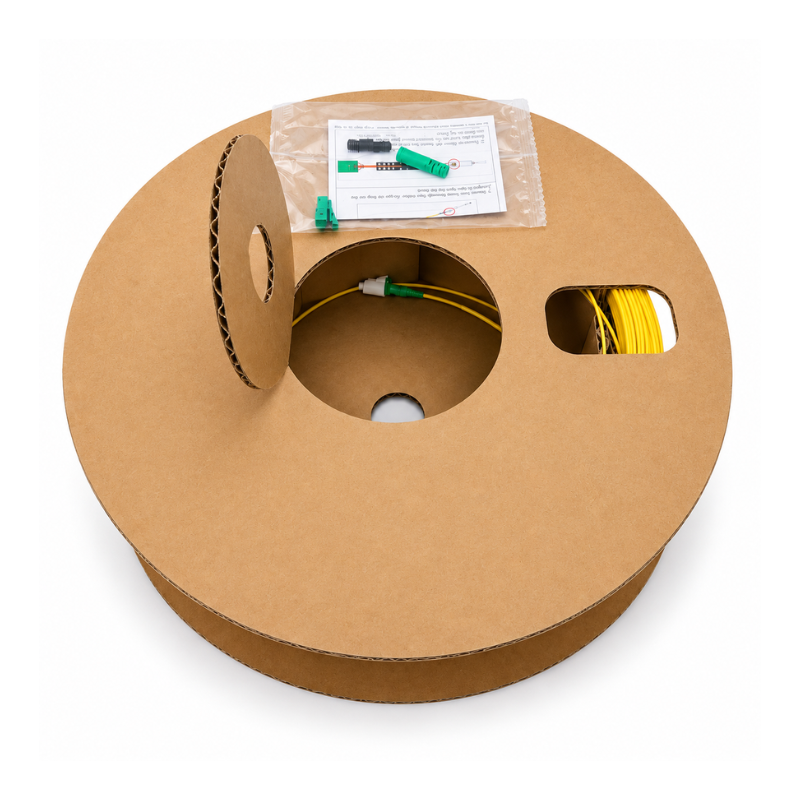

This single-fibre assembly is supplied in an LC/APC to LC/APC ferrule configuration, with the protected ferrule arrangement designed for the air-blowing end. The pre-terminated construction helps reduce the need for field connectorisation following installation, supporting faster and more consistent fibre deployment.

With its 175m length, the assembly is suited to longer underground microduct routes across FTTH, FTTx and telecommunications access networks where pre-connectorised blown fibre is required.

Key Features:

• Pre-terminated Air Blown Fibre assembly

• 1-fibre single-mode configuration

• 175m assembly length

• Nominal 1.2mm outer diameter

• Smooth-sheath ABF construction

• LC/APC connector configuration

• LC/APC ferrule arrangement at blowing end

• Designed for installation through compatible microduct

• HDPE outer sheath

• UV-curable acrylate resin coating

• Pre-connectorised design reduces field connectorisation

• Grade B connector insertion loss performance

• APC return loss ≥60dB

• Suitable for longer underground fibre routes

Technical Specifications:

• Brand: Telenco

• Product Type: Pre-Terminated Air Blown Fibre Assembly

• Installation Type: UG

• Fibre Count: 1F

• Fibre Type: Single Mode (SM)

• Length: 175m

• Nominal Outer Diameter: 1.2 ± 0.3mm

• Outer Sheath: HDPE

• Coating Material: UV-Curable Acrylate Resin

• Connector: LC/APC

• Blowing End: LC/APC Ferrule

• Connector Insertion Loss: ≤0.12dB mean

• Maximum Connector Insertion Loss: ≤0.25dB for ≥97% of connections

• APC Return Loss: ≥60dB

• Minimum Handling Bend Radius: 40mm

• Operating Temperature: -40°C to +60°C

• Storage Temperature: -40°C to +70°C

Applications:

• Underground fibre network deployment

• Air blown fibre installations

• Microduct fibre networks

• FTTH and FTTx infrastructure

• Fibre access networks

• Telecommunications networks

• Longer fibre network routes

• Pre-connectorised fibre deployments
