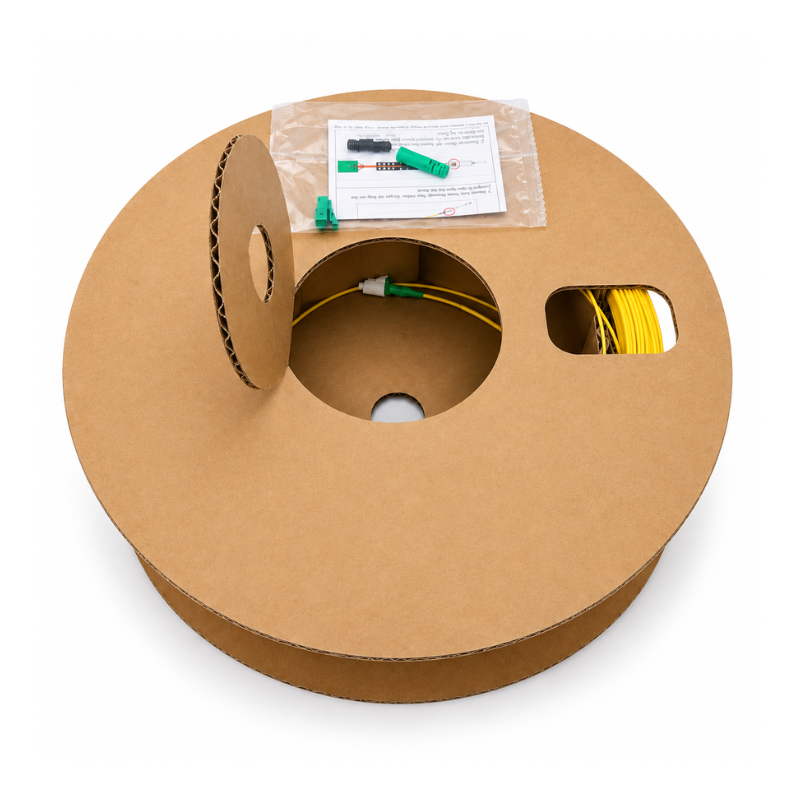

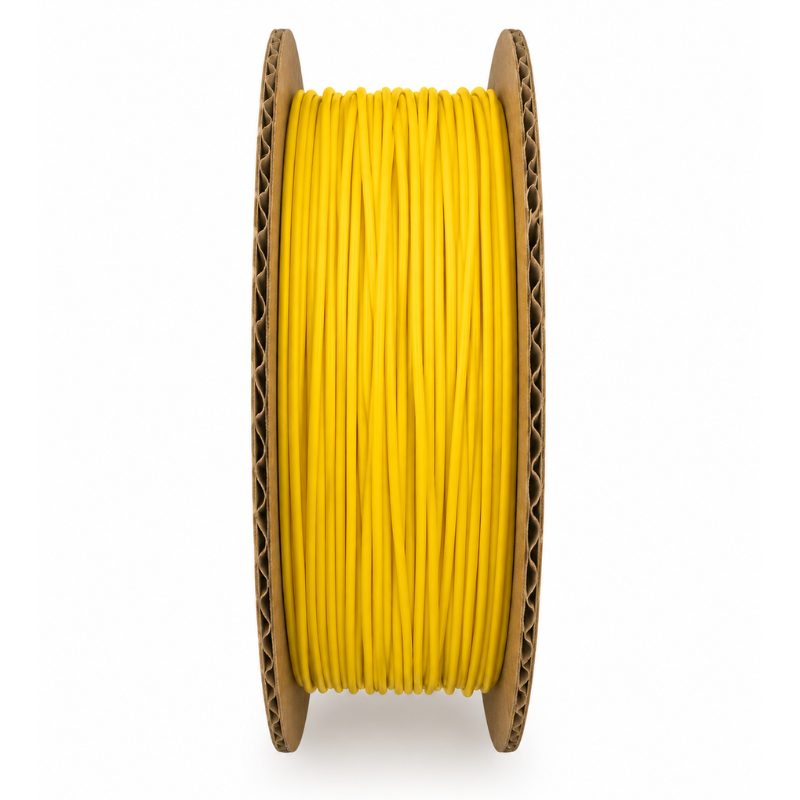

Telenco Air Blown Fibre Assembly (ABF) UG 1F SM Pre-Terminated (Dia) 1.2mm LC/APC – LC/APC-Ferrule – 150m

Telenco Air Blown Fibre Assembly (ABF) – UG – 1F SM – 1.2mm – LC/APC to LC/APC Ferrule – 150m

The Telenco Air Blown Fibre Assembly (ABF) is a pre-connectorised single-mode fibre solution designed for installation through compatible microduct infrastructure. This 150m underground (UG) assembly combines a compact 1.2mm nominal outer diameter with a pre-terminated configuration for efficient fibre access network deployment.

The smooth-sheath ABF construction features a UV-curable acrylate resin coating and HDPE outer sheath. The supplied datasheet specifies a nominal outer diameter of 1.2 ± 0.3mm and supports one- or two-fibre configurations.

This single-fibre assembly uses an LC/APC to LC/APC configuration, with an LC/APC ferrule arrangement at the air-blowing end. The pre-connectorised design enables the fibre to be installed through compatible microduct while reducing the requirement for connectorisation in the field.

Connector performance is specified to Grade B insertion loss, with a mean insertion loss of ≤0.12dB and ≤0.25dB maximum for at least 97% of connections. APC return loss is specified at ≥60dB, supporting dependable optical connectivity.

Key Features:

• Pre-terminated Air Blown Fibre assembly

• 1-fibre single-mode configuration

• 150m assembly length

• Nominal 1.2mm outer diameter

• Smooth-sheath ABF construction

• LC/APC connector configuration

• LC/APC ferrule arrangement at blowing end

• Designed for installation through compatible microduct

• HDPE outer sheath

• UV-curable acrylate resin coating

• Pre-connectorised design reduces field connectorisation

• Grade B connector insertion loss performance

• APC return loss ≥60dB

• Suitable for longer fibre access network routes

Technical Specifications:

• Brand: Telenco

• Product Type: Pre-Terminated Air Blown Fibre Assembly

• Installation Type: UG

• Fibre Count: 1F

• Fibre Type: Single Mode (SM)

• Length: 150m

• Nominal Outer Diameter: 1.2 ± 0.3mm

• Outer Sheath: HDPE

• Coating Material: UV-Curable Acrylate Resin

• Connector: LC/APC

• Blowing End: LC/APC Ferrule

• Connector Insertion Loss: ≤0.12dB mean

• Maximum Connector Insertion Loss: ≤0.25dB for ≥97% of connections

• APC Return Loss: ≥60dB

• Minimum Handling Bend Radius: 40mm

• Operating Temperature: -40°C to +60°C

• Storage Temperature: -40°C to +70°C

The smooth-sheath ABF specification defines a minimum handling bend radius of 40mm. The temperature cycling requirements specify operation from -40°C to +60°C and storage from -40°C to +70°C.

Applications:

• Underground fibre network deployment

• Air blown fibre installations

• Microduct fibre networks

• FTTH and FTTx infrastructure

• Fibre access networks

• Telecommunications networks

• Longer fibre network routes

• Pre-connectorised fibre deployments
