Telenco Air Blown Fibre Assembly (ABF) – UG – 1F SM – 1.2mm – LC/APC to LC/APC Ferrule – 10m

Telenco Air Blown Fibre Assembly (ABF) – UG – 1F SM – 1.2mm – LC/APC to LC/APC Ferrule – 10m

The Telenco Air Blown Fibre Assembly (ABF) is a pre-connectorised single-mode fibre solution designed for installation by blowing through compatible microduct infrastructure. This 10m underground (UG) assembly features a compact 1.2mm nominal outer diameter, providing a lightweight fibre unit suited to space-efficient fibre deployment.

The smooth-sheath ABF construction uses a UV-curable acrylate resin coating with an HDPE outer sheath. The supplied datasheet specifies the construction for one or two fibres, with a nominal cable diameter of 1.2 ± 0.3mm.

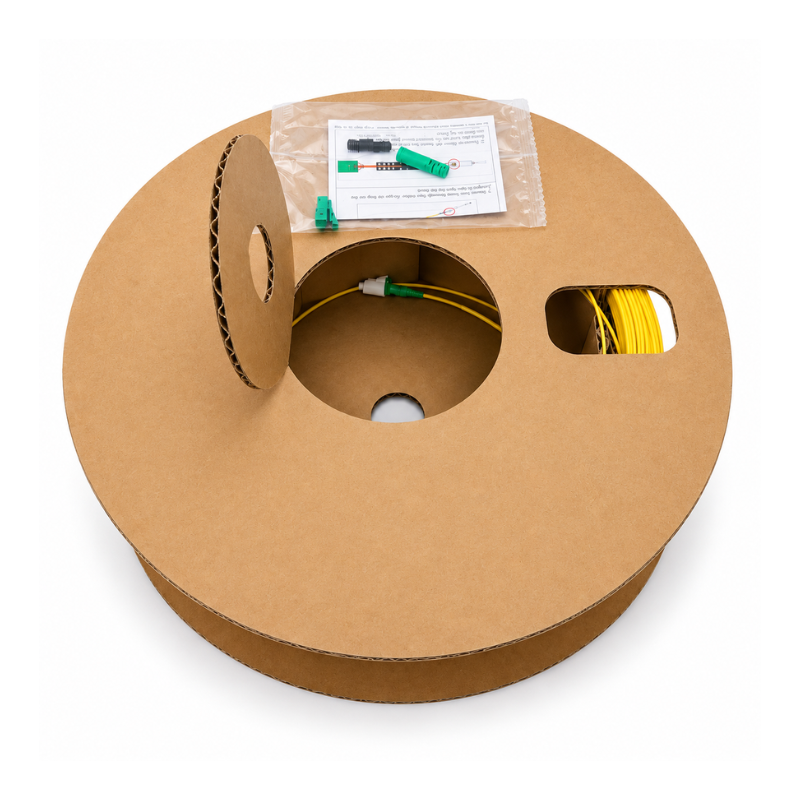

This 1-fibre assembly is configured with an LC/APC connector for the air-blowing end and an LC/APC connector at the opposite end. The pre-connectorised design reduces the requirement for field connectorisation after installation, while the blowing-end assembly incorporates a protected ferrule arrangement for installation through the duct. The connector construction and blowing-end arrangement are shown in the diagram on page 5 of the datasheet.

The LC/APC connector specification provides Grade B insertion loss performance, with a mean insertion loss of ≤0.12dB and ≤0.25dB maximum for at least 97% of connections. APC return loss is specified at ≥60dB.

Key Features:

• Pre-terminated Air Blown Fibre assembly

• 1-fibre single-mode configuration

• 10m assembly length

• Nominal 1.2mm outer diameter

• Smooth-sheath ABF construction

• LC/APC connector configuration

• LC/APC ferrule arrangement for the blowing end

• Designed for installation by fibre blowing

• Compact construction for microduct applications

• HDPE outer sheath

• UV-curable acrylate resin coating

• Pre-connectorised design reduces on-site connectorisation

• APC connector return loss ≥60dB

• Grade B connector insertion loss performance

• Designed for telecommunications and fibre access networks

Technical Specifications:

• Brand: Telenco

• Product Type: Pre-Terminated Air Blown Fibre Assembly

• Installation Type: UG

• Fibre Count: 1F

• Fibre Type: Single Mode (SM)

• Length: 10m

• Nominal Outer Diameter: 1.2 ± 0.3mm

• Outer Sheath: HDPE

• Coating Material: UV-Curable Acrylate Resin

• Connector: LC/APC

• Blowing End: LC/APC Ferrule

• Connector Insertion Loss: ≤0.12dB mean

• Maximum Connector Insertion Loss: ≤0.25dB for ≥97% of connections

• APC Return Loss: ≥60dB

• Minimum Handling Bend Radius: 40mm

• Operating Temperature: -40°C to +60°C

• Storage Temperature: -40°C to +70°C

The datasheet specifies a minimum handling bend radius of 40mm for the EPSU smooth-sheath ABF construction. Operating and storage temperature limits are defined through the cable's temperature cycling requirements.

Applications:

• Underground fibre network deployment

• Air blown fibre installations

• Fibre access networks

• Microduct fibre installations

• FTTH and FTTx infrastructure

• Telecommunications networks

• Fibre network extensions

• Pre-connectorised fibre deployments
