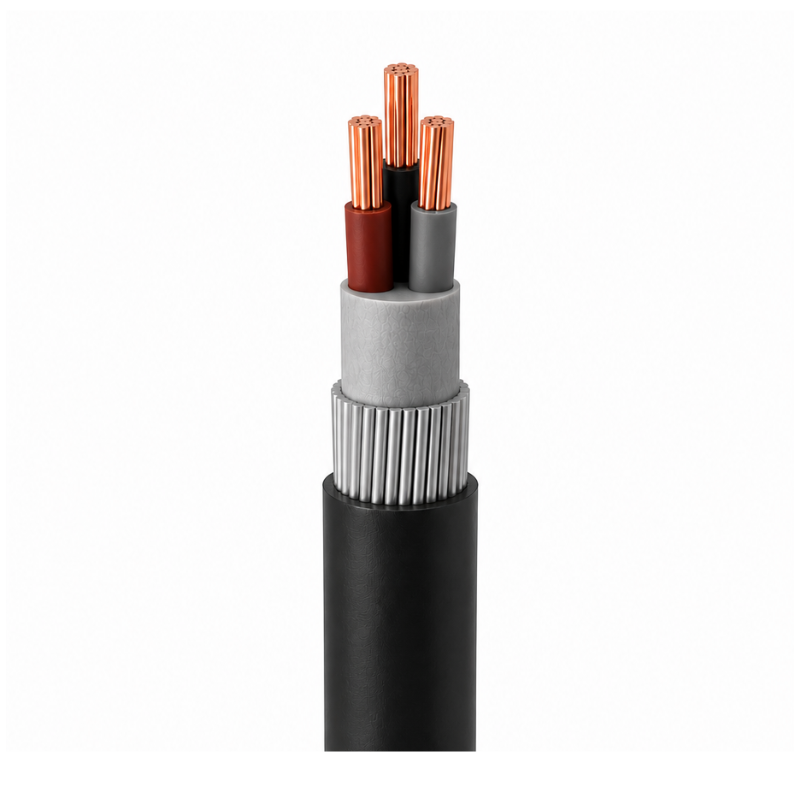

SWA Power Cable – 3 Core – 6mm – Per Metre

SWA Power Cable – 3 Core – 6mm – Per Metre

The SWA Power Cable – 3 Core – 6mm – Per Metre is a heavy-duty armoured power cable designed for fixed electrical installations requiring robust mechanical protection and reliable power distribution.

Manufactured with Class 2 stranded copper conductors, XLPE insulation, PVC bedding, Steel Wire Armour (SWA) and a durable PVC outer sheath, this cable is suitable for power networks, industrial installations and commercial applications. The steel wire armour provides excellent protection against mechanical damage, making it ideal for direct burial, underground installations, outdoor use, indoor installations and cable ducting.

With a 0.6/1kV voltage rating, the cable delivers dependable performance in demanding environments. It is manufactured to BS 5467, is BASEC approved, UV resistant, and flame retardant to IEC/EN 60332-1-2, ensuring long-term reliability and compliance with recognised industry standards. Supplied per metre, it allows installers to order the exact cable length required.

Key Features:

• 3 Core 6mm² SWA power cable

• Sold per metre

• Class 2 stranded copper conductors

• XLPE insulated

• Steel Wire Armour (SWA) protection

• Durable PVC outer sheath

• Suitable for underground and outdoor installations

• UV resistant construction

• Flame retardant

• BASEC approved

Technical Specifications:

• Product Type: SWA Power Cable

• Number of Cores: 3 Core

• Conductor Size: 6mm²

• Supply Length: Per Metre

• Conductor: Class 2 Stranded Copper

• Insulation: XLPE (Cross-Linked Polyethylene)

• Bedding: PVC (Polyvinyl Chloride)

• Armour: Steel Wire Armour (SWA)

• Outer Sheath: PVC (Polyvinyl Chloride)

• Voltage Rating: 0.6/1kV

• Operating Temperature: -25°C to +90°C (Fixed Installation)

• Minimum Bending Radius:

  • 6 × Overall Diameter (1.5mm²–16mm²)

• UV Resistant: Yes

Standards

• BS 5467

• IEC/EN 60502-1

• IEC/EN 60228

• Flame Retardant to IEC/EN 60332-1-2

• BASEC Approved

Applications:

• Power distribution

• Underground power installations

• Outdoor electrical installations

• Industrial buildings

• Commercial premises

• Cable ducting

• Fixed wiring

• Utilities infrastructure

• Manufacturing facilities

• Plant and machinery connections
