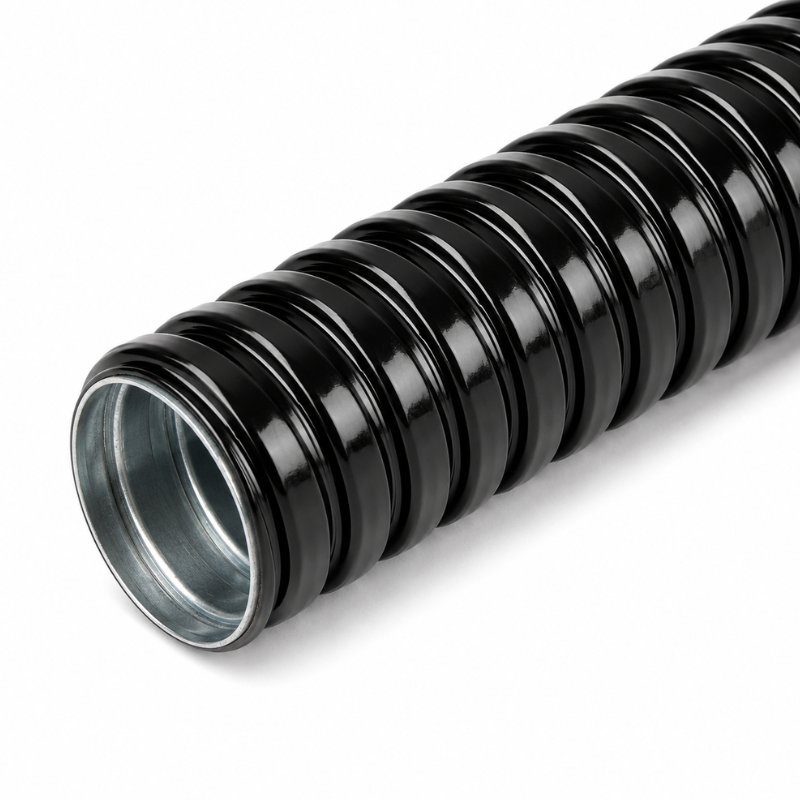

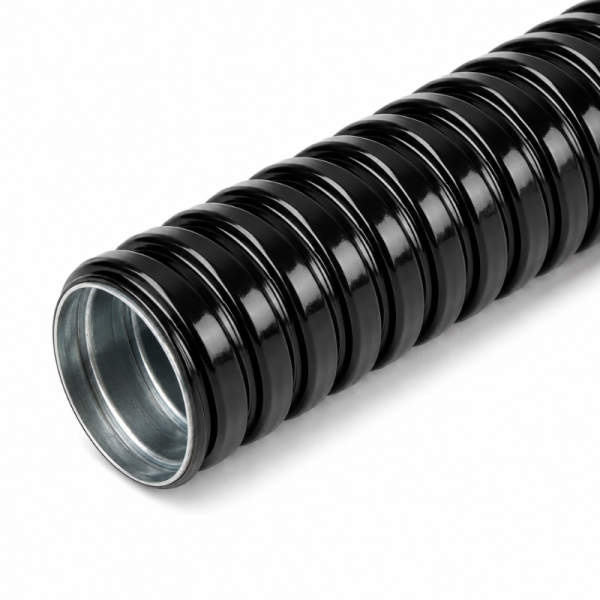

Steel Flexible Conduit – PVC Covered – 20mm x 10m
The Steel Flexible Conduit – PVC Covered – 20mm x 10m is a heavy-duty cable protection conduit designed to safeguard electrical wiring in industrial, commercial and telecommunications installations where flexibility and mechanical protection are required.
Manufactured from galvanised steel with a durable PVC outer covering, the conduit combines excellent flexibility with high mechanical strength, making it ideal for machine tools, control equipment and general wiring applications subject to light mechanical stress. The PVC coating provides additional protection against moisture, abrasion and corrosion, while its self-extinguishing properties enhance safety in the event of fire.
Offering a crush resistance of up to 1250N, this conduit protects cables from impact and compression while allowing easy routing around equipment and confined spaces. Supplied in a 10-metre coil, it is suitable for a wide range of electrical installations and complies with BS EN 61386.
Key Features:
-
Flexible galvanised steel conduit
-
Durable PVC outer covering
-
20mm conduit diameter
-
10m coil length
-
High crush resistance of 1250N
-
Self-extinguishing PVC coating
-
Excellent flexibility for easy installation
-
Suitable for light mechanical stress applications
-
Corrosion-resistant construction
-
Manufactured to BS EN 61386
Technical Specifications:
-
Product Type: Steel Flexible Conduit
-
Diameter: 20mm
-
Length: 10m
-
Material: Galvanised Steel with PVC Covering
-
IP Rating: IP40
-
Crush Resistance: 1250N
-
Operating Temperature: -20°C to +80°C
-
Flame Performance: Self-Extinguishing
-
Standard: BS EN 61386
