Rainford Vanquish™ EMC Indoor Cabinet - Light Grey - 600mm × 600mm × 2200mm

Rainford Vanquish™ EMC Indoor Cabinet – Light Grey – 600mm × 600mm × 2200mm

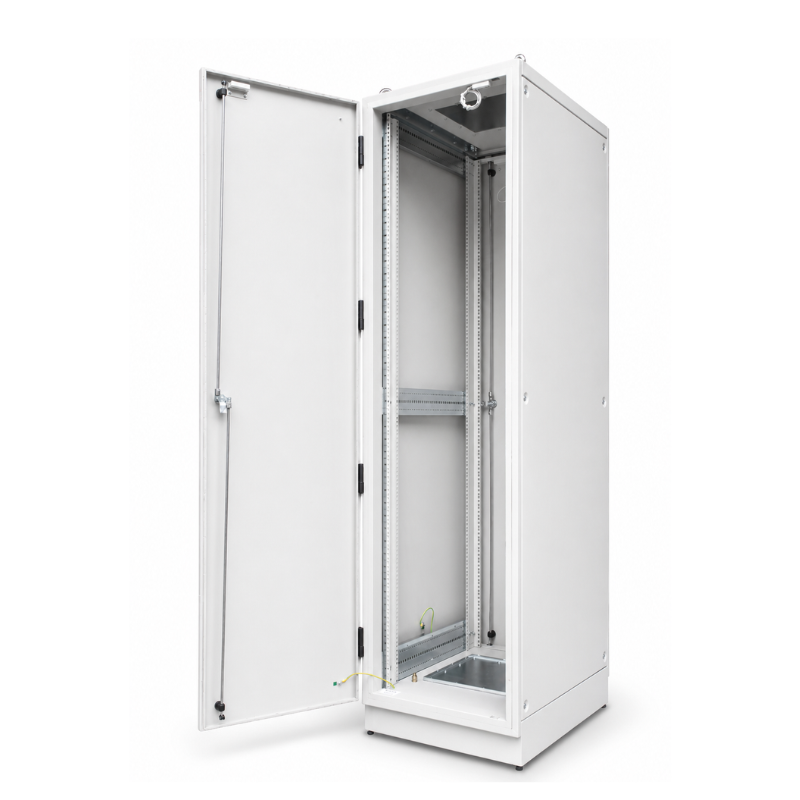

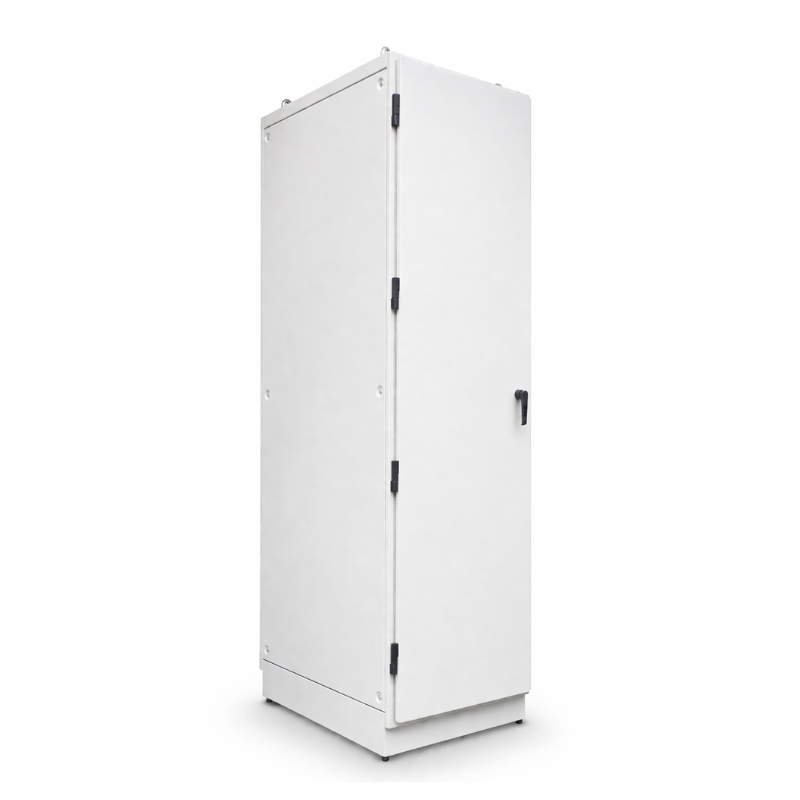

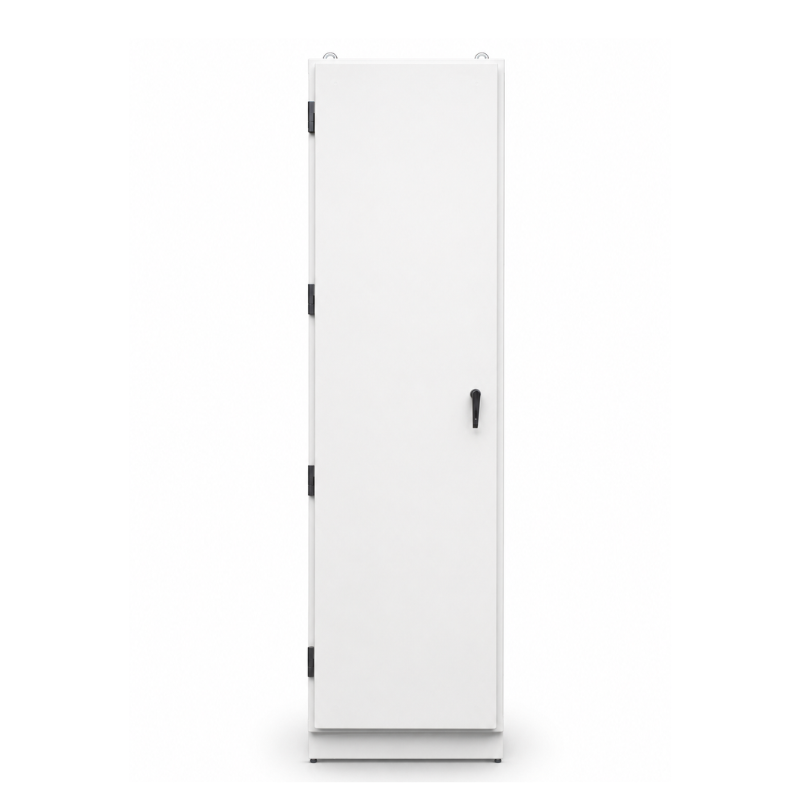

The Rainford Vanquish™ EMC Indoor Cabinet – Light Grey – 600mm × 600mm × 2200mm is a premium 45U EMC-shielded 19-inch enclosure engineered to provide exceptional protection for sensitive electronic and telecommunications equipment. Designed for mission-critical applications, the cabinet delivers 40dB+ electromagnetic shielding, helping to minimise interference and maintain signal integrity in demanding network environments.

Manufactured from Zintec steel with a durable polyester powder-coated Light Grey (RAL7032) finish, the cabinet supports a 500kg static load and features fully depth-adjustable 19-inch mounting profiles. Front and rear access doors, together with full-height removable side panels, provide excellent accessibility for installation and maintenance.

The cabinet is equipped with a 48V DC thermostatically controlled fan and EMC filter system, capable of dissipating 300W at ΔT 20°C, ensuring reliable cooling while maintaining EMC performance. Comprehensive cable management includes full-height slotted trunking on both sides, EMC gland plates for top and bottom cable entry, integrated earthing, removable lifting eyebolts and chassis support kits, making the Vanquish™ cabinet ideal for secure indoor telecommunications and private network infrastructure.

Key Features:

• 45U 19-inch EMC-shielded indoor cabinet

• 40dB+ EMC shielding across a broad frequency range

• 500kg static load capacity

• Fully depth-adjustable mounting profiles

• 48V DC thermostatically controlled cooling system

• IP54 G3 EMC filter (UL & cUL approved)

• Front and rear access doors with removable side panels

• 3-point locking system with padlock hasp handle

• Full-height cable management trunking

• Light Grey polyester powder-coated finish (RAL7032)

Technical Specifications:

• Product Type: EMC Indoor Cabinet

• Range: Rainford Vanquish™

• Mounting Format: 19 Inch

• Rack Height: 45U

• Dimensions (H × W × D): 2200 × 600 × 600mm

• Static Load Capacity: 500kg

• Estimated Weight: 100kg

• Material: Zintec Steel

• Finish: Polyester Powder Coat

• Colour: Light Grey (RAL7032)

• Mounting Profiles: Fully Depth Adjustable

• Handle Type: Padlock Hasp Handle

• Locking System: 3-Point Locking

• Lock Type: Padlock (Not Included)

• Hinges: 4-Point Lift-Off Front & Rear Hinges

• Plinth Height: 135mm

• Cable Entry:

  • Top Plain EMC Gland Plate

  • Bottom EMC Gland Plate with 4 × 25mm & 6 × 20mm Knockouts

• Cable Management: Full Height 100 × 50mm Slotted Trunking (LH & RH)

• Doors: Front & Rear Doors with Full Height Removable Side Panels

• Lifting Points: 4 × Removable M12 Lifting Eyebolts

• Earthing: M10 Brass Earth Stud

• Cooling System: Rear Door Mounted 48V DC Thermostatically Controlled Fan & Filter

• Heat Dissipation: 300W at ΔT 20°C

• Filter: IP54 G3 EMC Filter (UL & cUL Approved)

• EMC Performance: 40dB+ Shielding

• Chassis Supports: 2 × 150mm Deep Support Kits

Quality Standard

• ISO 9001:2015 Quality Management System

Applications:

• Private network infrastructure

• Telecommunications equipment

• EMC-sensitive electronic systems

• Industrial control systems

• Secure communications

• Data centres

• Control rooms

• Utility infrastructure

• Defence and critical infrastructure

• Indoor network equipment installations
