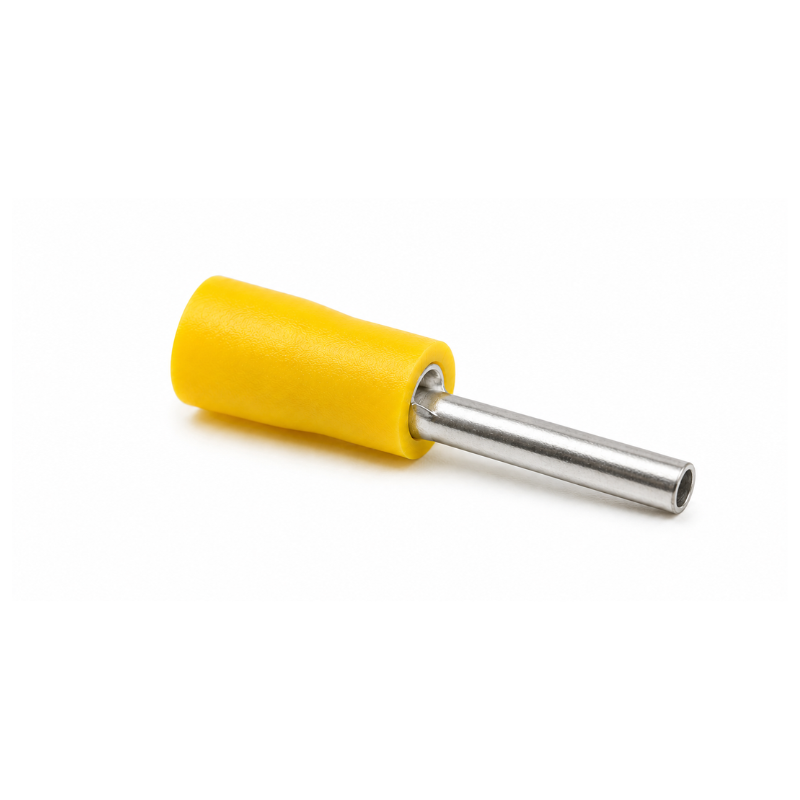

Pin Terminal – Yellow – 14mm Pin – Entry 4-6mm – Pack of 100
The Pin Terminal – Yellow – 14mm Pin – Entry 4-6mm – Pack of 100 is a high-quality pre-insulated crimp terminal designed to provide secure and reliable electrical connections in industrial, commercial and control panel applications.
Manufactured from oxygen-free high conductivity copper, each terminal is electro-tin plated to provide excellent corrosion resistance and long-lasting electrical performance. The yellow PVC insulation identifies compatibility with 4-6mm² conductors and provides dependable insulation with a maximum operating temperature of 75°C.
Featuring a 14mm pin length, these terminals are ideal for terminating stranded conductors into terminal blocks, control equipment, relays and switchgear where a secure pin connection is required. Supplied in a pack of 100, they are suitable for professional installers, panel builders and maintenance engineers.
Key Features:
-
Pre-insulated pin terminal
-
14mm pin length
-
Suitable for 4-6mm² cable
-
Yellow PVC insulation
-
Manufactured from oxygen-free high conductivity copper
-
Electro-tin plated for corrosion resistance
-
Maximum operating temperature of 75°C
-
UKCA approved
-
Reliable crimp connection
-
Pack of 100
Technical Specifications:
-
Product Type: Pin Terminal
-
Pin Length: 14mm
-
Cable Entry: 4-6mm²
-
Insulation Colour: Yellow
-
Quantity: 100
-
Terminal Material: Oxygen-Free High Conductivity Copper
-
Insulation Material: PVC
-
Finish: Electro-Tin Plated
-
Maximum Operating Temperature: 75°C
-
UKCA Approved: Yes
Applications:
