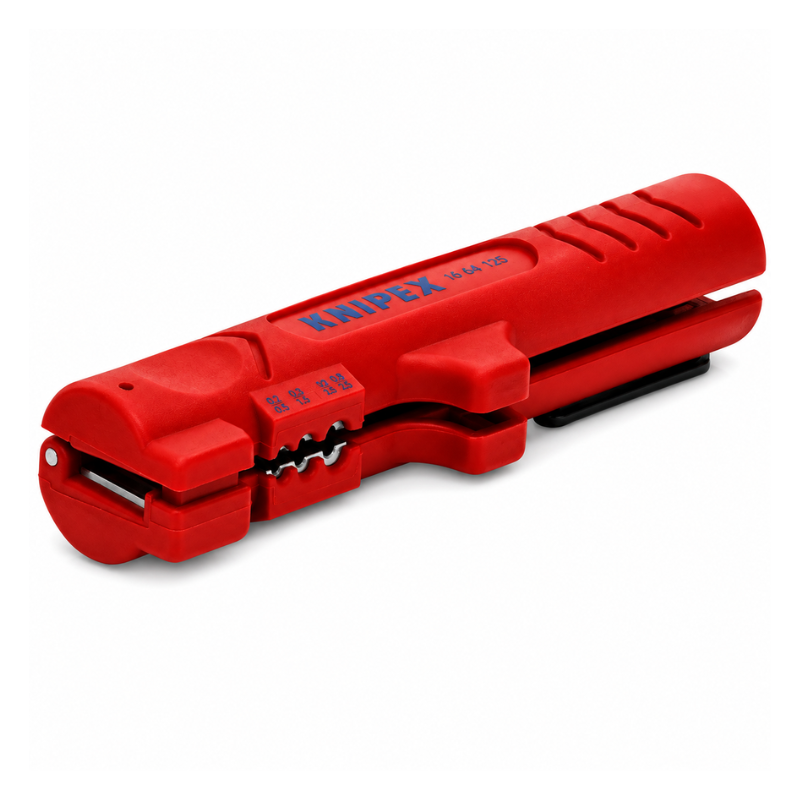

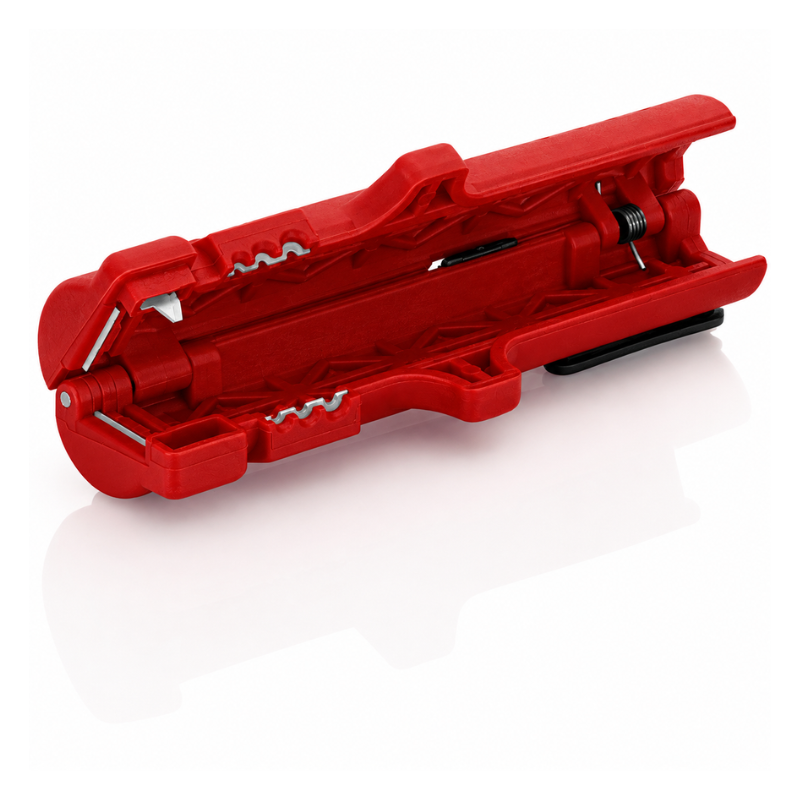

KNIPEX 16 64 125 Stripping Tool – Flat & Round Cable – 125mm
The KNIPEX 16 64 125 Stripping Tool is a compact, professional cable stripping tool designed for the fast and accurate removal of insulation from both flat and round installation cables. Engineered for electricians, telecoms engineers and maintenance professionals, this versatile tool is ideal for working in confined spaces such as conduit, distribution boxes and electrical enclosures where precision and accessibility are essential.
Suitable for flat cables up to 12mm wide and round installation cables from Ø4mm to Ø13mm, the tool accommodates many commonly used electrical installation cables, including damp-proof cables such as NYM 3 × 1.5mm² up to 5 × 2.5mm². Integrated stripping holes for 0.8mm², 1.5mm² and 2.5mm² conductors (AWG 20, 16 and 14) enable quick, consistent stripping without damaging the conductor, helping to improve installation quality and efficiency.
The compact 125mm design is complemented by an opening spring for effortless operation and a locking mechanism for safe storage and transport. Its slim profile allows easy access to restricted work areas, making it particularly well suited to installation and maintenance work within switchgear, conduit systems and distribution boards.
Combining precision, versatility and KNIPEX's renowned build quality, the 16 64 125 Stripping Tool is an essential addition to any professional electrical or telecoms toolkit.
Key Features:
-
Professional cable stripping tool for flat and round cables
-
Suitable for flat cables up to 12mm wide
-
Strips round installation cables from Ø4mm to Ø13mm
-
Compatible with damp-proof installation cables
-
Integrated conductor stripper for 0.8mm², 1.5mm² and 2.5mm² cables
-
Suitable for AWG 20, 16 and 14 conductors
-
Opening spring for smooth operation
-
Locking mechanism for safe storage
-
Compact design for confined working areas
-
Ideal for conduit and distribution box installations
Technical Specifications:
-
Brand: KNIPEX
-
Model: 16 64 125
-
Product Type: Cable Stripping Tool
-
Overall Length: 125mm
-
Flat Cable Capacity: Up to 12mm wide
-
Round Cable Capacity: Ø4mm – Ø13mm
-
Stripping Capacity: 0.8mm², 1.5mm², 2.5mm²
-
AWG Capacity: 20 / 16 / 14
-
Suitable Cable Types: Flat cable, round installation cable, damp-proof installation cable (e.g. NYM 3 × 1.5mm² to 5 × 2.5mm²)
-
Features: Opening spring, locking device
Applications:
-
Electrical installations
-
Telecom infrastructure
-
Data centre installations
-
Control panel wiring
-
Distribution board installations
-
Conduit wiring
-
Maintenance and servicing
-
Industrial electrical work
-
Cable preparation
-
Professional trade use
