Jumper Wire CW1109 – Red/White – Per Metre

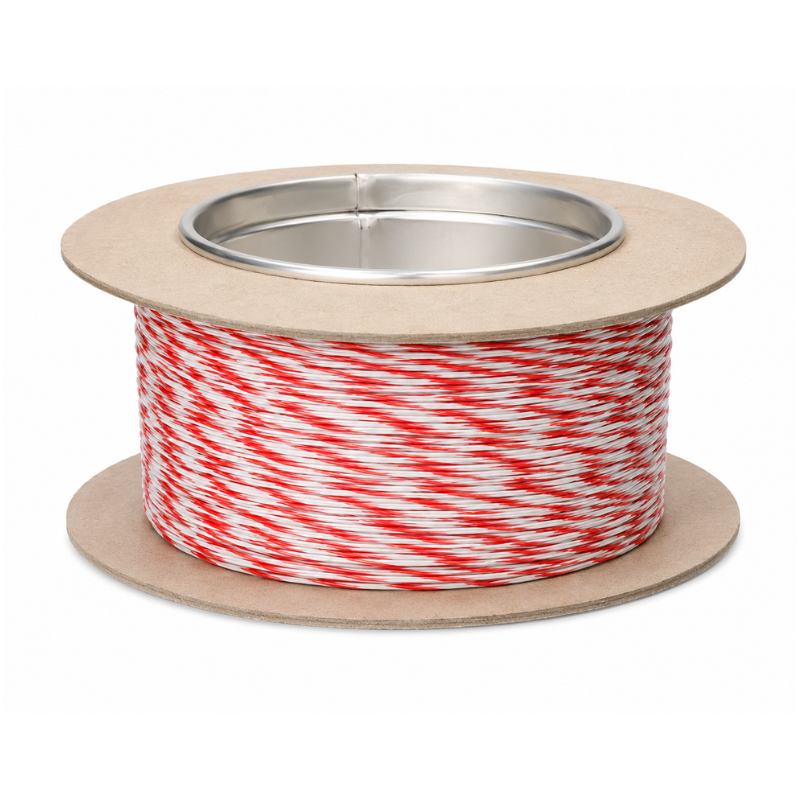

Jumper Wire CW1109 – Red/White – 200m

The Jumper Wire CW1109 – Red/White – 200m is a high-performance flexible jumper wire designed for telecommunications equipment, switchgear, relay systems, control panels and general electrical interconnections where flexibility and dependable performance are essential.

Manufactured with a Class 5 flexible plain annealed copper conductor using low carbon copper (1.7kg CO₂/kg), this jumper wire delivers excellent electrical conductivity while supporting more sustainable cable production. The heat-resisting PVC insulation provides outstanding durability and flexibility, making it ideal for routing within control panels, telecommunications equipment and confined installations.

As a tri-rated cable, CW1109 meets UK, UL and CSA requirements, allowing it to be used across a wide range of domestic and international applications. Supplied on a 200m reel, it offers a reliable and economical solution for professional electrical and telecommunications installations.

Key Features:

• CW1109 flexible jumper wire

• 200m reel

• Red/White insulation

• Class 5 plain annealed copper conductor

• Low carbon copper (1.7kg CO₂/kg)

• Heat-resisting PVC insulation

• Tri-rated cable

• Excellent flexibility for panel wiring

• Wide operating temperature range

• RoHS compliant

Technical Specifications:

• Product Type: Jumper Wire

• Cable Type: CW1109

• Reel Length: 200m

• Colour: Red/White

• Conductor: Class 5 Flexible Plain Annealed Copper

• Copper Type: Low Carbon Copper (1.7kg CO₂/kg)

• Insulation: Heat-Resisting PVC

• Cable Rating: Tri-Rated

• Operating Temperature: -20°C to +105°C

• Minimum Bending Radius: 6 × Cable Diameter

Standards & Approvals

• BS 6231 Type CK

• UL Approved

• CSA Approved

• BS EN 60332-1-2 Flame Retardant

• VW-1

• FT-1

• RoHS Compliant

Applications:

• Telecommunications equipment

• Telephone exchanges

• Control panels

• Switchgear

• Relay wiring

• Instrumentation systems

• Panel building

• Industrial automation

• Electrical interconnections

• General low-voltage wiring
