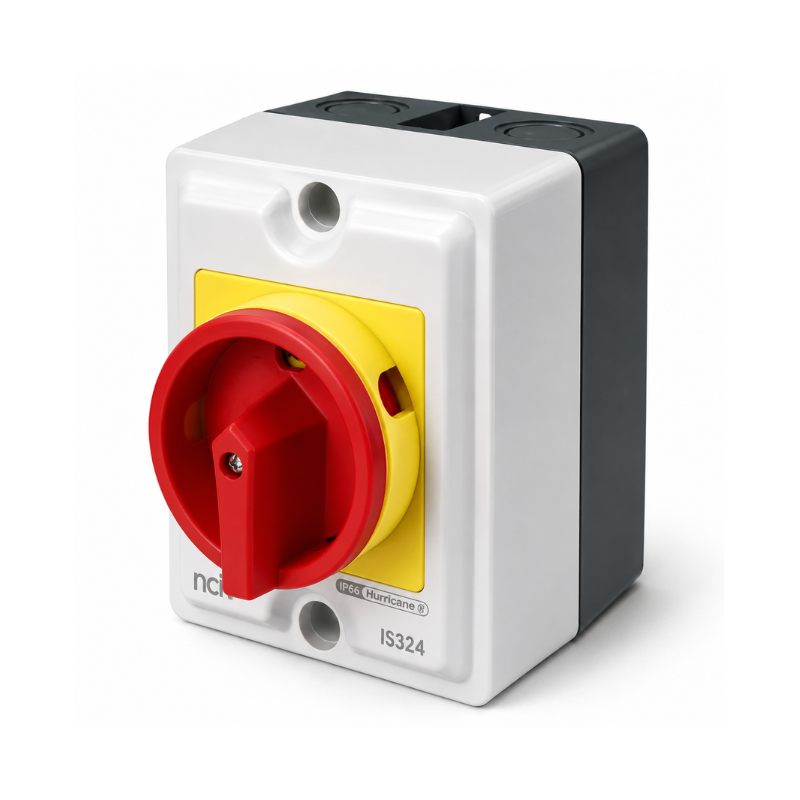

Isolator Switch – 4 Pole – 32A – IP65
The Isolator Switch – 4 Pole – 32A – IP65 is a robust rotary isolator designed to provide safe and reliable isolation of electrical circuits in industrial, commercial and outdoor installations.
Rated at 32A and 440V, this surface-mounted isolator features a durable IP65-rated enclosure, offering excellent protection against dust ingress and low-pressure water jets, making it suitable for demanding indoor and outdoor environments.
The highly visible red and yellow rotary handle provides a clear indication of the switch position, while the 4-pole configuration enables complete isolation of three-phase electrical systems with neutral. Manufactured to EN 60947-3, the isolator delivers dependable performance for machinery, distribution boards, HVAC systems and industrial control applications.
Its compact design, combined with secure screw terminals, ensures straightforward installation and long-term reliability in a wide range of electrical installations.
Key Features:
-
4-pole rotary isolator switch
-
32A current rating
-
440V voltage rating
-
IP65-rated weatherproof enclosure
-
Surface mounting design
-
Red and yellow rotary operating handle
-
Secure screw terminal connections
-
Suitable for indoor and outdoor installations
-
Manufactured to EN 60947-3
-
Ideal for industrial and commercial electrical isolation
Technical Specifications:
-
Product Type: Rotary Isolator Switch
-
Number of Poles: 4 Pole
-
Current Rating: 32A
-
Voltage Rating: 440V
-
IP Rating: IP65
-
Mounting Type: Surface Mount
-
Terminal Type: Screw
-
Colour: Red / Yellow / Grey
-
Height: 126mm
-
Width: 101mm
-
Depth: 129.5mm
-
Dimensions: 126 (H) × 101 (W) × 129.5 (D) mm
-
Weight: 0.677kg
-
Product Range: Rotary Isolators
-
Previously Known As: IS324P
-
Standard: EN 60947-3
-
Guarantee: 1 Year
Applications:
-
Industrial machinery
-
Electrical distribution systems
-
Motor isolation
-
Control panels
-
Switchgear
-
HVAC equipment
-
Commercial electrical installations
-
Outdoor electrical systems
-
Manufacturing facilities
-
Maintenance isolation points
