EXFO EX10 Multigigabit Residential and Business Services Tester

EXFO EX10 Multigigabit Residential and Business Services Tester

EXFO EX10 is a multigigabit residential and business services tester that helps field engineers prove service performance at the customer premises. It validates bandwidth up to full line rate 10 Gigabit Ethernet, runs Speedtest by Ookla over electrical or optical interfaces, and supports GPON and XGS PON with PON ID and ONU ID checks plus optical loss insights for first time right activations. Cloud ready reporting and app control make job close-out fast and consistent.

The unit also delivers advanced Wi Fi assurance. Verify room by room Wi Fi 4, 5, 6, 6E and 7 delivery with channel maps, RSSI and channel utilisation, then generate a birth certificate report in PDF JSON XML or CSV and sync to EXFO Exchange. With RJ45 up to 10G, SFP and SFP plus for fibre and Bluetooth control from Android or iOS, EX10 gives UK installers a compact way to validate throughput and quality of experience.

Key Features:

• Multigigabit validation at 1G 2.5G 5G and 10G powered by Speedtest by Ookla.

• Wi Fi 7 testing across 2.4 GHz 5 GHz and 6 GHz with channel mapping and room tagging.

• GPON and XGS PON ONT link validation including PON ID ONU ID TOL and ODN loss.

• Adjustable pass or fail thresholds and automated birth certificate reports.

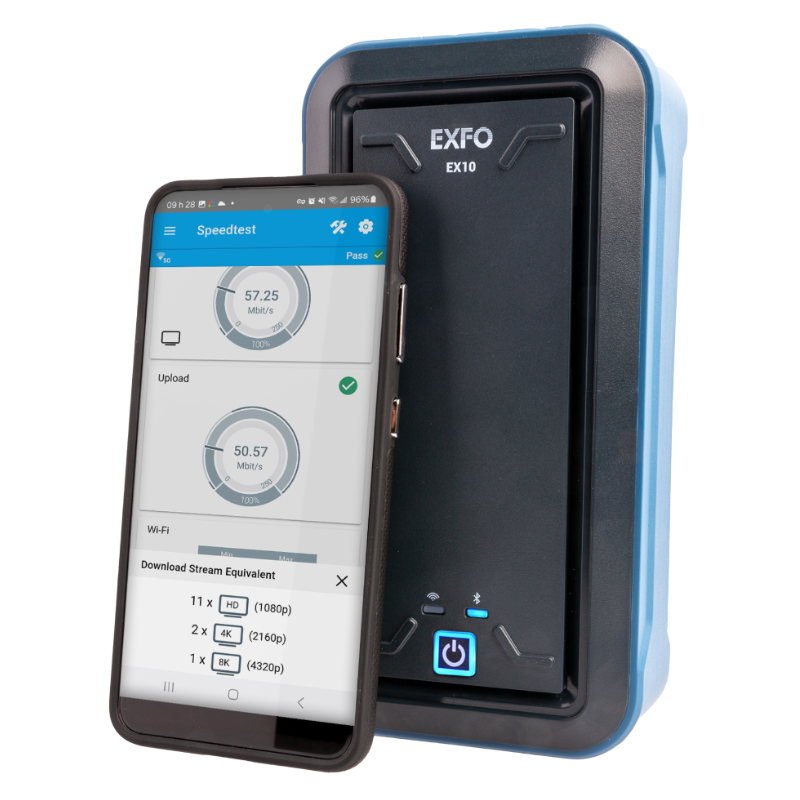

• App controlled over Bluetooth with cloud upload via EXFO Exchange.

Technical specifications:

• Interfaces

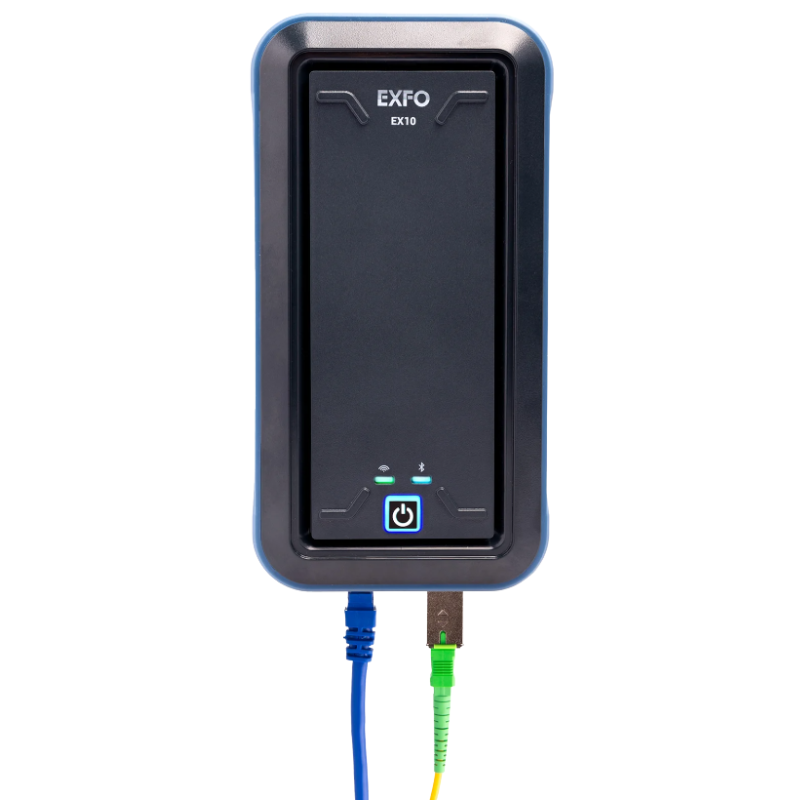

  RJ45 electrical test port at 100 1000 2500 5000 10000 Mbit per s
  Optical SFP 1GE and SFP plus 10GE plus XGS PON ONT transceiver support
  USB type C, Bluetooth 5.0, Wi Fi 7 bands 2.4 5 and 6 GHz.

• Wi Fi tools
  Channel map with signal quality filters, AP details BSSID manufacturer channel frequency utilisation and RSSI, snapshot by room.

• Reporting
  JSON XML PDF CSV, server selection, multi TCP, pass or fail verdicts.

• Power and size
  Rechargeable Li ion, typical one day of customer visits, about 105 mm by 200 mm by 60 mm, around 0.8 kg.
