EXFO EX1 FTTH and Business Services Tester

EXFO EX1 FTTH and Business Services Tester

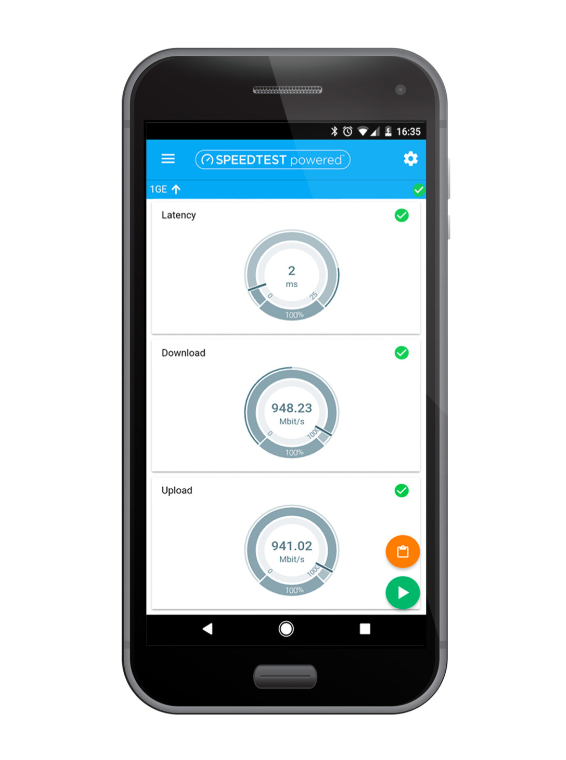

EXFO EX1 is a pocket sized, carrier grade tester for activating and troubleshooting residential and business broadband services. Paired with an Android or iOS device, it validates true Gigabit Ethernet throughput with Speedtest by Ookla, performs Wi Fi surveys with a channel map for 2.4 and 5 GHz, and checks ONT links on GPON and XGS PON using EXFO managed SFP and SFP plus transceivers.

The app controlled workflow guides technicians through setup, testing and report creation. Results and pass or fail thresholds are stored automatically, with reports in PDF, JSON, XML or CSV and cloud sync via EXFO Exchange to speed up job close out and documentation. Compact and robust, EX1 is ideal for fast, repeatable testing at the customer premises.

Key Specifications:

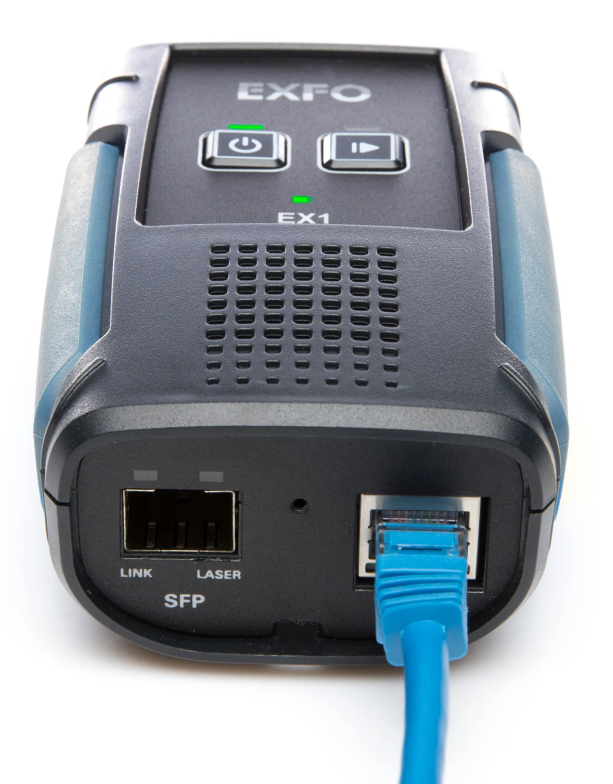

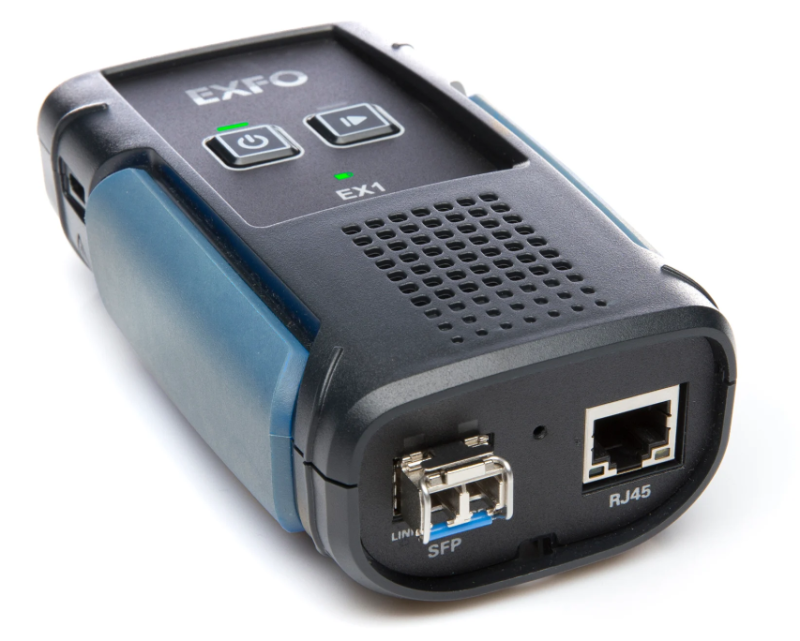

• Interfaces
 RJ45 electrical port 10 100 1000 Mbit per s
 Optical SFP port for 1 GE plus GPON ONT and XGS PON ONT transceivers

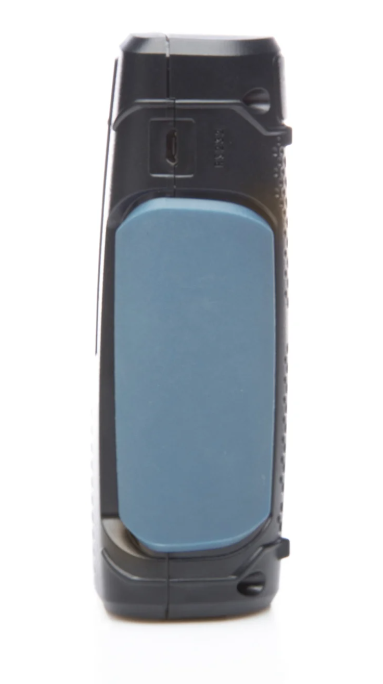

 USB type C port for power and data
 Bluetooth 4.2 and Wi Fi 802.11 a b g n ac

• Wi Fi features
 Channel map on 2.4 and 5 GHz with filtering by signal level and channel
 Access point details including BSSID channel frequency and RSSI

• Reporting and metrics
 Latency download and upload speeds server selection client WAN IP
 Pass or fail verdicts based on thresholds
 Automatic report generation in PDF JSON XML and CSV

• GPON and XGS PON ONT link validation
 Measures OLT optical transmit power ONT optical receive power ODN loss PON ID ONU ID and operational state
 Supports IP connectivity tests and speed testing over PON with EXFO managed SFP modules

• Power and device control
 Rechargeable Li ion battery with a typical day of customer visits
 About three and a half hours charging time using the supplied charger
 Android 7 or later and iOS 13 or later supported

• Size and weight
 Approximate size 125 mm by 75 mm by 45 mm
 Approximate weight 0.45 kg
