DIN41612 Connector – Female – 96 Way

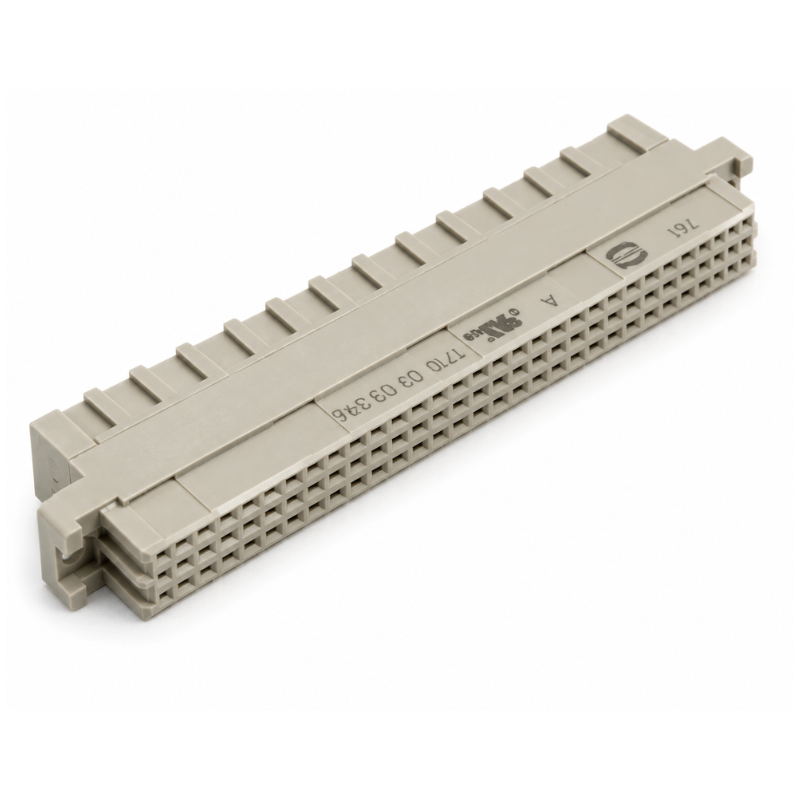

The DIN41612 Connector – Female – 96 Way is a high-performance PCB connector designed for reliable board-to-board and motherboard-to-daughtercard connections in telecommunications, industrial control and electronic equipment.

Manufactured in accordance with IEC 60603-2, this Type C female connector features 96 contacts arranged across three rows (a, b and c) with 2.54mm contact spacing, providing dependable signal transmission for high-density electronic applications. The connector incorporates wave solder termination, a PCB fixing flange for secure mounting and a glass fibre-filled thermoplastic housing with a UL94 V-0 flammability rating for enhanced durability.

Designed for long-term reliability, the connector supports 500 mating cycles, offers low contact resistance (≤20mΩ), high insulation resistance (>10¹²Ω) and is rated for operation between -55°C and +125°C. The contacts are manufactured from copper alloy with noble metal over nickel plating on the mating side for reliable electrical performance.

Key Features:

• DIN 41612 Type C female connector

• 96-way connector

• Three contact rows (a, b and c)

• 2.54mm contact spacing

• Wave solder termination

• PCB fixing flange

• Glass fibre-filled thermoplastic housing

• Copper alloy contacts with noble metal plating

• Minimum 500 mating cycles

• RoHS compliant

Technical Specifications:

• Connector Type: Type C

• Number of Contacts: 96

• Contact Rows: 3

• Contact Configuration: Rows a, b and c (Positions 1–32)

• Contact Spacing:

  • Mating Side: 2.54mm

  • Termination Side: 2.54mm

• Termination Method: Wave Solder

• Termination Length: 2.9mm

• PCB Mounting: Fixing Flange

• Rated Current: 2A

• Contact Resistance: ≤20mΩ

• Insulation Resistance: >10¹²Ω

• Creepage Distance: ≥1mm

• Clearance Distance: ≥1mm

• Test Voltage: 1kV RMS

• Insertion Force: ≤90N

• Withdrawal Force: ≤60N

• Mating Cycles: ≥500

• Operating Temperature: -55°C to +125°C

• Performance Level: Level 1 (IEC 60603-2)

• Housing Material: Glass Fibre-Filled Thermoplastic Resin

• Housing Colour: RAL 7032 (Pebble Grey)

• Contact Material: Copper Alloy

• Contact Finish:

  • Mating Side: Noble Metal over Nickel

  • Termination Side: Tin over Nickel

• Flammability Rating: UL94 V-0

• Hot Plugging: No

Compliance

• IEC 60603-2

• UL 1977

• CSA C22.2 No. 182.3

• RoHS Compliant

• ELV Compliant

• REACH Compliant

• EN 45545-2 (Hazard Level R26)

Applications:

• Telecommunications equipment

• Industrial control systems

• PCB assemblies

• Motherboard to daughtercard connections

• Data communications equipment

• Test and measurement equipment

• Embedded electronics

• Automation systems

• Network hardware

• Electronic instrumentation
