CSP + Dual Sheath Cable Bundle

CSP + Dual Sheath Cable Bundle

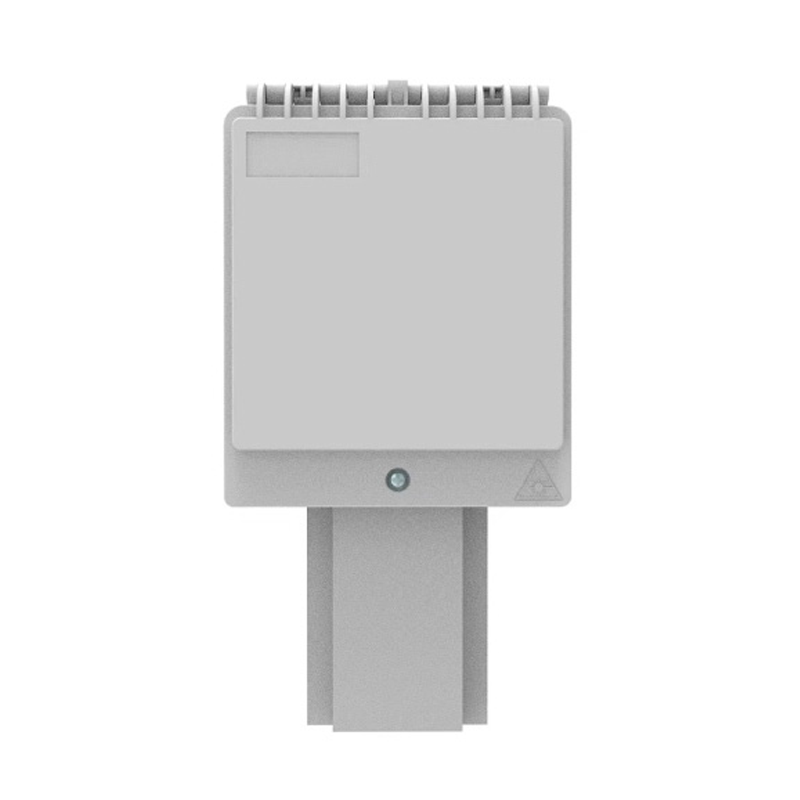

The CSP (Customer Service Point) is a compact, wall-mounted fibre termination box designed for customer access points in FTTH networks. Its internal two-layer design separates network and customer fibres, ensuring clean routing and a professional finish. The CSP supports splice management, drop cable entry and connector parking, making it suitable for both new builds and retrofit installations.

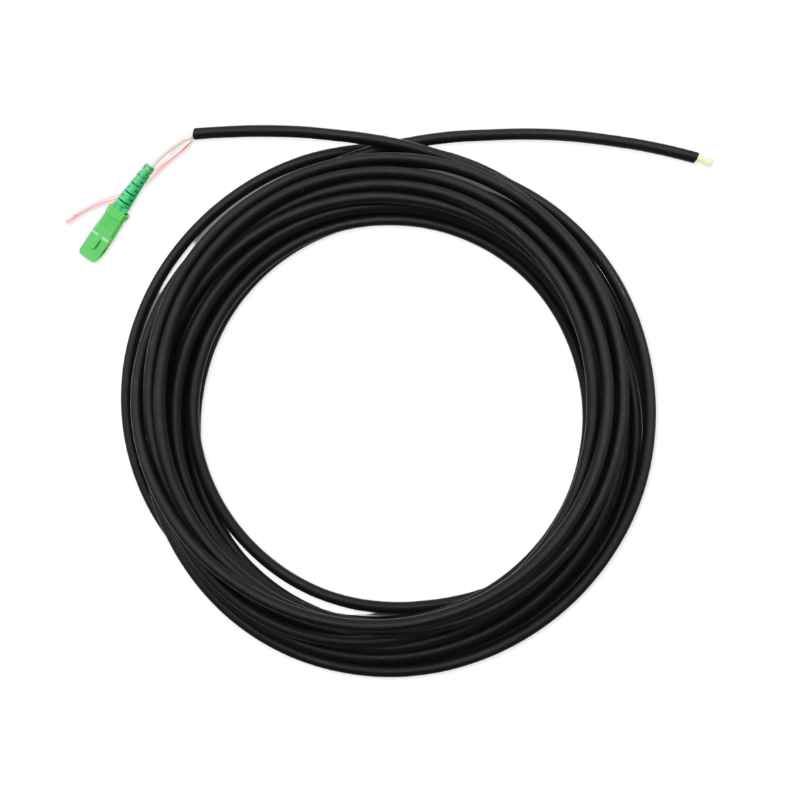

Paired with the CSP is the dual-sheath 3mm aerial drop cable, engineered for exceptional tensile strength, UV protection and installation flexibility. Its bend-insensitive fibre ensures easy routing into the premises, while the robust sheath and aramid reinforcement allow safe overhead spans and reliable façade attachment.

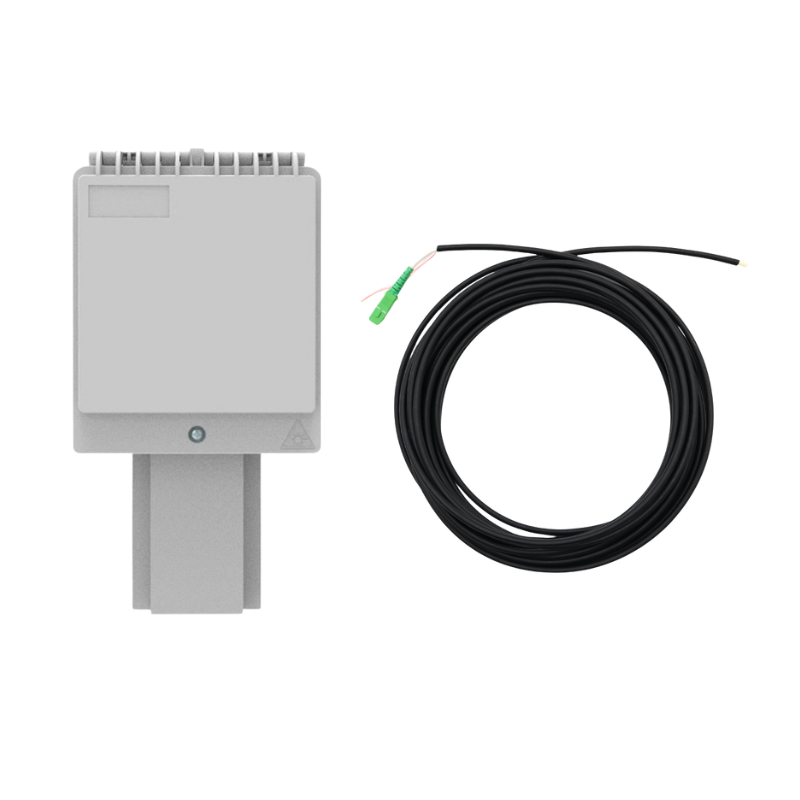

Together, this bundle provides an installer-ready FTTH solution from pole or façade directly into the property.

Key Features:

CSP – Customer Service Point

• Compact wall-mounted enclosure

• Capacity for up to 24 splices

• Compatible with SC (2 ports) or LC (4 ports)

• Two-layer fibre management for clean routing

• Accepts 3–7mm drop cables

• Made from fire-resistant, UV-stable material

• IP55 rating for outdoor use

• Compatible with standard UK ducting and capping

Dual Sheath Aerial Drop Cable:

• Designed for overhead spans up to 70m

• Suitable for façade or duct deployment

• 3mm outer diameter for easy routing

• Polyurethane (PUR) dual sheath for abrasion, wear, and UV resistance

• Reinforced with aramid yarns for tensile strength

• Bend-insensitive G.657A2/B3 fibre

• Operating temperature: –20°C to +60°C

• Lightweight and easy to install

Technical Specifications:

CSP

• Splice capacity: 24 fibres

• Mounting: Wall-mounted

• Drop cable diameter supported: 3–7mm

• Material: PC/ABS

• IP rating: IP55

• Colour options: Black, Grey, Brown

Dual Sheath Cable:

• Fibre type: G.657A2/B3

• Cable diameter: 3mm

• Sheath: Polyurethane (PUR)

• Reinforcement: Aramid yarns

• Tensile strength: 300N

• Crush resistance: 1000N/100mm

• Temperature range: –20°C to +60°C

Benefits:

• Complete FTTH bundle for overhead and façade entry

• Installer-friendly design with fast, tidy cable management

• High mechanical resistance for long-term outdoor performance

• Excellent bend radius for easy internal routing

• Ensures a clean, professional finish at the customer entry point

• Ideal for UK FTTP rollouts, rural builds, and new-build developments
