EXFO Optical Power Expert - PX1-S-FOAS-54-GP-2267

EXFO Optical Power Expert PX1-S-FOAS-54-GP-2267

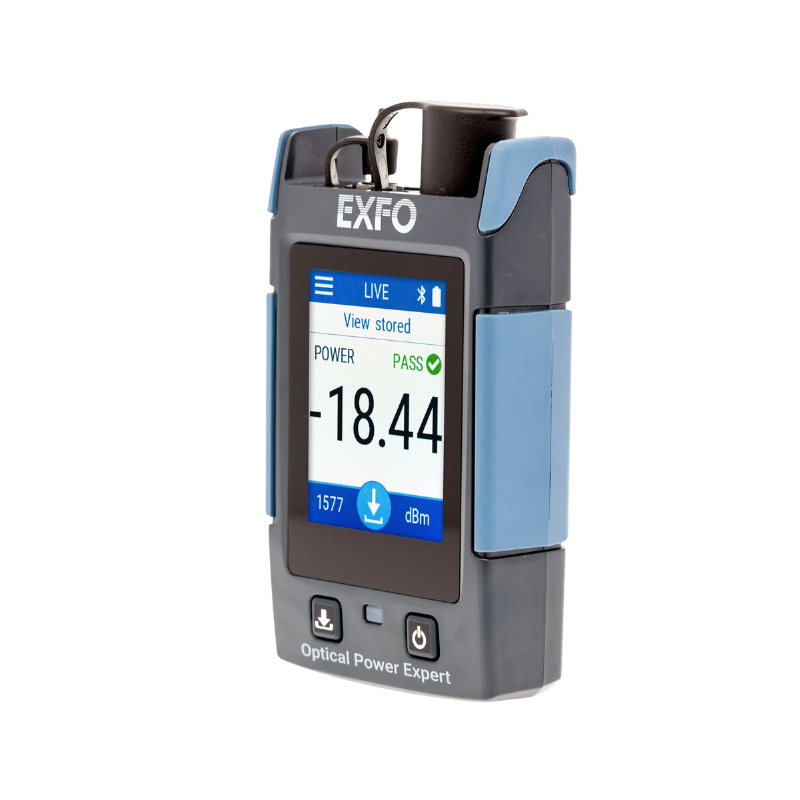

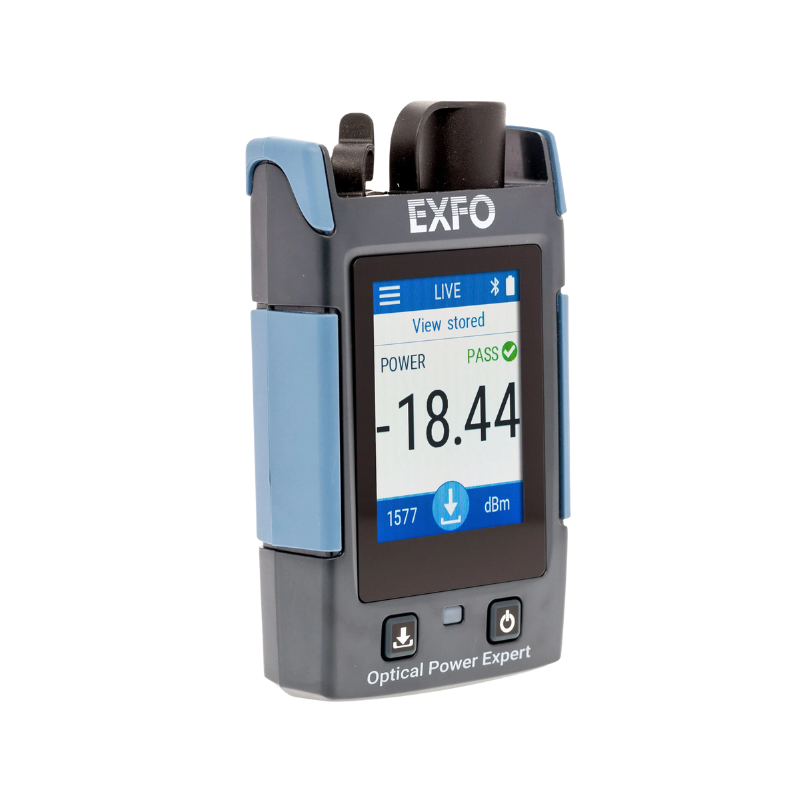

The EXFO PX1-S Optical Power Expert (PX1-S-FOAS-54-GP-2267) is a state-of-the-art connected optical power meter designed for telecom field professionals. Compact yet powerful, it measures absolute optical power (dBm) and link loss (dB) with unmatched precision. Featuring Bluetooth® 5.0 connectivity, onboard data storage, and USB-C reporting, the PX1 simplifies test result management and boosts efficiency across fibre testing workflows.

Built for the field, its rugged IP54-rated design ensures dust and water resistance, while the bright colour touchscreen delivers an intuitive user experience. With a lightning-fast boot-up, automated error-free wavelength recognition (with compatible EXFO light sources), and flexible reporting options, the PX1-S helps technicians complete jobs faster and more reliably.

Key Features:

• Measures optical power (dBm) and insertion loss (dB) with high accuracy

• Bluetooth 5.0 for wireless data transfer to smart devices

• USB-C connectivity for fast PC report generation via EXFO FastReporter software

• Colour touchscreen interface with intuitive operation

• Onboard storage for 1000 results

• Rugged IP54 construction for dust and water protection

• Lightning-fast boot-up – no offset nulling or warm-up required

• Tone detection: 270 Hz, 330 Hz, 1 kHz, 2 kHz

• Supports a wide range of telecom applications including PON, 5G, FTTx, LAN/WAN, CATV, CWDM and DWDM

• Backed by a 3-year warranty and calibration interval

Technical Specifications:

• Model: PX1-S-FOAS-54-GP-2267

• Measurement range: +10 to –70 dBm

• Calibrated wavelengths: 11 (830, 850, 980, 1300, 1310, 1450, 1490, 1550, 1577, 1590, 1625 nm)

• Wavelength range: 830 – 1625 nm

• Uncertainty: ±5%

• Units: dB, dBm, Watt (W, mW, µW, nW, pW)

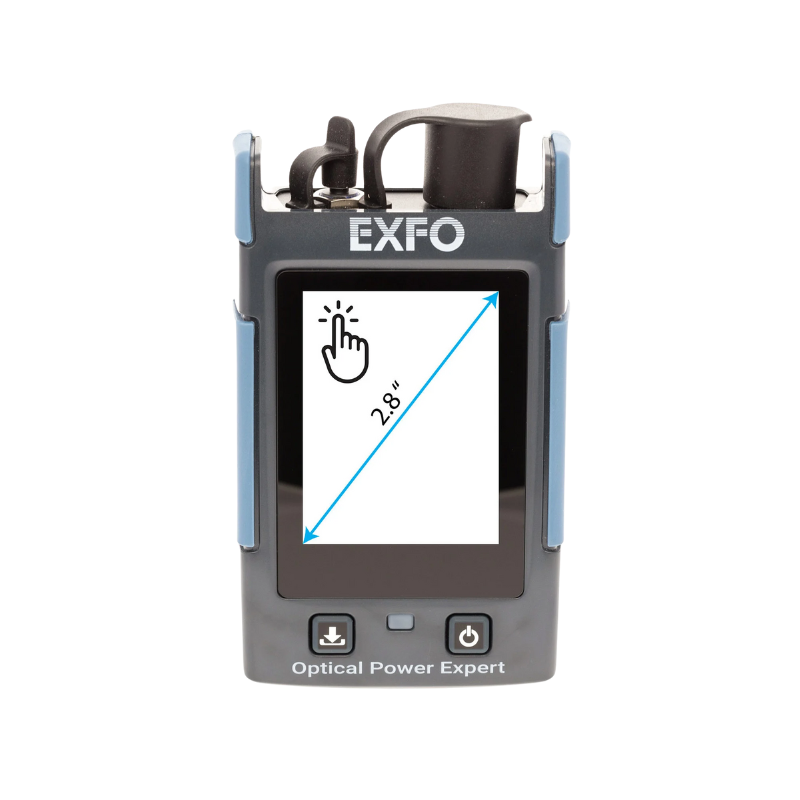

• Display: 2.8” colour capacitive touchscreen

• Interfaces: Bluetooth 5.0, USB Type-C

• Data storage: 1000 test results

• Battery: Rechargeable LiPo, ~10 hours autonomy, <3h charge time

• Dimensions: 133 x 78 x 30 mm

• Weight: 225 g (with battery)

• Protection: IP54 dust and water resistant

• Operating temperature: –10 °C to 50 °C

Included Accessories:

• FOAS-54 SC connector adapter

• Rechargeable battery (GP-2295)

• USB-A to USB-C cable (GP-3257)

• Calibration certificate
