ELINE® Extension Box 1F Transparent Cable

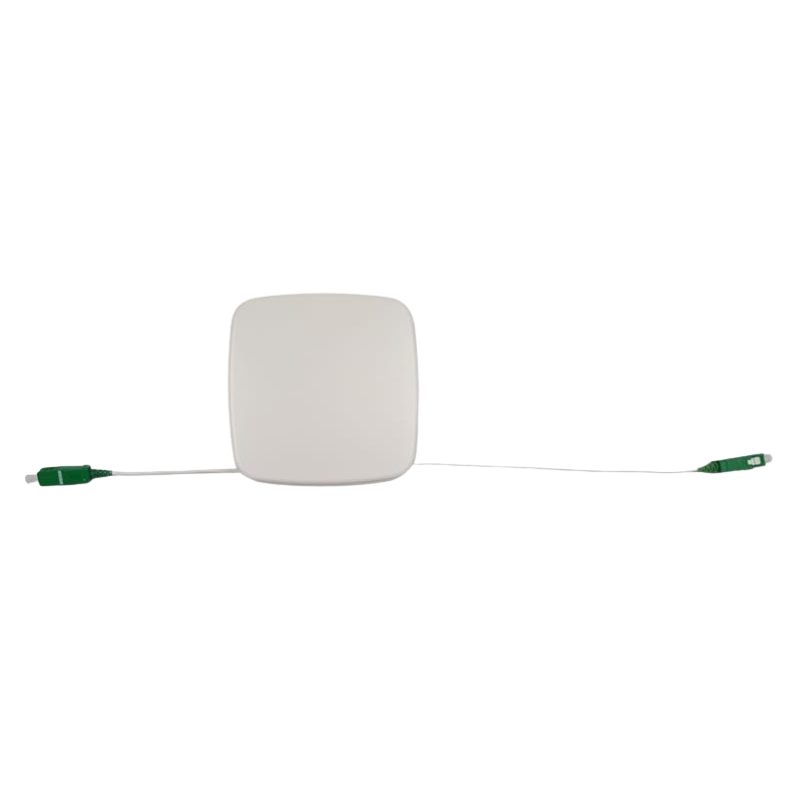

The ELINE® Extension Box Transparent Cable 1FO 40M SC/APC is an elegant, pre-terminated fibre optic solution designed for rapid and discreet deployment inside customer premises. Featuring 40 metres of transparent 0.9mm fibre and an additional 3 metres of 2.8mm white LSZH cable—both with SC/APC connectors—this unwinder box enables simple and secure connection between an ONT and the customer's point of entry. Its compact, neat design ensures easy mounting in residential spaces while ensuring a protected fibre loop with minimum bend radius maintenance. Ideal for FTTH installations where aesthetics and reliability are paramount.
Key Features:
- 40m of transparent 0.9mm nylon-sheathed fibre for discreet routing
- 3m of white Ø2.8mm LSZH fibre for connection to ONT
- Both ends are pre-terminated with SC/APC connectors
- Compact and neat ABS/PC enclosure (98mm x 98mm x 35mm)

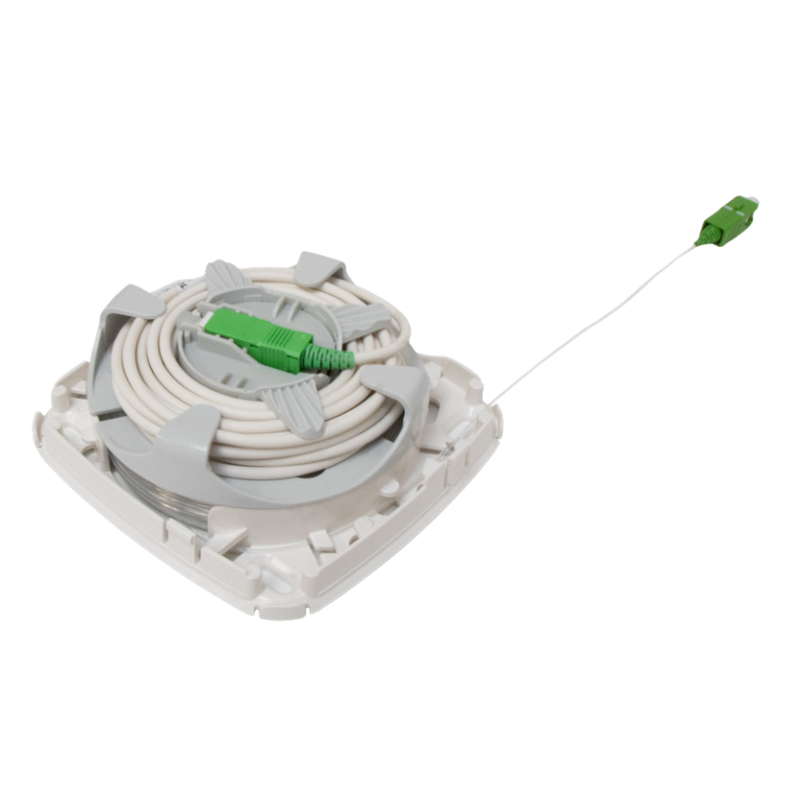

- Built-in unwinder reel for managing overlength fibre
- Supports bend radius ≥ 5mm for fibre protection
- Quick and tidy installation with minimal visual impact
- Compliant with ITU G.657B3 fibre and IEC-61300-3-4 standards
Technical Specifications:
- Fibre Type: ITU G.657B3
- Connector Type: SC/APC both ends
- Box Material: ABS/PC
- Box Colour: White (RAL 9010)
- Cable Lengths: 40m (Ø 0.9mm transparent nylon sheath), 3m (Ø 2.8mm LSZH white)
- Optical Performance: Insertion Loss ≤ 0.3dB, Return Loss ≥ 60dB
- Operating Temperature: -5°C to +45°C
- Bend Radius: ≥ 5mm
- Dimensions: 98mm x 98mm x 35mm
- Weight: 200g
