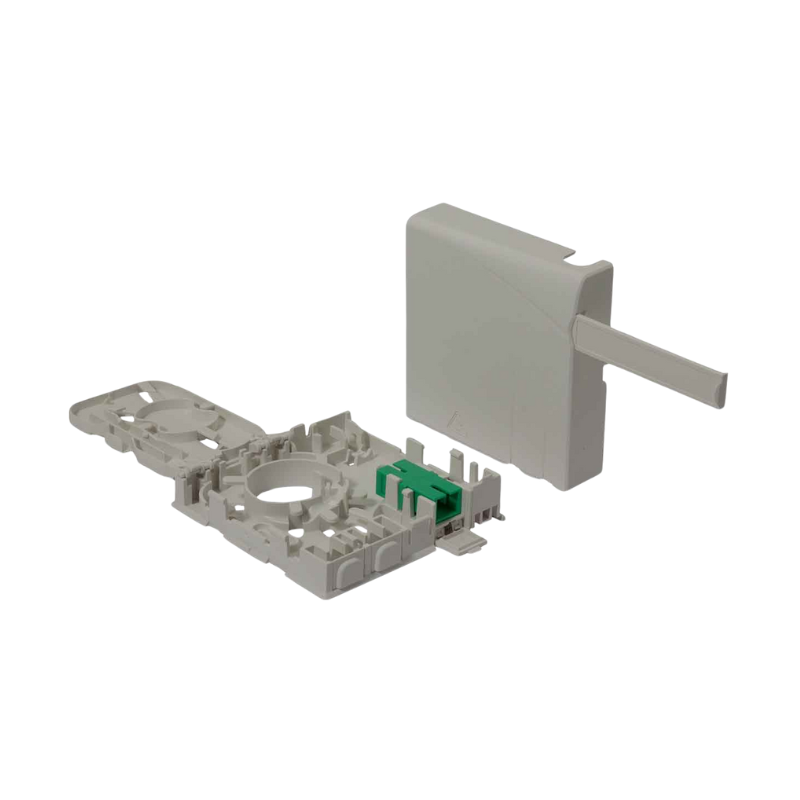

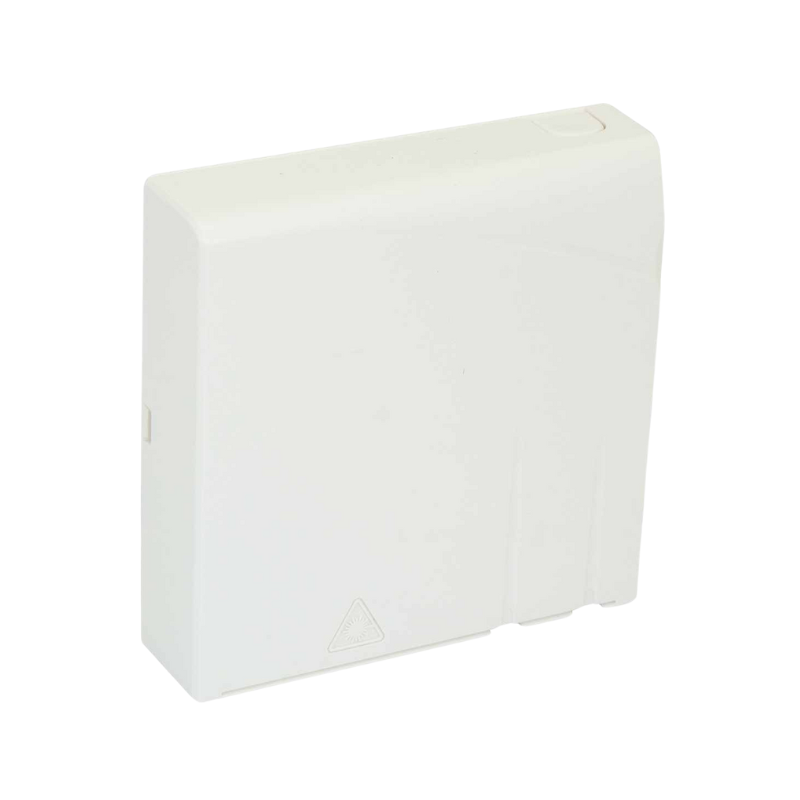

PTO ONE Plus ID with SC/APC Adaptor & Pigtail

The PTO ONE Plus ID is a pre-terminated optical outlet designed for efficient, compact FTTH installations. Supplied with a SC/APC adaptor and pigtail, this discreet unit ensures reliable optical performance in residential or commercial indoor networks.

Its UV-protected ABS-PC body offers enhanced protection, while integrated fibre guidance ensures optimal bend radius control. The identification window allows easy labelling or QR code integration, ideal for scalable fibre deployments.

Key Features:

• Pre-terminated with SC/APC adaptor and pigtail

• Discreet, compact design with clear ID window

• Internal bend radius management >15mm

• Multiple cable entry points for flexible setup

• Optimised for rapid installation and re-entry

• Impact-resistant (IK05) and IP40-rated enclosure

• Can serve as a transition box for FTTH networks

Technical Specification:

• Capacity: 1F or 2F

• Optical Performance (IEC-61300-3-4): IL < 0.3dB / RL < -60dB

• Bending Radius: >15mm

• Tensile Strength: >5daN

• Protection Rating: IP40

• Impact Resistance: IK05

• Material: ABS-PC, UV protected

• Colour: White (RAL 9010)

• Mounting Plane: 60mm interaxe spacing
