eline® Floor Box Reel – 12F LC/APC-LC/APC - 20m

eline® FB Reel – 12F LC/APC

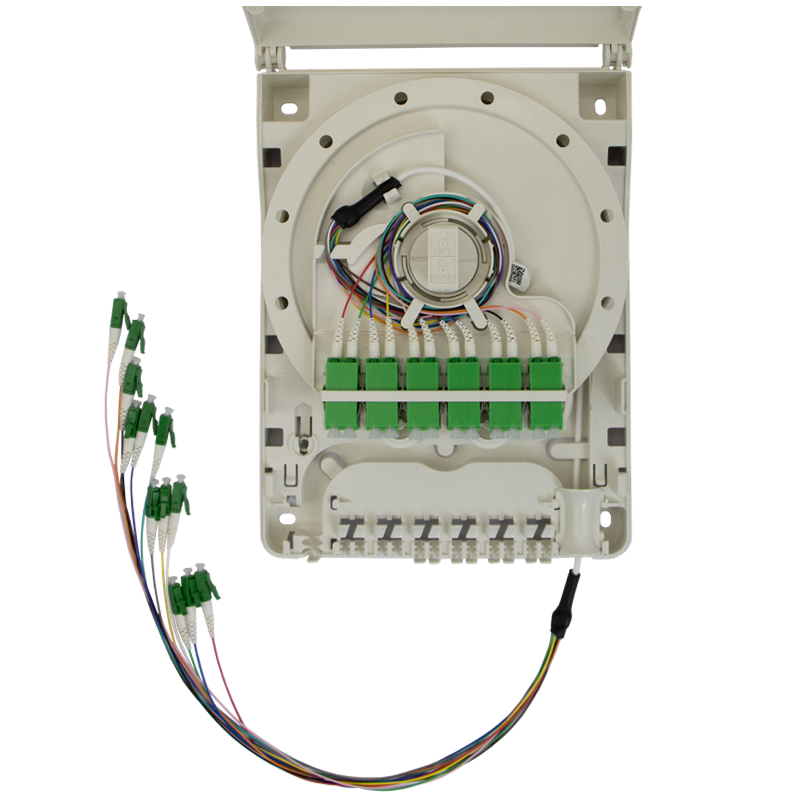

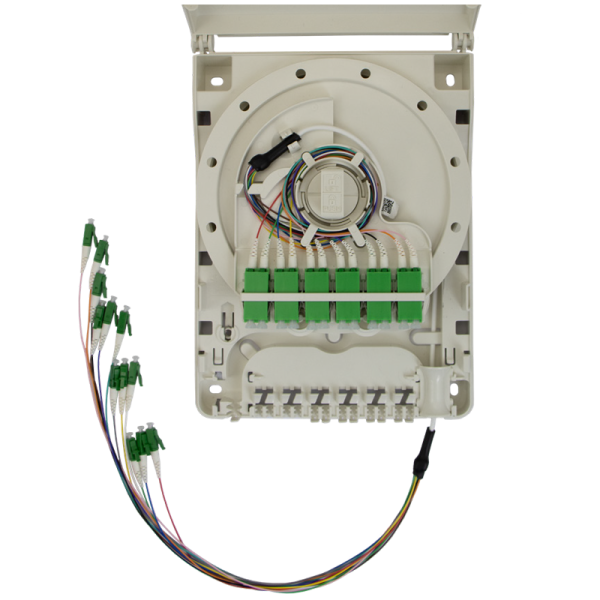

The eline® FB Reel 12F is a compact, pre-connectorized fibre solution designed for fast, reliable deployment from the floor to the building entry point (BEP). With capacity for up to 12 LC/APC connections, the FB Reel ensures secure fibre management in multi-dwelling units (MDUs) and commercial buildings.

Its 20m integrated cable storage inside the floor box, combined with additional “pizza box” packaging for longer lengths, makes installation simple and efficient. The reel includes a secure locking system, bend radius protection, and a snap-lock cover that opens to 100° for convenient access during installation.

Key Features:

• Pre-connectorised fibre reel with 12 LC/APC connections

• Integrated 20m cable storage inside the floor box

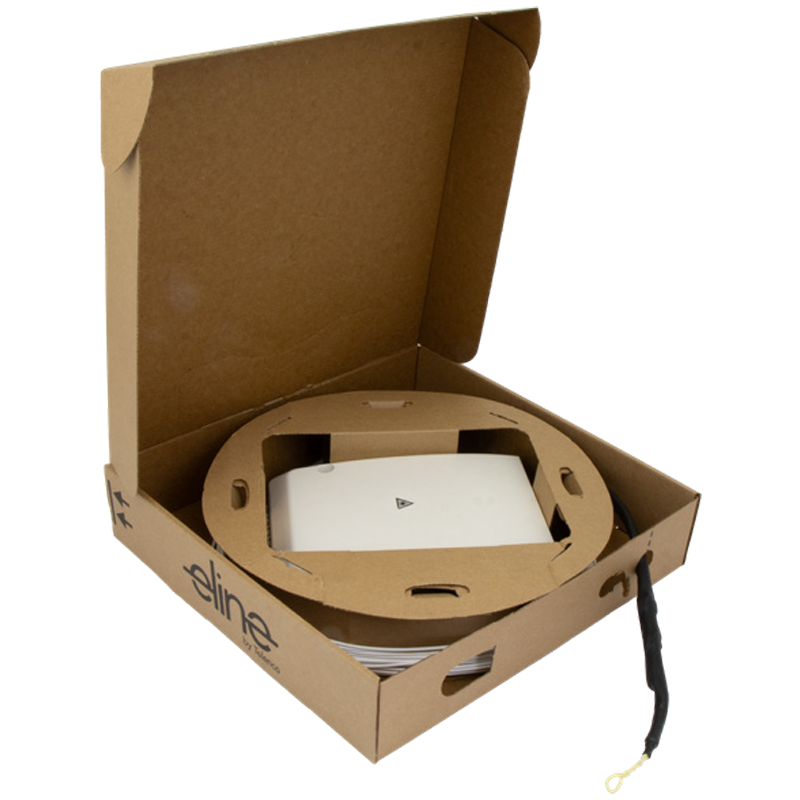

• Optional +40m extension via external reel (“pizza box”)

• Bend radius fully protected during pulling operations

• Spool lock system with 12 lock positions

• Snap-lock cover opens to 100° for easy handling

• Impact resistance IK07 & ingress protection IP40

• Fire-rated: UL94-V0 (box), CPR B2ca, s1, a1, d1 (cable)

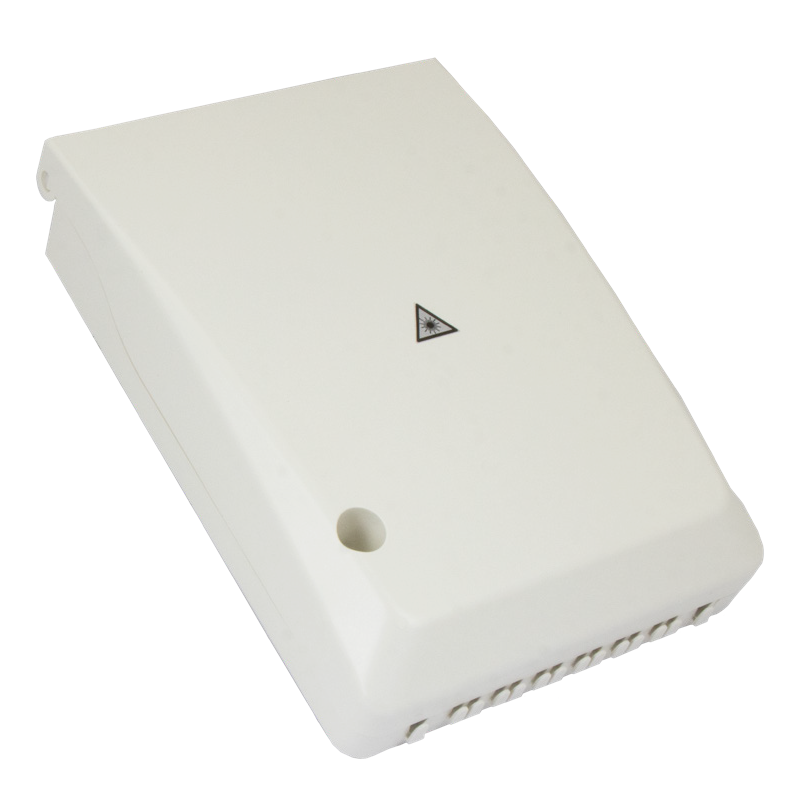

• Compact ABS/PC housing in white (RAL 9010)

Technical Specifications:

• Dimensions (floor box): 225 x 160 x 50 mm

• Material: ABS/PC, recycled base plate & spool

• Colour: White (RAL 9010)

• Operating Temperature: -10°C to +60°C

• Impact Resistance: IK07

• Ingress Protection: IP40

• Fibre Type: ITU-T G657-A2

• Connector: LC/APC duplex with transparent caps

• Optical Performance: IL/RL Grade B, RL ≥ 55 dB

• Weight: Lightweight compact design

• Additional Cable Length: +40m (total 60m with extension reel)
