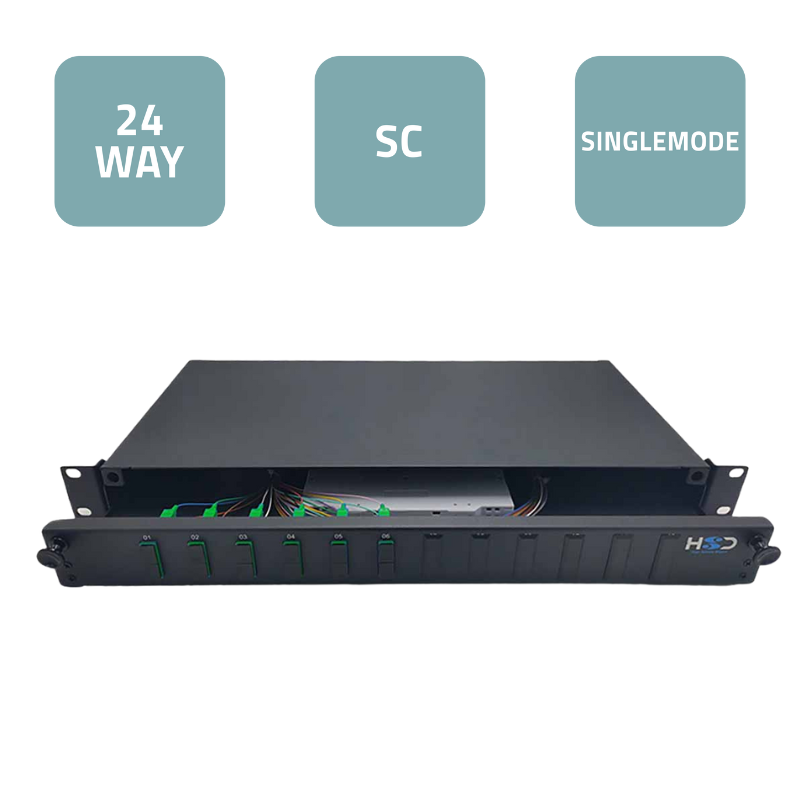

Sliding 19” Drawer 1U – 12 SC/APC Duplex G.657A2
This part-loaded 1U Sliding Drawer Patch Panel offers a practical and scalable solution for managing single-mode G.657A2 fibre networks. Pre-fitted with 6 SC/APC Duplex adaptors and 12 SC/APC pigtails (9/125 µm), this patch panel supports 12 active fibres out of a 24-fibre maximum capacity. The sliding mechanism provides easy access for splicing and patching, making it ideal for FTTH networks, street cabinets, and central office deployments where future expansion is expected.
Key Features:
-
12 SC Duplex port capacity (24 fibres total)
-
Equipped with 6 x SC/APC Duplex adaptors (12 fibres active)
-
Includes 12 x SC/APC G.657A2 pigtails (9/125 µm)
-
Sliding drawer design for front-access splicing and patching
-
1U height, fits standard 19” rack or cabinet
-
Supplied with splice tray, fixing kit, grommets, and cable ties
-
Bend-insensitive G.657A2 fibre for tight-routing installations
-
Suitable for FTTH rollouts, telecom racks, and access network nodes
Technical Specification:
-
Panel Type: Sliding fibre patch drawer
-
Size: 1U (19” rack-compatible)
-
Adaptors Installed: 6 x SC/APC Duplex (Green)
-
Pigtails Included: 12 x SC/APC G.657A2 (9/125 µm)
-
Maximum Capacity: 12 SC Duplex adaptors / 24 fibres
-
Fibre Type: G.657A2 single-mode
-
Material: Powder-coated steel
-
Application: FTTH, PON, backbone and distribution fibre networks
|
