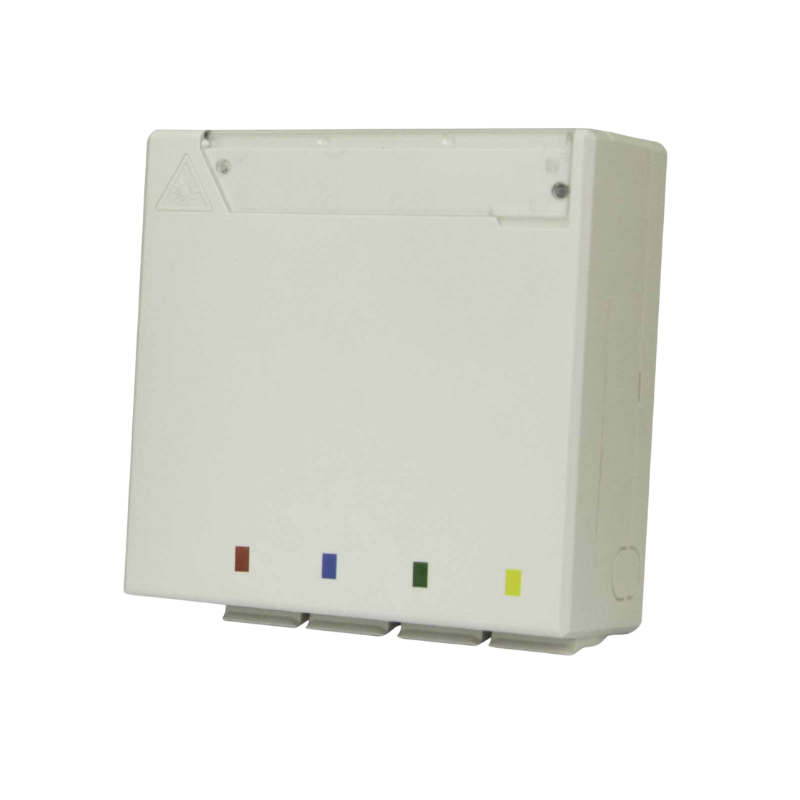

OTO HESTIA 4F with Adaptors and Pigtails SC/APC – Pack of 20

The OTO HESTIA 4F is a high-capacity optical termination outlet tailored for FTTH networks in residential and commercial environments. Supplied with four pre-installed SC/APC adaptors and pigtails, this outlet supports easy and efficient splicing while offering a compact, discreet form factor. Its modular design and flexible mounting options make it ideal for wall or DIN rail installations. Designed for future scalability, the 4-fibre capacity supports multi-operator or multi-service environments.

Key Features:

• Supplied with 4x SC/APC adaptors and 4x SC/APC pigtails

• Accommodates up to 4 connectors and 4 fusion splices

• Compact footprint with reversible tray for optimal cable management

• Multiple cable entry options (rear, top, bottom, side – up to Ø5.2mm)

• Transparent ID label cover with laser/dust protection

• Wall or DIN rail mounting configurations

• Ideal for multi-operator or triple-play FTTH deployments

Technical Specifications:

• Capacity: 4 SC connectors and 4 splice holders

• Bending radius: ≥15mm

• Optical performance (IEC-61300-3-4): IL ≤ 0.3dB, RL ≥ 60dB

• Material: ABS-PC, UL94V0 flame-retardant

• Colour: RAL 9010 (White)

• UV-resistant

• Dimensions: 80 x 80 x 24mm (without mounting plate)

• Operating temperature: -10°C to +60°C
