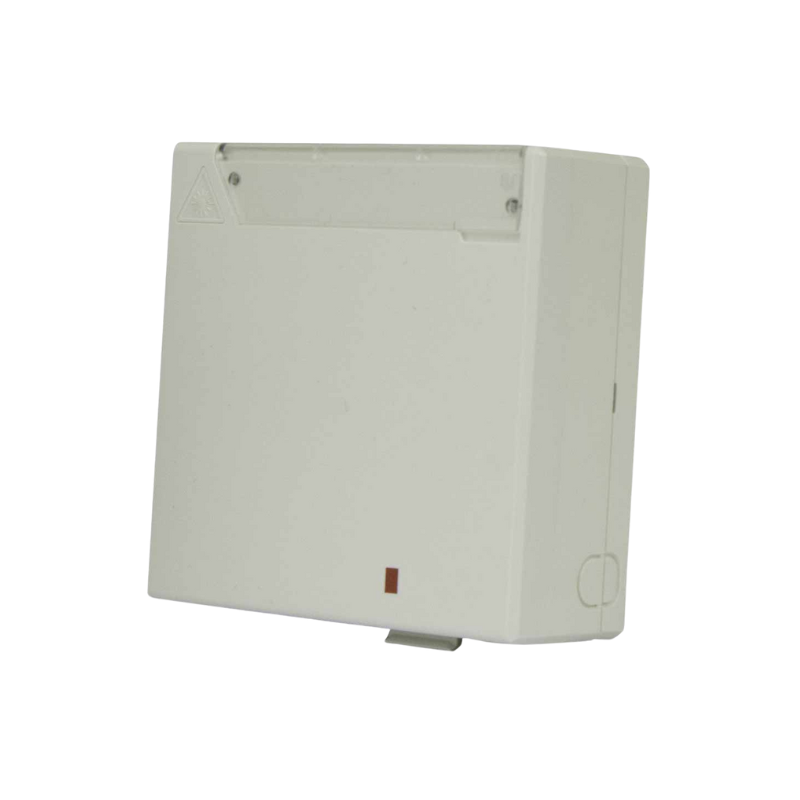

OTO HESTIA 1F with Adaptor and Pigtail SC/APC

The OTO HESTIA 1F is a compact optical termination outlet designed for customer premises. Ideal for FTTH deployments, it comes equipped with a pre-installed SC/APC adaptor and pigtail, ensuring fast and secure fibre terminations. With a minimal installation footprint and multiple cable entry points, this outlet is suitable for wall or DIN rail mounting, including tight corner installations. It features integrated laser/dust protection, reversible tray design, and a transparent front flap for subscriber labelling.

Key Features:

• Compact and ultra-flat design (24mm depth without mounting plate)

• Pre-assembled with SC/APC adaptor and pigtail

• Reversible tray for flexible field installation

• Cable entry from rear, top, bottom, or side (Ø up to 5.2mm)

• Transparent flap for ID label protection

• Laser and dust protection on optical ports

• Wall or DIN rail mounting options

• Ideal for FTTH indoor installations

Technical Specifications:

• Capacity: 1 SC connector and 1 splice

• Bending radius: ≥ 15mm

• Optical performance: IL ≤ 0.3dB, RL ≥ 60dB (IEC-61300-3-4)

• Material: ABS-PC

• Colour: White (RAL 9010)

• Dimensions: 80 x 80 x 24mm (without plate)

• Weight: 0.1kg

• UV-resistant and UL94V0 flame retardant

• Operating temperature: -10°C to +60°C
