ELINE BEP S (Building Entry Point ) 36F w 6 SC/APC adaptors

ELINE BEP S (Building Entry Point ) 36F w 6 SC/APC adaptors

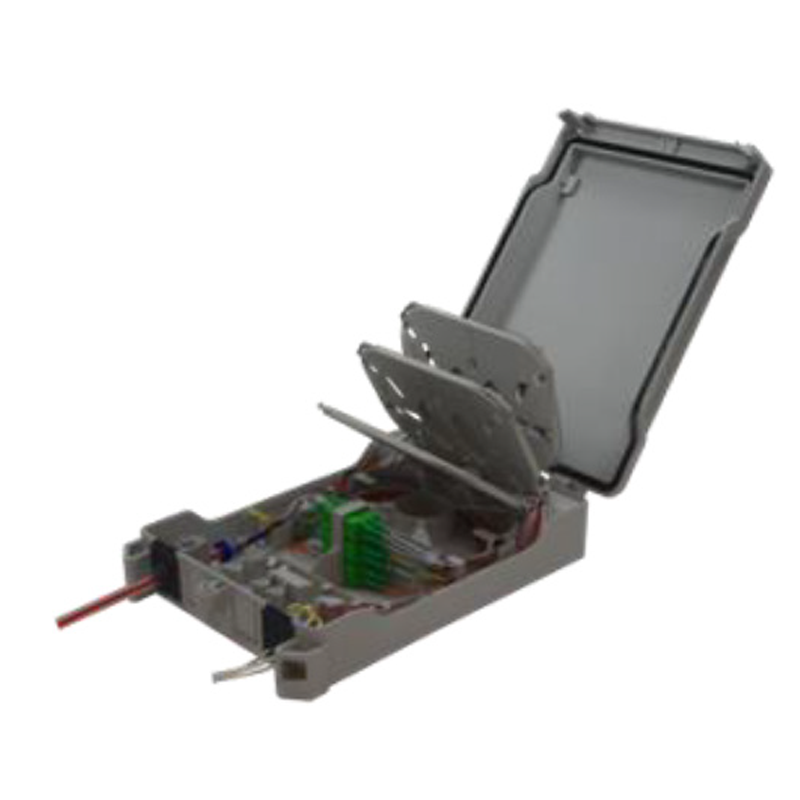

The Telenco ELINE BEP S Building Entry Point is a compact fibre enclosure designed for residential and small commercial applications, providing secure and efficient fibre termination at the building entry. This version is supplied with 6 SC/APC adaptors, supporting quick connections for FTTH deployments.

Constructed from durable PC/ASA with UV and fire resistance (V0), the BEP S delivers long-term reliability indoors and outdoors. Its IP55 water resistance and IK07 impact resistance ensure robust protection against environmental and mechanical stress.

The enclosure accommodates cable inputs from 2mm to 12mm, with capacity for up to 12 drop cables (Ø4–8mm) or 36 micro-drop cables (Ø2–3mm). Inside, a modular tray system supports 3 splice trays (12 FO each) for a total of 36 splices, compatible with both heatshrink and crimp (ANT) splice protectors.

Splitter slots provide space for 3 × 1:4 PLC splitters or 1 × 1:8 splitter, enhancing flexibility for network distribution. Compact in size (270 × 180 × 60 mm) and lightweight (0.8–0.9 kg), the BEP S offers a discreet yet durable solution for fibre access at the network demarcation point.

Key Features & Technical Specifications

• Pre-equipped with 6 SC/APC adaptors (capacity up to 7 SC or 14 LC connections)

• Splice capacity: 36 fibres (3 trays × 12 FO)

• Splitter capacity: 3 × 1:4 PLC or 1 × 1:8 PLC splitters

• Cable input range: Ø2–12mm

• Drop cable output capacity: 12 × Ø4–8mm or 36 × Ø2–3mm

• Dimensions: 270 × 180 × 60 mm

• Weight: 0.8–0.9 kg

• Protection rating: IP55 water resistance, IK07 impact resistance

• Material: PC/ASA with UV resistance and V0 fire resistance

• Mounting: Wall mountable with strong anchoring system

• Splice protection: Heatshrink or crimp (ANT) compatible

• Design: Compact, discreet, and reliable for FTTH building entry
