ELINE BEP M (Building Entry Point ) w 36 SC/APC adaptors

ELINE BEP M (Building Entry Point ) w 36 SC/APC adaptors

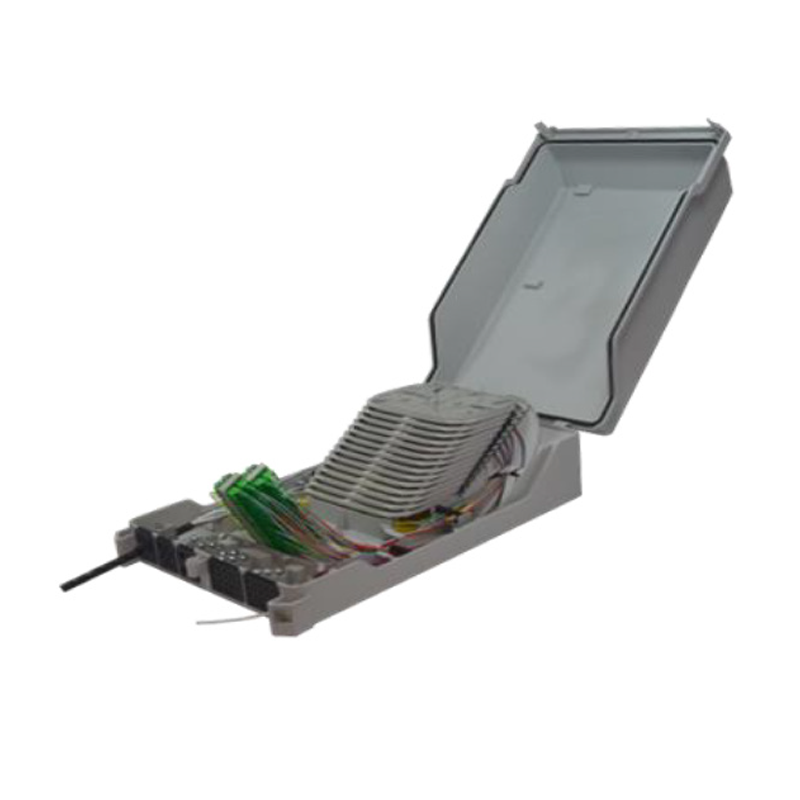

The Telenco ELINE BEP M Building Entry Point is a robust, discreet, and high-capacity enclosure designed for fibre access in residential and commercial buildings. With factory-fitted 36 SC/APC adaptors, it provides a ready-to-deploy solution for efficient fibre termination and distribution.

Constructed from durable PC/ASA material with UV and fire resistance (V0), the BEP M is engineered to withstand long-term outdoor or indoor use. Its IP55 water resistance and IK07 impact resistance ensure reliable protection in demanding environments.

The enclosure accommodates a wide range of cable types, supporting cable inputs from 2mm to 12mm, up to 20 drop cables (Ø4–8mm), or 65 micro-drop cables (Ø2–3mm). Inside, a flexible tray system provides capacity for up to 168 fibre splices, compatible with both heatshrink and crimp splice protectors.

Designed with versatility in mind, the BEP M also integrates PLC splitter capacity (up to 6 × 1:4, 6 × 1:8, 2 × 1:16, and 1 × 1:32), making it a future-ready solution for FTTH and FTTB networks. The unit’s compact 400 × 250 × 110 mm design ensures discreet installation, while the strong anchoring system guarantees secure wall mounting.

Key Features & Technical Specifications

• Pre-equipped with 36 SC/APC adaptors (capacity for 36 SC or 72 LC connections)

• Cable input range: 2–12mm diameter

• Drop cable output capacity: Up to 20 × Ø4–8mm or 65 × Ø2–3mm

• Splice trays: 12 trays × 14 FO (total 168 splices)

• Splitter capacity: 6 × 1:4, 6 × 1:8, 2 × 1:16, 1 × 1:32 PLC splitters

• Dimensions: 400 × 250 × 110 mm

• Weight: 1.9–2.15 kg

• Protection rating: IP55 water resistance, IK07 impact resistance

• Material: PC/ASA with UV resistance and V0 fire rating

• Mounting: Wall mountable

• Splice protection: Compatible with heatshrink or crimp (ANT) splice protectors

• Design: Discreet visual impact with strong anchoring system
