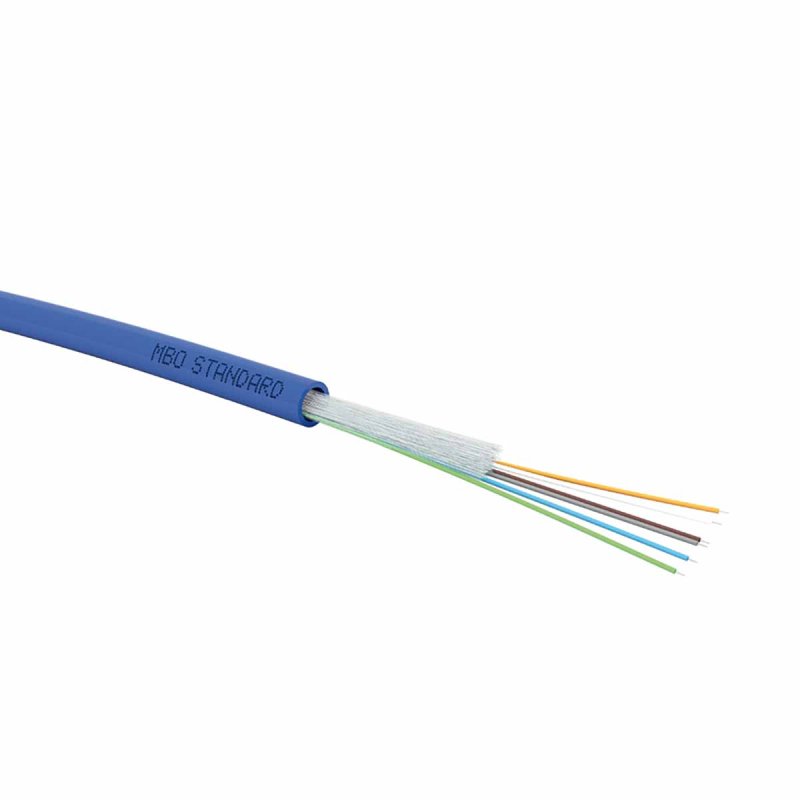

Designed for high-speed networks, this Tight-Buffered 900µm OM4 optical fiber cable is ideal for LAN, campus, or backbone installations. Suitable for various environments – residential, industrial, or ERP – it ensures performance and durability with its LSZH (Low Smoke Zero Halogen) sheath and waterproof design for indoor and outdoor use. It features Rapid Strip technology (RS 900) for simplified stripping and excellent fire performance according to Euroclass Dca-s1,d1,a2 standards. Technical specifications: - Number of fibers: 6 strands OM4 multimode
- Structure: Tight-Buffered 900µm – Rapid Strip Fiber (RS900)
- Outer Sheath: Black LSZH – Low Smoke Emission
- Nominal Diameter: 6.6 mm
- Weight: 39 kg/km
- Minimum Bending Radius: 10x cable diameter
- Crush Resistance: 200 N/cm
- Maximum Tensile Strength: 800 N
- Temperature Range: -40°C to +70°C (storage), -5°C to +50°C (installation)
- Standards: IEC 60332-1, EN 50399, IEC 60754-2, EN 60793, EN 50173-1, ISO 11801
- Application: Ethernet networks up to 10 Gbit/s, FDDI, ATM
|
