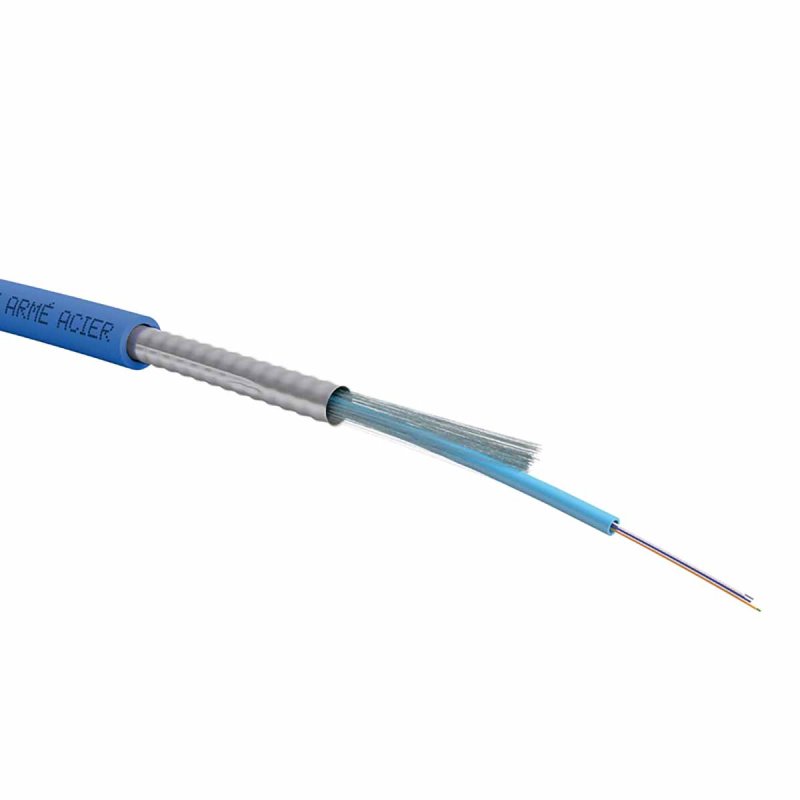

Discover our very high-speed data cables, specially designed for local computer networks. Perfect for campus connections, ring connections, and horizontal connections, they are suitable for all types of environments: residential, tertiary, industrial, and Public Access Buildings (ERP), indoors and outdoors.
Technical Specifications
- Capacities: 6 and 12 FO / 24 FO (dual-tube)
- Temperature range:
- Transport and storage: -40°C to +70°C
- Installation: -5°C to +50°C
- Operation: -40°C to +70°C
- Maximum traction: 1200 N
- Crush resistance: 500 N/cm
- Minimum bending radius: 150 mm
- Packaging: drums of 2100 m
- Nominal sheath thickness: 1.85 mm
- Nominal diameter: 8.7 mm
- Nominal weight: 83 kg/km
Our cables are delivered with protective packaging, to be kept until their complete use.
Standards and compatibility
- Cable and fibers: EN 60793 / EN 60794-1
- Cabling systems: EN 50173-1 / ISO 11801
- Applications:
- IEEE 802.3 (10M to 10Gbit)
- IEEE 802.5 (Token Ring)
- ANSI X3T9-5 (FDDI)
- ATM (155, 622 Mbps and more)
Choose a high-performance and reliable cabling solution to optimize your network infrastructure.
