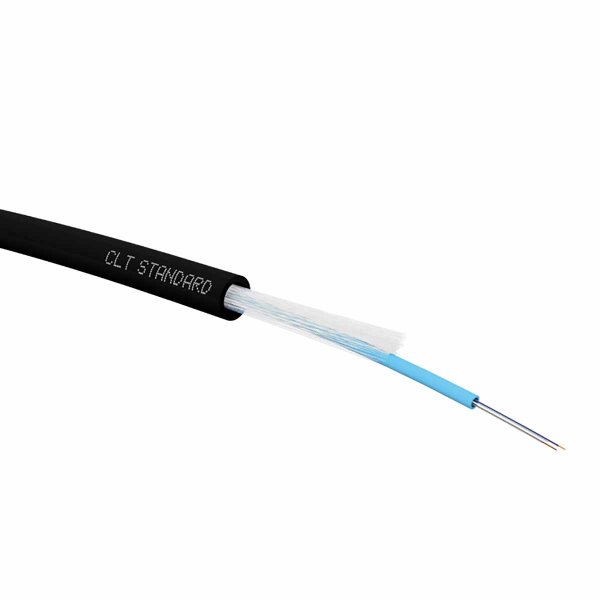

The 6FO single-mode free structure PE cable is designed to meet the requirements of high-speed networks, especially for computer links in environments such as campuses, highways, and horizontal links. This cable is ideal for indoor and outdoor installations, suitable for all types of environments, including residential, tertiary, industrial, or in Public Access Buildings (ERP).
Featuring a flexible inner tube and a black sheath, this cable is equipped with a rip cord that allows for simplified preparation and easy access to fibers, making interventions easier and reducing installation delays. Its optimized design ensures ease of use while maintaining optimal performance for ultra-fast data transmissions, with speeds ranging from 10Mbit to 10Gbit.
The 6FO single-mode cable is also designed for high crush resistance, with a maximum tensile strength of 1500N and a minimum bending radius of 10xD, ensuring reliability in challenging conditions.
Characteristics:
- High performance: G.652D single-mode
- Robust construction: 6 FO
- Cable diameter: 6mm
- Sheath color: black
- Nominal weight (kg/km): 31
- Compliance with standards: EN 60793 / EN 60794-1, EN 50173-1 / ISO 11801, IEEE 802.3 10M to 10Gbit / IEEE 802.5 Token ring ANSI X3T9-5 (FDDI) ATM (155, 622, ...).
