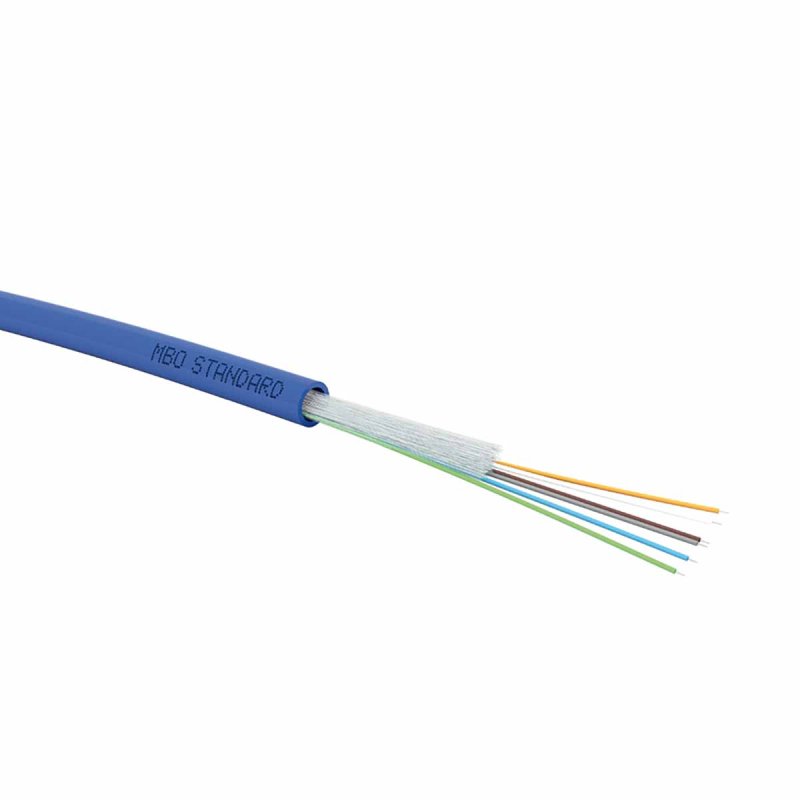

Designed for high-speed networks, this OM4 tight-structure 900µm fiber optic cable is ideal for LAN, campus, or backbone installations. Suitable for all types of environments – residential, industrial, or ERP – it ensures performance and durability thanks to its LSZH sheath (low smoke emission and halogen-free) and its waterproof design for indoor and outdoor use. It features Rapid Strip technology (RS 900) for simplified stripping and offers excellent fire performance according to Euroclass standards Dca-s1,d1,a2. Technical Specifications: - Number of Fibers: 24 OM4 multimode strands
- Structure: Tight 900µm – Rapid Strip (RS 900) Fiber
- Outer Sheath: Black LSZH – Low smoke emission
- Nominal Diameter: 9.8 mm
- Weight: 80 kg/km
- Minimum Bending Radius: 10x cable diameter
- Crush Resistance: 200 N/cm
- Maximum Tensile Strength: 1600 N
- Temperature Range: -40°C to +70°C (storage), -5°C to +50°C (installation)
- Standards: IEC 60332-1, EN 50399, IEC 60754-2, EN 60793, EN 50173-1, ISO 11801
- Usage: Ethernet networks up to 10 Gbit/s, FDDI, ATM
|
