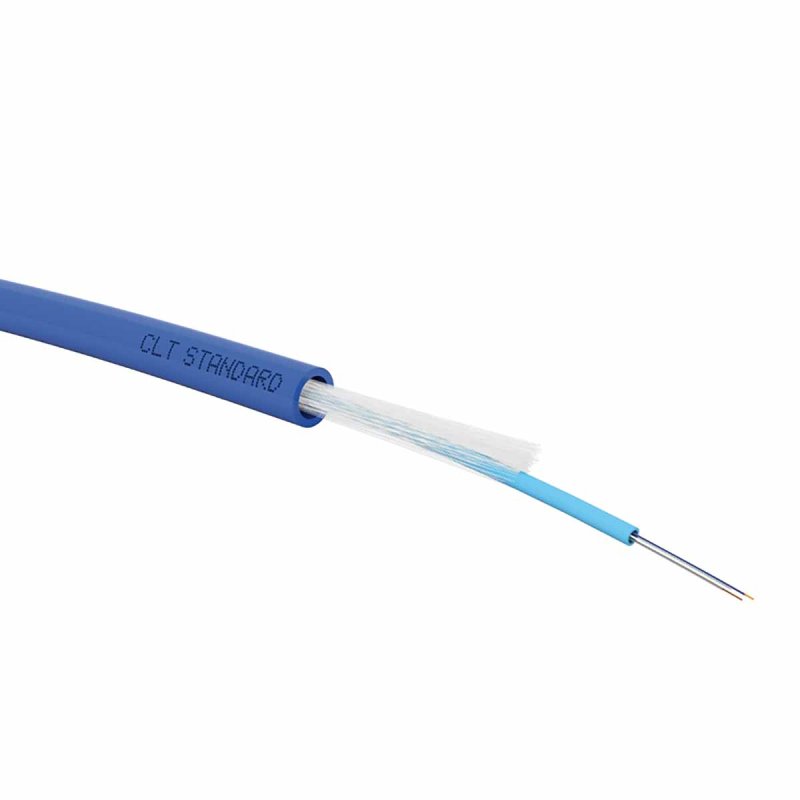

The 24-strand 250µm OM3 free structure cable is an ideal solution for high-speed installations, such as local area networks (LAN), data centers, and multimode fiber optic cabling applications. Designed with OM3 fibers, this cable can support high transmission speeds and long distances while offering high reliability. Its 250µm free structure ensures optimal flexibility for easy installation and splicing. The cable is also equipped with LSZH (Low Smoke Zero Halogen) sheath, offering increased safety in case of fire due to its low smoke emission and absence of halogens. It is perfectly suited for indoor installations in security-sensitive environments.
This cable is designed for multimode installations with speeds of up to 10 Gbit/s, ideal for modern network applications and high-performance infrastructures. Its robust design and compliance with the strictest standards make it a reliable choice for a wide range of applications
Technical specifications:
- Fiber Type: Multimode OM3 - 50/125 µm
- Number of Strands: 24 strands
- Structure: Free structure 250µm
- Outer Sheath: LSZH (Low Smoke Zero Halogen)
- Outer Diameter: 7.2mm
- Weight: 52 kg/km
- Maximum Tension: 1500 N
- Crush Resistance: 150 N/cm
- Minimum Bending Radius: 10 times cable diameter
- Operating Temperature: -20°C to +70°C
- Installation Temperature: -5°C to +50°C
- Storage Temperature: -40°C to +70°C
- Standards and Certifications:
- Euroclass Dca-s1,d1,a2
- EN 50173-1, ISO/IEC 11801
- Fire resistance: IEC 60332-1, EN 50399
- Low emission of acid gases: IEC 60754-2
