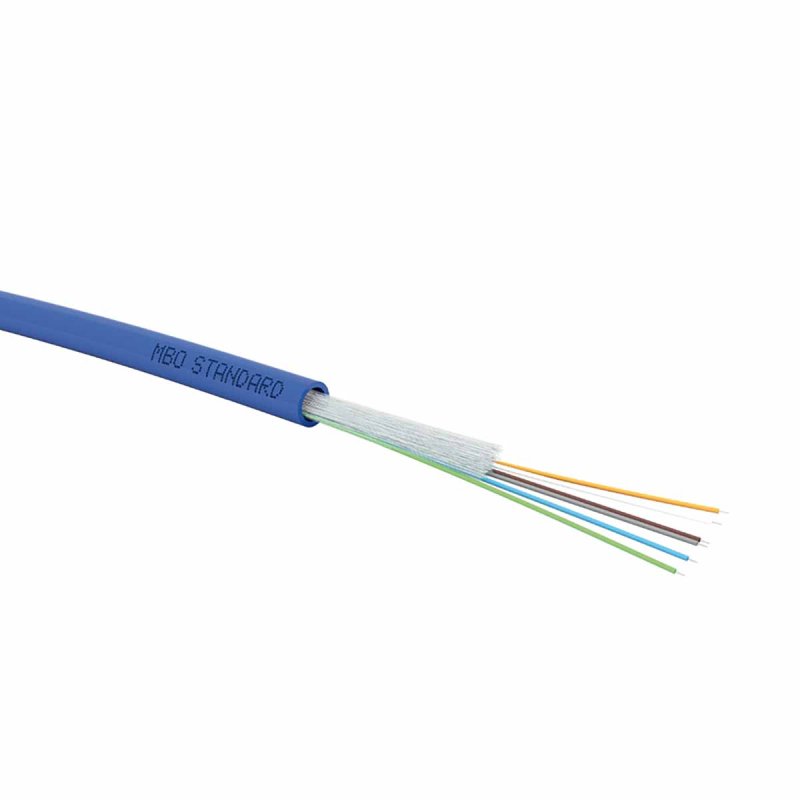

Designed for high-speed networks, this tight-buffered 900µm OM4 optical fiber cable is ideal for LAN, campus, or backbones installations. Suitable for all environments – residential, industrial, or ERP – it ensures performance and durability thanks to its LSZH sheath (low smoke emission and halogen-free) and waterproof design for indoor and outdoor use. It incorporates Rapid Strip technology (RS 900) for simplified stripping and has excellent fire performance according to Euroclass Dca-s1,d1,a2 standards. Technical Specifications: - Number of fibers: 12 OM4 multimode strands
- Structure: Tight-buffered 900µm – Rapid Strip Fiber (RS 900)
- Outer sheath: Black LSZH – Low smoke emission
- Nominal diameter: 7.5 mm
- Weight: 49 kg/km
- Minimum bending radius: 10x cable diameter
- Crush resistance: 200 N/cm
- Maximum tensile strength: 800 N
- Temperature range: -40°C to +70°C (storage), -5°C to +50°C (installation)
- Standards: IEC 60332-1, EN 50399, IEC 60754-2, EN 60793, EN 50173-1, ISO 11801
- Use: Ethernet networks up to 10 Gbps, FDDI, ATM
|
