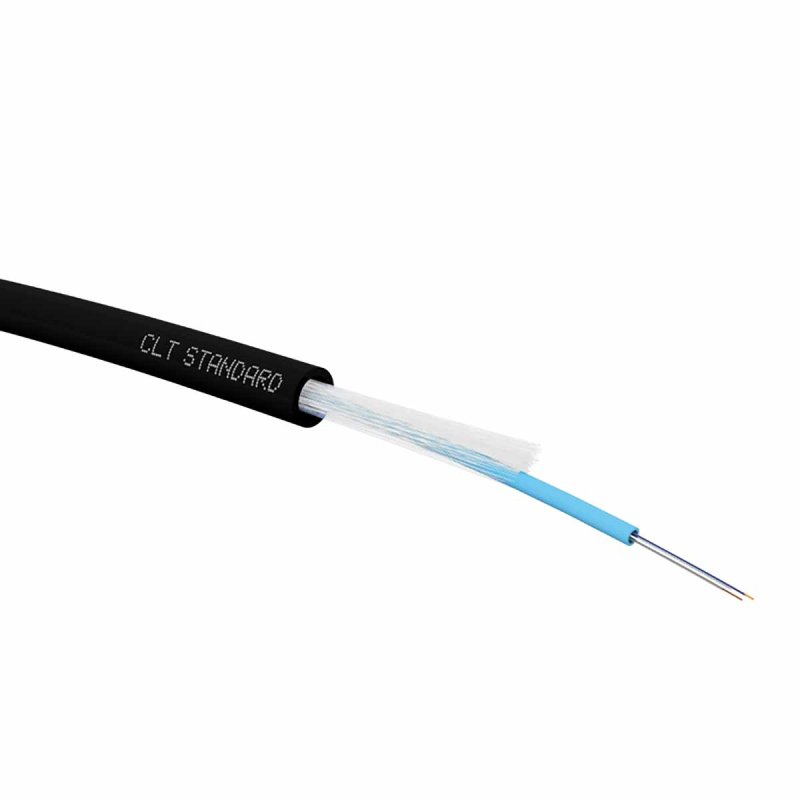

12FO single-mode free structure PE cable is specially designed to offer high-quality performance in local computer networks. This cable is ideal for high-speed connections in environments such as residential, commercial, industrial or Public Access Buildings (ERP), indoors or outdoors. It is equipped with a flexible inner tube and a ripping wire, making fiber preparation and access easier.
Its black, robust sheath, compliant with EN 60793 and EN 60794-1 standards, ensures optimal protection. The cable meets the high-performance cabling system requirements, with applications ranging from Ethernet 10M to 10Gbit, through IEEE 802.5 (Token Ring) and ATM (155, 622 Mbps) standards. Suitable for demanding installations, it benefits from a crush resistance of 150 N/cm and a maximum tensile strength of 1500 N, while being very easy to handle thanks to its minimum bending radius of 10xD.
Features :
- High performance : G.652D single mode
- Robust construction : 12 FO
- Cable diameter : 6mm
- Sheath color : black
- Nominal weight (kg/km) : 31
- Compliant with standards : EN 60793 / EN 60794-1, EN 50173-1 / ISO 11801, IEEE 802.3 10M to 10Gbit / IEEE 802.5 Token ring ANSI X3T9-5 (FDDI) ATM (155, 622, …).
