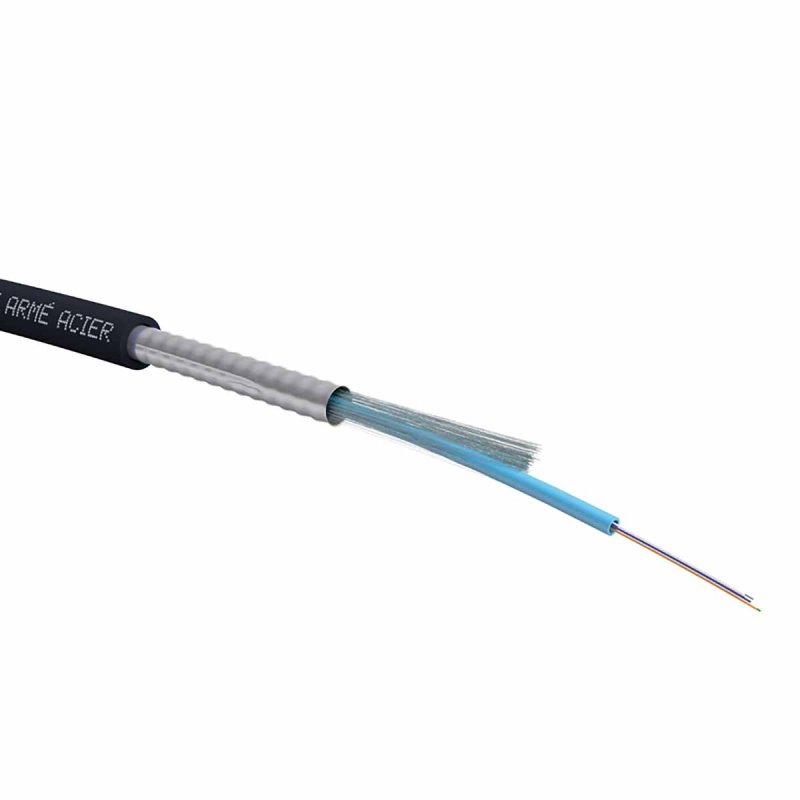

Discover our high-speed data cables, designed to optimize the performance of local computer networks. Ideal for campus links, backbones, and horizontal connections, they adapt to all types of environments: residential, tertiary, industrial, and Public Establishments (PE), indoors and outdoors.
Technical specifications
- Capabilities: 6 and 12 FO / 24 FO (bi-tube)
- Temperature range:
- Transport and storage: -40°C to +70°C
- Installation: -5°C to +50°C
- Operation: -20°C to +70°C
- Maximum traction: 1200 N
- Crush resistance: 500 N/cm
- Minimum bending radius: 150 mm
- Packaging: 2100 m spools
- Nominal sheath thickness: 0.9 mm
- Nominal diameter: 8.3 mm (6 and 12 FO) / 9 mm (24 FO)
- Nominal weight: 74 kg/km (6 and 12 FO) / 92 kg/km (24 FO)
Our cables are supplied with protective packaging, to be kept until their full use.
Standards and compatibilities
- Cable and fibers: EN 60793 / EN 60794-1
- Cabling systems: EN 50173-1 / ISO 11801
- Applications:
- IEEE 802.3 (10M to 10Gbit)
- IEEE 802.5 (Token Ring)
- ANSI X3T9-5 (FDDI)
- ATM (155, 622 Mbps and more)
Choose quality cables to ensure the reliability and performance of your network infrastructure.
