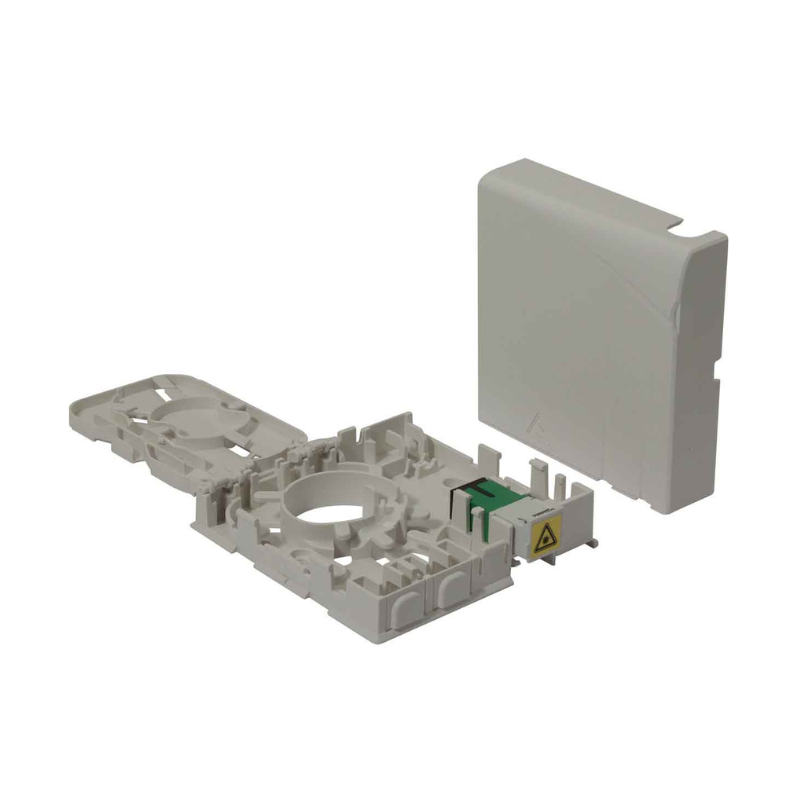

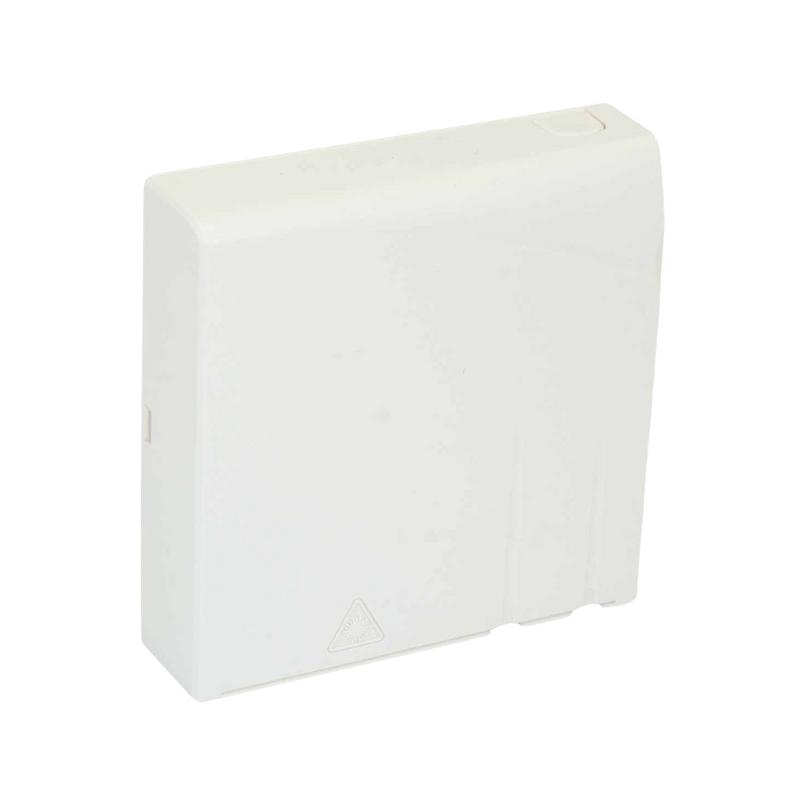

PTO ONE Fibre Optic Terminal Outlet
The PTO ONE is a compact and discreet fibre optic terminal outlet designed for seamless integration into FTTH and FTTO environments. Ideal for residential or commercial use, this model supports a single SC/APC connector, ensuring secure, high-performance fibre termination at the customer premises.
Its small form factor and minimalist design allow for flexible wall mounting in confined or visible spaces, while its robust ABS-PC construction ensures durability and protection. Featuring UV resistance and IP40 rating, the PTO ONE is engineered for fast, reliable, and long-lasting installation.
Key Features:
- Compact size: 80 × 80 × 20 mm for discreet installation
- Supports 2 optical fibre (900 μm)
- Accepts 1 SC/APC adaptor
- Integrated protective flap for connector security
- Single fibre storage level for easy management
- Compatible with Telenco’s LM2 drop cables
- Quick and simple wall mounting
- UV-resistant housing
- Ideal for indoor FTTH/FTTO transitions
Technical Specifications:
- Fibre Capacity: 2FO
- Insertion Loss (IL): < 0.3 dB
- Return Loss (RL): < –60 dB
- Material: ABS-PC
- Protection Rating: IP40
- Impact Resistance: IK05
- Colour: RAL 9010 (White)
- Dimensions: 80 mm (L) × 80 mm (W) × 20 mm (H)
- Net Weight: 0.6 kg
