A guide to choosing the correct CBS fibre-blowing machine
Selecting the appropriate fibre-blowing machine is crucial for ensuring the successful installation of fibre-optic cables. With the wide range of options available, choosing the right fibre-blowing machine requires careful consideration of various factors.
Understanding Your Requirements :
Before diving into the selection process, it's essential to understand your specific requirements and project objectives. Consider factors such as the length and type of fibre optic cables, the terrain and environment of the installation site, and the desired installation speed and efficiency.
Blowing Force :
The blowing force of a fibre-blowing machine determines its ability to propel fibre optic cables through ducts or microducts. Higher-blowing force machines are suitable for longer cable runs or installations in challenging environments. Assess your project's requirements to determine the optimal blowing force needed.
Cable Diameter Compatibility :
Ensure that the chosen fibre-blowing machine is compatible with the diameter of the fibre-optic cables you plan to install. Machines with adjustable settings or interchangeable adapters offer versatility and accommodate a wide range of cable sizes.
Ease of Operation and Maintenance :
Consider the fibre-blowing machine's ease of operation and maintenance. Look for features such as intuitive controls, ergonomic design, and easy access to components for routine maintenance tasks. A user-friendly machine will enhance efficiency and minimise downtime during installations.

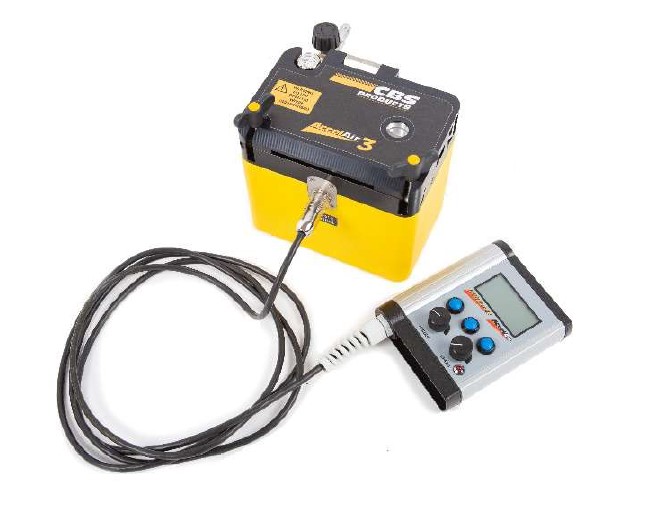

 AccelAir 3 |

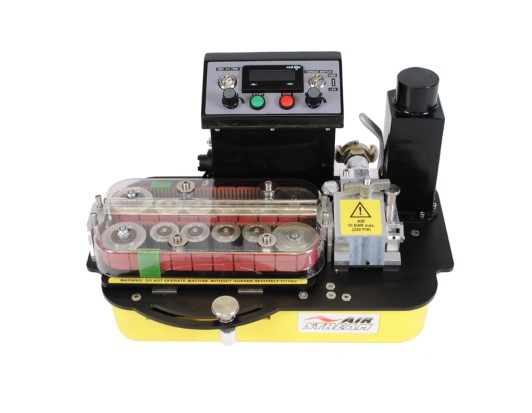

 Airstream |

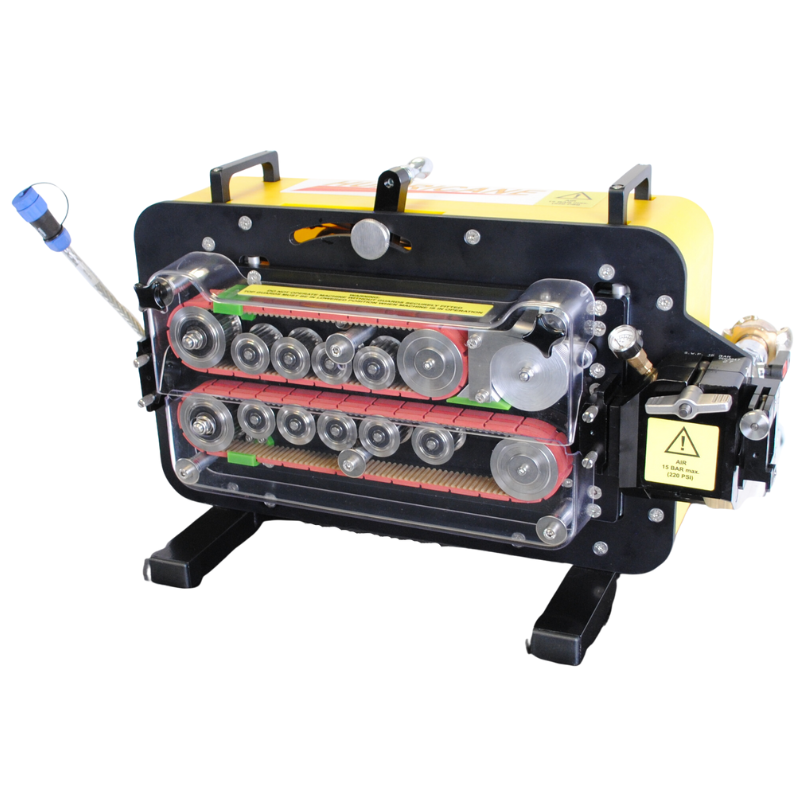

 Hurricane |

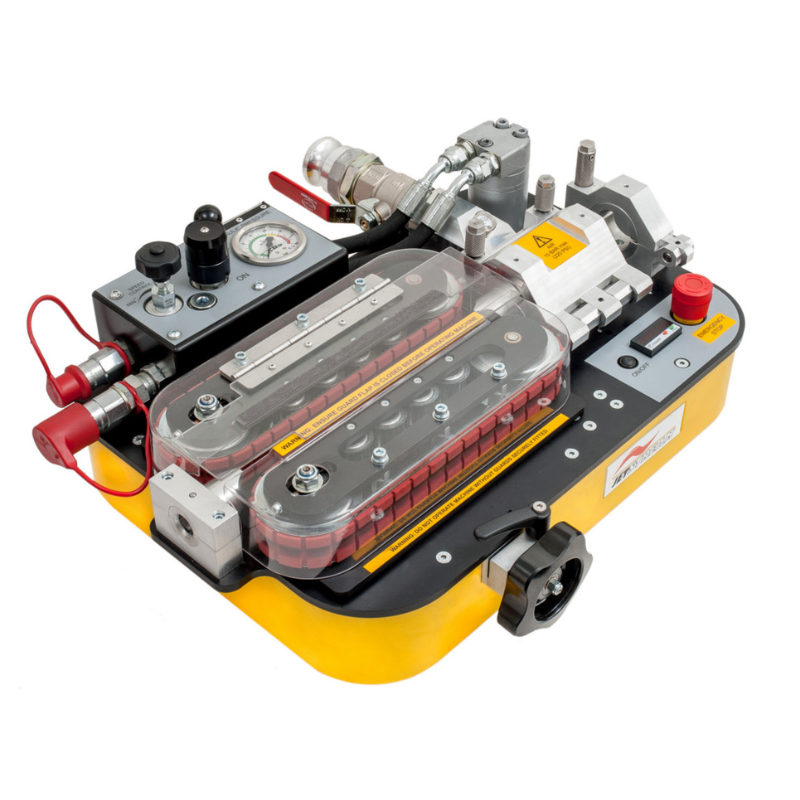

 Jetstream |

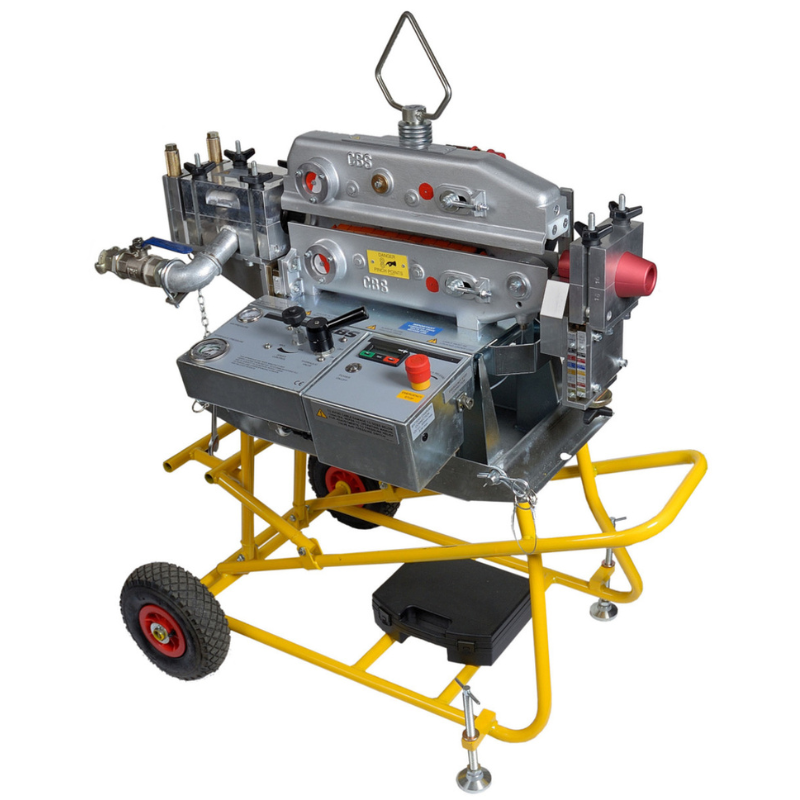

 Tornado |
|
|---|---|---|---|---|---|
| Fibre Diameter | 1.9-5mm | 2.5-11mm | 2.5-16mm | 4-20mm | 6-32mm |
| Duct Size (OD) | 3-12mm | 5-18mm | 5-25mm | 12-50mm | 12-63mm |
| Cable Speed (Adjustable) | 0-100m/min | 0-80m/min | 0-85m/min | 0-85m/min | 0-90m/min |
| Maximum Air Pressure | 15 bar 0.24m³ min | 15 bar 1m³ min | 15 bar 2m³ min | 15 bar 4-12m³ min | 12 bar 4-12³ min |
| Drive | Drive Wheels | Drive Belts | Drive Belts | Drive Belts | Drive Chains |
| Cable Safety | Buckle Protection* | Electronic Torque Control | Electronic Torque Control | Hydraulic Pressure Sensing | Hydraulic Pressure Sensing |
| Power | 24v DC*** | 110/220v AC | 110/220v AC | Hydraulic** | Hydraulic** |
| Length | 120mm | 460mm | 556mm | 620mm | 1070mm |
| Width | 184mm | 300mm | 310mm | 484mm | 690mm |
| Height | 166mm | 270mm | 352mm | 233mm | 1230mm |
| Weight | 3kg | 23kg | 24kg | 31kg | 103kg |
- *- Buckle protection only up to 1.6mm
- ** - Petrol hydraulic power pack supplied
- *** - Battery Kit optional/Mains PSU supplied
