Mini-CSP - 4F

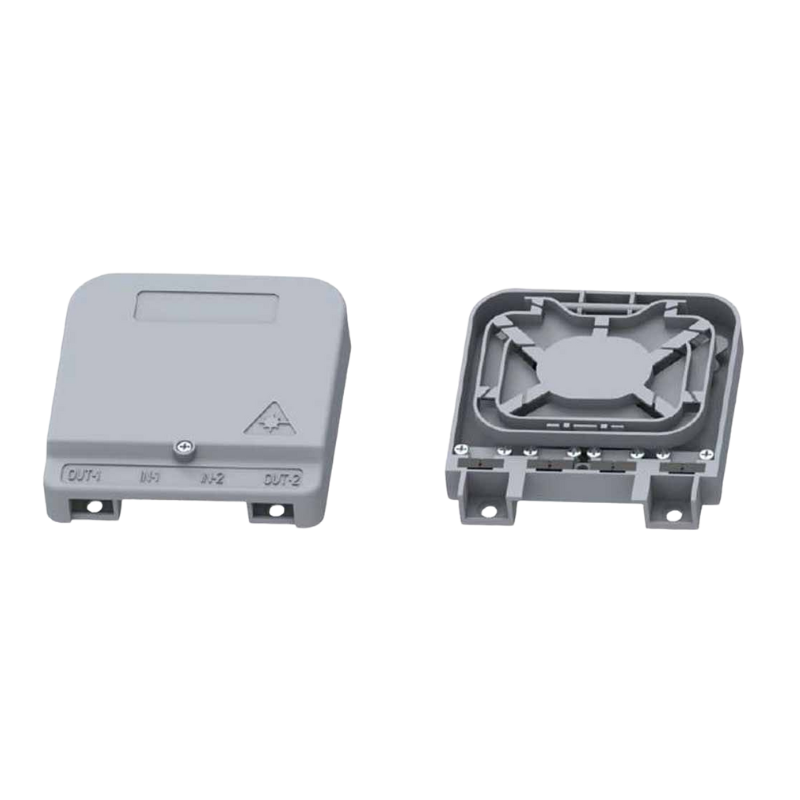

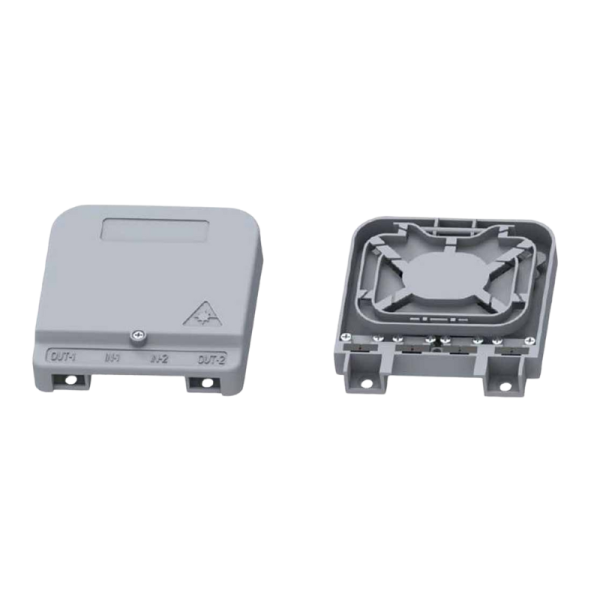

Telenco Mini-CSP 4FO – Customer Splice Point

The Telenco Mini-CSP 4FO is a compact outdoor customer splice point engineered for FTTP deployments. With its ultra-low profile design, it blends seamlessly into residential or commercial exteriors, making it ideal for both new-builds and retrofits. Built for discretion, durability, and easy maintenance, the Mini-CSP helps streamline installation, reduce rework, and minimise environmental impact.

Its robust construction ensures safe fibre management while offering flexible capacity for up to 4 fibre splices. Fully compatible with UK standards and capping systems, the Mini-CSP is a reliable choice for cost-effective FTTP rollouts.

Key Features & Benefits:

• Compact, rugged, and discreet design for minimal visual impact

• Easy installation and maintenance with secure cable management

• Reliable communication performance with flexible cable storage

• Cost and time-effective deployment, reducing installation rework

• Compatible with UK standards and capping accessories

• Outdoor enclosure with IP55 protection rating

Technical Specifications

• Enclosure Type: Outdoor

• Dimensions: 98.5 x 112 x 21 mm

• Material: ABS Grey

• IP Rating: IP55

• Cable Entry Points: 2 input / 2 output

• Bend Radius (min): 30 mm

• Connector Type: Splice only

• Splicing Capacity: 4 (up to 40 x 2.2 mm)

• Input Cable Diameter (max): 3–8 mm round, flat cable up to 8.5 mm

• Output Cable Diameter (max): 3–8 mm round, flat cable up to 8.5 mm

• Weight: 0.24 kg

• Packaging: 144 units per box (480 x 400 x 300 mm), 5184 per pallet
