Duct Rod Pusher

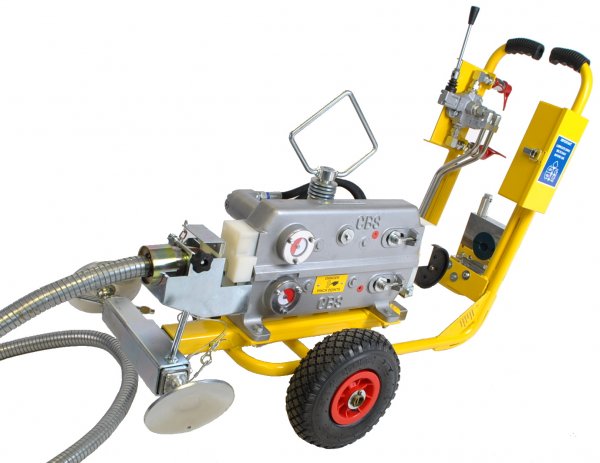

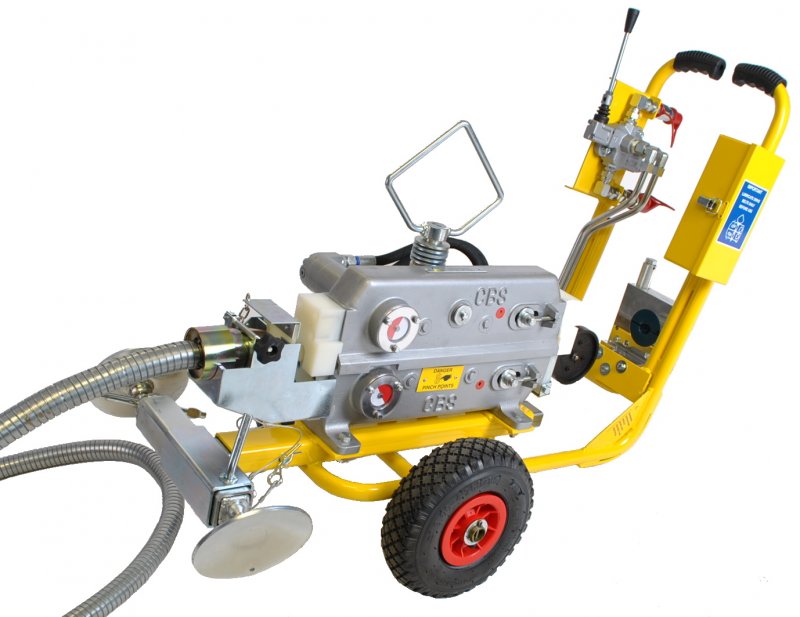

Duct Rod Pushers are designed to assist in rodding operations. The units are mounted on a sturdy, anti-corrosion-treated tubular steel frame, and fitted with gel-filled puncture proof tyres, with hydraulic controls mounted on the frame for ease of transportation. The pushers are fitted with a tilting extendable boom, and chamber clamp for use in underground structures.

Features

• Spring-loaded self-centring fail-safe operating lever.

• Measuring counter with reset lever.

• Front boom extending to 1 metre with angle facility dropping into an underground chamber.

• Extendable chamber clamp for attaching to sidewalls. Range 400 – 800mm.

• The angle of operation 0-45º.

• Lifting eye.

• Split pusher body which lifts and rotates to allow removal of duct rod.

• Anti-crush control to prevent damage to rod.

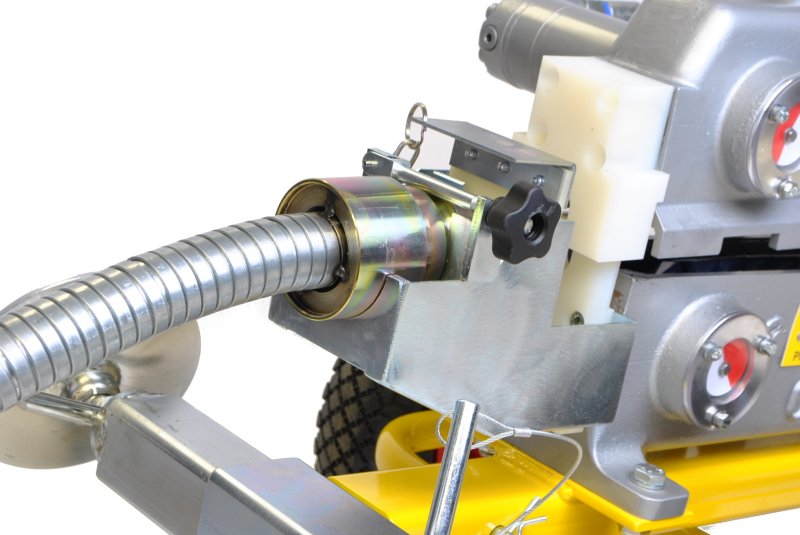

• Disc spring controlled screw clamp to engage drive belts onto the rod.

• Cast aluminium body.

• Moulded profiled drive belts

Specification

Diameter Range:                    14mm

Installation speed:                 0-30m/min*

Pushing/Pulling capacity:     220kgs at 60bar

Length:                                      1050mm

Width:                                        700mm

Height:                                       760mm

Weight:                                      53kg
