Compact Power Meter (-70 - +6dBm) + Visual Fault Locator (1mW)

 Call or Request Quote

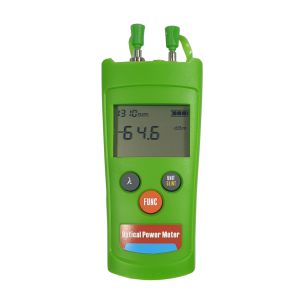

Compact handheld fibre optical multimeter is an integrated unit of optical power meter, visual fault locator and LED light.
  • Product Code
  • Q5022
  • Product Code
  • Q5022
Price (ex VAT):
Quote Request


Handheld optical multimeter is an integrated unit of optical power meter and visual fault locator with compact size and lightweight. It allows to perform optical power, loss measurements and fiber faults tracing visually, which is mainly used in FTTx networks and fiber network testing. This tester can perform closed-loop tests, and can also work individually.

  • Support both absolute optical power measurements and relative loss measurements
  • Auto-off after 10 minutes
  • High precision to 0.01dB


Measurement Range -70~+6dBm Calibrated Wavelengths 850/1300/1310/1490/1550/1625nm
Resolution 0.01dB Accuracy ±0.2dB
Linearity ±0.2dB VFL Output 1mW
OPM Connector 2.5mm Universal (SC/ST/FC) VFL Connector 2.5mm Universal (SC/ST/FC)
Cable Type MMF & SMF Auto-off Function Supported
Power Supply 2xAA Batteries Relative Humidity < 90% (non-condensing)
Operating Temperature -10 ~ +50 °C Storage Temperature -20 ~ +60 °C
Dimensions 4.1''x2''x1.3'' (105x52x34mm) Weight 100g
