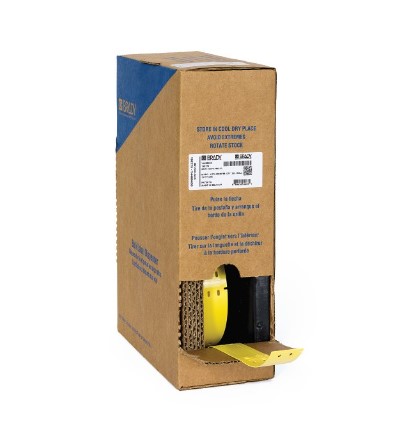

Brady Cable Tags 0HPU (Yellow) 25x75mm Roll of 250 BMP61

These B-7643 cable tags contain no added halogens and offer excellent fire safety characteristics combined with minimal smoke emission.
Product code: C5664-YL
£162.94 exc VAT
 In stock
See description
Request for quote




Key Characteristics:


  Article Number 196773
  Order Reference BM71-25x75-7643-YL
  Total Qty per Pack 250 Tag(s) / Roll
  QTY. per Row 1
  Application(s)  Data and telecommunications labelling, Wire and cable labelling
  Quantity 250
  Voice/Data Application Communication Cables
  Brand Brady®
  Qty per Roll 250
  Ribbon Series R6000HF
  Country of Origin  BE




  Size - Width (mm) 25.00 mm
  Size - Height (mm) 75.00 mm
  Core - Diameter (mm) 76.20 mm
  Hole Diameter (mm) 5.50 x 2.50 mm
  Printable Area Dimensions 25.00 mm W x 55.00 mm H
  Printable Area - Height (mm) 55.00 mm
  Printable Area - Width (mm) 25.00 mm
  Vertical Repeat (mm) 80.43 mm
  Web Width (mm) 26.97 mm
  Dimensions 25.00 mm (W) x 75.00 mm (H)


Material Characteristics:


  Brady Material Type Thermoplastic Polyether Polyurethane
  Material Properties Zero-halogen
  Thickness (mm) 0.45 mm
  Colour Yellow
  Max. Service Temp. °C 90 °C
  Min. Service Temp. °C -40 °C
  Finish Matt
  Resistance Properties Abrasion-resistant, Chemical-resistant, Humidity-resistant


Product Features:


  # of Holes 4
  Shape Rectangle
  Hole Shape Oval


Printing Specifications:


  Print Technology Thermal Transfer
  Max. Characters per Line 51
  Smart Cell Yes




  Printer Compatibility BMP61, BMP71, M611




  UNSPSC  55121503
  RoHS Compliance Status Compliant with Directive 2011/65/EU and 2015/863
  REACH SVHC Status The part does not contain an SVHC
  REACH Candidate List Date 16 July 2019
  Approval/Compliance Halogen free per IEC 61249-2-21 (2003-11), Adherence: SAE-AS81531-1998, Flame retardant: MIL-STD-202G
