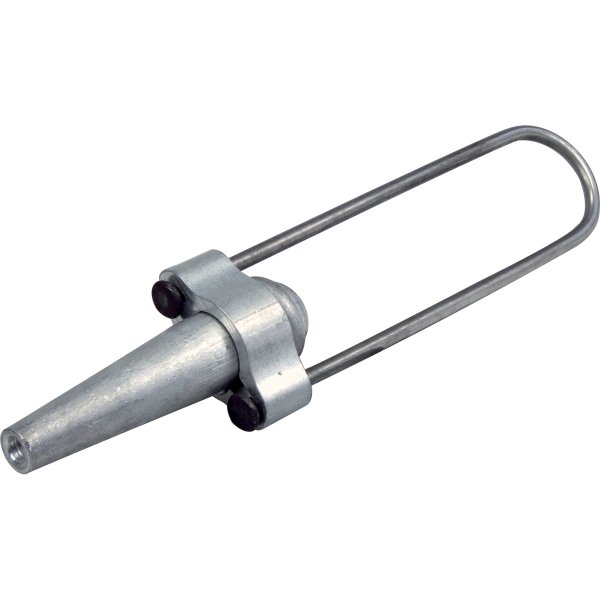

BWC25F Barrel clamp terminating stay wire Ø 2.5mm

The Telenco® BWC clamps are used to terminate figure-8 cables with steel messenger Ø 2.5mm. These barrel clamps are also reliable solutions for maintaining copper networks or for pole reinforcement installation jobs including single-strand bare wires. BWC barrel clamps are developed with an aluminium alloy conical body, a pair of wedges, a collar and a flexible stainless steel bail.

The removable bail will be attached onto pin-type steel plate brackets or Universal Pole Brackets. Stay wire or bare messenger insert at the narrow end of the clamp's body. Wire tension to be adjusted manually. Model: BWC25F Ø : 2.5mm For stay wire: 7x0.8 mm Breaking load: 450daN
