Telenco 5/35 FTTH R: Drop Clamp

The drop clamp 5/35 FTTH R enables simple or double anchoring of drop cables. Recommended for round cables with diameters between 2.5 and 5mm.
Product code: 09725
£1.25 exc VAT
(0)
 Call or Request Quote
See description
Request for quote

Description

Description:

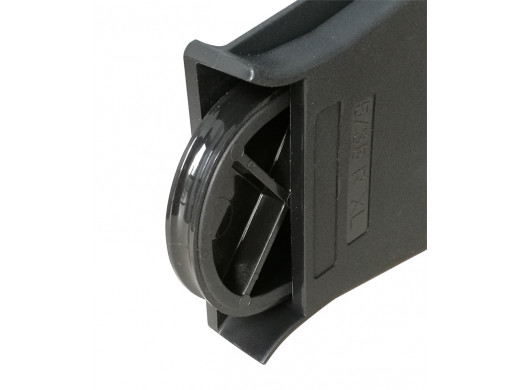

This one-piece thermoplastic clamp consists of a closed conical-shaped body, a round wedge with an integrated lanyard and an opening bail. Thanks to its ruggedly engineered bail, the Telenco® 5/35 FTTH R clamp is to be secured directly on pole fittings, with open or closed eyes, or on pole hardware with Ø 10mm minimum. Telenco® 5/35 FTTH R drop clamp is designed for round fibre optic cables with Ø 2.5 – 5 mm.



Features & Benefits:

  • Cost-effective, single-piece design
  • Simple and fast installation requiring no tools
  • Efficient cable grip by conical wedging
  • Manual adjustment of the lowest point of the cable by blocking the wedge on the remote position
  • Mounting on all pole line hardware with open or closed eye and min. Ø 10mm



This clamp is fully compliant with the following international standards:

  • NF EN C-20-540 (June 2002) Climatic
  • ageing test
  • ORANGE CCF/BI/BUBL Technical specification
  • (20 May 2010) Tensile test
  • ORANGE CCF/BI/BUBL (20 May 2010) & NF EN
  • 50289-3-13 (August 2003) Technical specification with insertion loss ˂ 0.2 dB Vibration test

Technical characteristics

  • Product model
  • 09725
  • Product code
  • 09725
